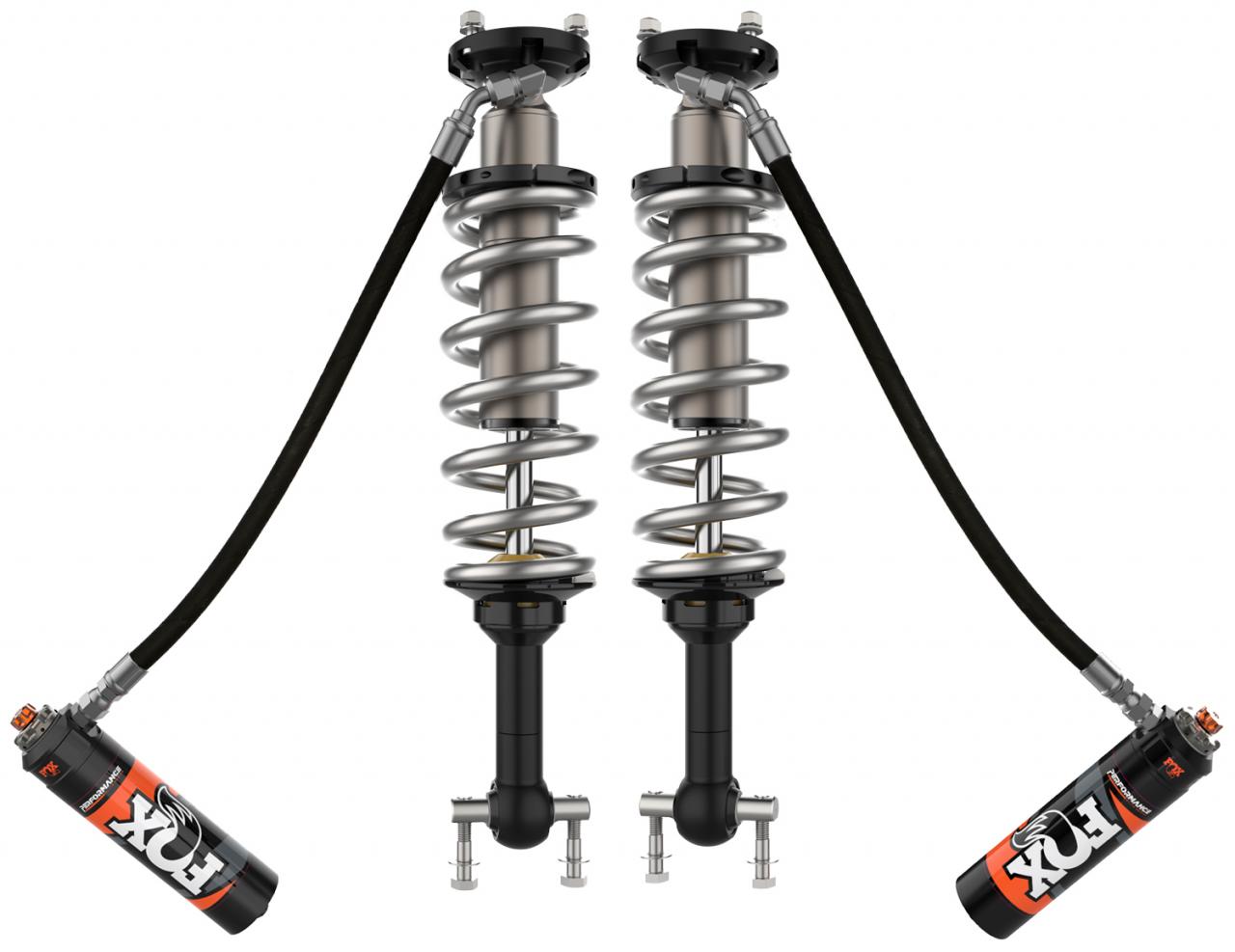

FOX Performance Elite 2.5 Body 2.5-3.5″ Front Lift Coilovers for 2021-2023 Ford Bronco 2Door

Description
FOX Performance Elite 2.5 Body 2.5-3.5″ Front Lift Coilovers for 2021-2023 Ford Bronco 2Door

FOX Performance Elite 2.5 Body 2.5-3.5 inches Front Lift Coilovers for 2021-2023 Ford Bronco 2Door

Part Number: 883-06-192

Summary: The FOX Performance Elite 2.5 Series provides a high-performance suspension solution for the Ford Bronco 2Door, engineered to maximize articulation and increase compliance in off-road environments. Featuring 2.5-inch aluminum bodies and external reservoirs, these coilovers are designed to efficiently dissipate heat and increase internal oil capacity for sustained performance. The inclusion of Dual Speed Compression (DSC) adjusters allows drivers to adapt the vehicle’s damping to specific loads and terrain, ensuring superior control and comfort both on the trail and during daily commutes.

Features

• External Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased oil capacity to ensure efficient heat dissipation during sustained off-road use.
• Dual Speed Compression (DSC) Adjuster: Integrated adjustment knobs provide user-tunable damping control to ensure the vehicle is optimized for specific loads, environments, and driving styles.
• 6061-T6 Aluminum Body: 2.5 inches Impact extruded and CNC machined hard-anodized construction provides high thermal conductivity to ensure resistance to rust and consistent performance over time.
• Progressive Springs: Application-specific custom springs provide extra clearance and movement to ensure the Bronco reaches its entire range of usable travel in jounce and droop positions.
• Hard Chrome Plated Shafts: 7/8 inches steel shafts provide high tensile strength to ensure durability under heavy impacts.

Technical Specifications

Fitment

• 2021-2023 Ford Bronco
• Note: Provides 2.5-3.5 inches Lift on Bronco with Sasquatch Package and 3.5-4.5 inches Lift on Bronco without Sasquatch Package (2-Door Only). Requires Upper Control Arm.

What’s Included

• Sold Individually
• Includes Remote Reservoir Mounting Hardware

Why Choose This Product?

• Engineering Advantage: The use of external reservoirs and 2.5-inch aluminum bodies significantly increases heat capacity compared to standard shocks, preventing performance fade during aggressive off-road operation.
• Performance Benefit: Drivers gain 20% more travel over stock components and the ability to fine-tune ride quality via DSC adjusters, resulting in a uniquely soft ride through rough terrain without sacrificing street stability.

Frequently Asked Questions

What does the Dual Speed Compression (DSC) adjuster do?
The DSC adjuster allows you to manually tune the shock’s compression damping for different loads and environments, providing versatility for both backcountry trails and commuting.

Are these coilovers compatible with the Sasquatch Package?
Yes, these coilovers provide 2.5-3.5 inches of lift on Bronco models equipped with the Sasquatch Package, and 3.5-4.5 inches of lift on non-Sasquatch models.

Is an Upper Control Arm required for installation?
Yes, the manufacturer explicitly states that an Upper Control Arm (UCA) is required for the installation of these front coilovers.
