ICON 2-4″ Lift Kit Stage 3 Tubular Suspension System for 2021-2023 Ford Bronco

SKU: K40003T
ICON 2-4" Lift Kit Stage 3 Tubular Suspension System for 2021-2022 Ford Bronco
ICON 2-4" Lift Kit Stage 3 Tubular Suspension System for 2021-2022 Ford Bronco

Description
ICON 2-4″ Lift Kit Stage 3 Tubular Suspension System for 2021-2023 Ford Bronco

ICON 2-4″ Lift Kit Stage 3 Tubular Suspension System for 2021, 2022, 2023 Ford Bronco

Part: K40003T

3-4″ Lift for Non-Sasquatch Broncos

2-3″ Lift for Sasquatch Broncos

CON Vehicle Dynamics is excited to announce our 21-UP Bronco Coilover Shocks and Stages 3 through 8 of our Complete Suspension Systems for Bronco! Aimed at improving on- and off-road performance and ride quality, all of these systems feature custom valved ICON 2.5-inch diameter coilover shocks with custom front coil springs and triple-rate rear coil springs yielding 2″ to 3″ of lift over stock, depending on model*. To accommodate the increased travel we are able to squeeze out of the Bronco’s suspension, all kits feature replacement front Upper Control Arms utilizing ICON’s patented Delta Joint PRO. Higher Stages feature additional shock technology and performance additions as well as links and suspension components which have been engineered to maximize performance.
These systems are designed to provide up to 11.5″ of front suspenion travel and 14″ of rear suspension travel when used with 35X12.50 tires. They may be safely used with 37″ and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars (non-Sasquatch equipped Broncos) must be removed to clear 35″ and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
*3-inch lift height pertains to Base, Big Bend, Outer Banks and Black Diamond trims WITHOUT Sasquatch. Badlands without Sasquatch will get approximately 2.5″ of lift. All trims WITH Sasquatch, including WildTrak and First Edition, will get approximately 2 inches of lift. Note that lift figures may vary depending on the weight of optional and aftermarket accessories and payload.

All of these ICON Coilovers and Suspension Systems feature:

  • Improved suspension performance and ride quality over stock
  • 14″ Rear Travel; 11.5″ Front Travel with 35″ tires
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers from 3-4″ of lift height (factory set at 2-3″)
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 shaft
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on system – no drilling, cutting, or welding necessary for install
  • Tubular or billet UCA for added strength, durability and an additional degree of caster for better drivability
  • UCAs feature the Delta Joint Pro with 90 degrees of total articulation.
  • Featuring a rear triple rate coil design
  • Rear coilovers are in a shaft up configuration for maximum travel.
Each of our Complete Suspension System stages are built around our precision engineered, race proven ICON shock technology, with increased features and performance with each higher stage. Here is a summary of each Stage, including the additional features each has over the previous stages.
STAGE 3: Maximum Travel
ICON Coilover Suspension Systems for Bronco start at Stage 3 and feature our precision-manufactured, custom valved Internal Reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. ICON coilover shocks are fully rebuildable. Our coil springs are custom engineered specifically for Bronco. To accommodate the increased travel afforded by the ICON Coilovers, Stage 3 comes with tubular or billet Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel possible.

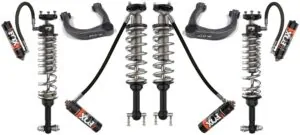

STAGE 3 Includes:

  • BRONCO FRONT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
  • BRONCO REAR 2.5 VS INTERNAL RESERVOIR COILOVER KIT
  • BRONCO TUBULAR or BILLET UCA KIT WITH DELTA JOINT PRO
