AirLift Rear Helper Spring Bellows for 1999-2004 Ford F-53 Motorhome Chassis – Replacement Double Bellows – 8in Diameter

Description
AirLift Rear Helper Spring Bellows for 1999-2004 Ford F-53 Motorhome Chassis – Replacement Double Bellows – 8in Diameter

AirLift Helper Spring Bellows for 1999-2004 Ford F-53 Motorhome Chassis

Part Number: 50229

Summary:

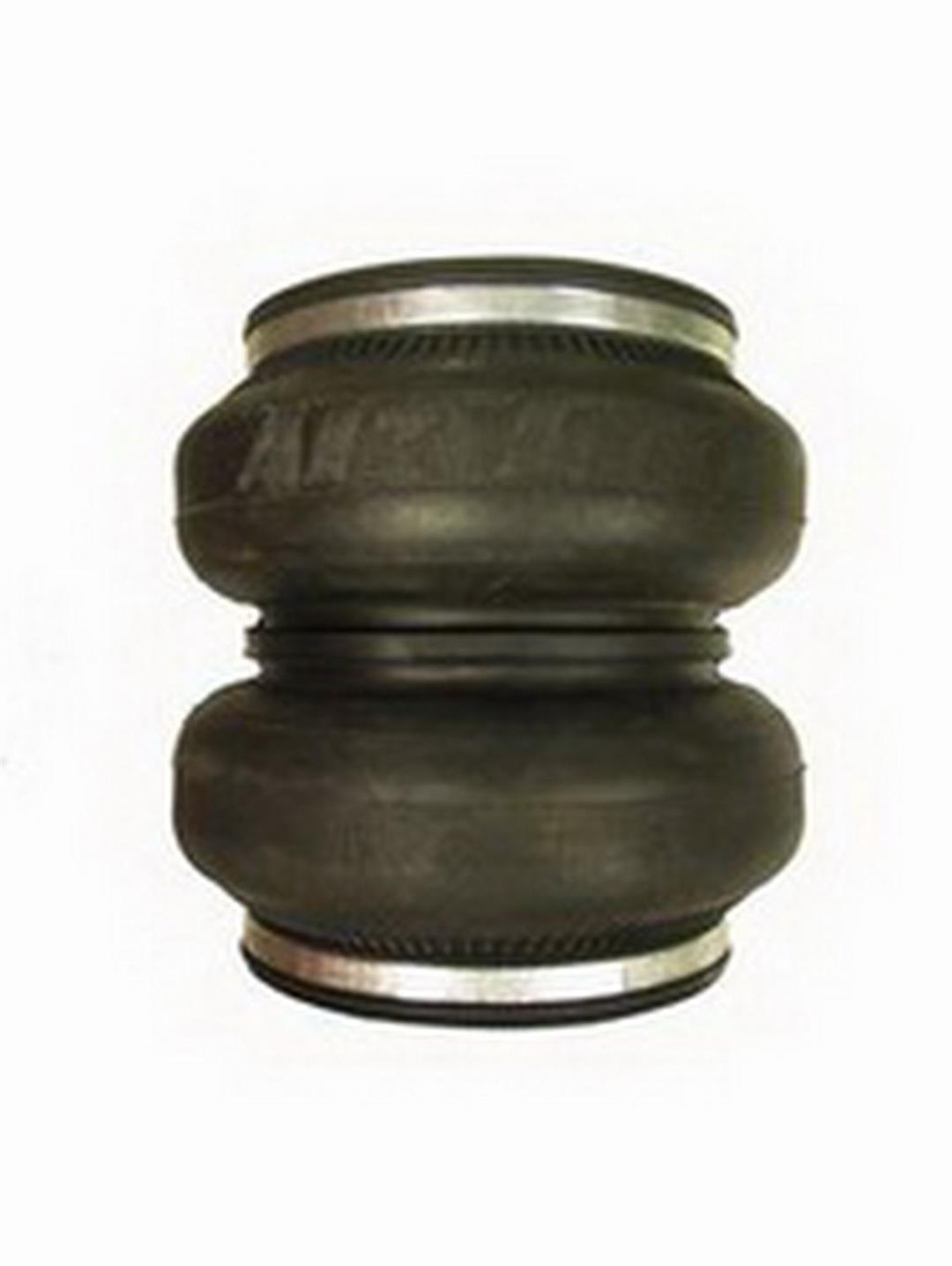

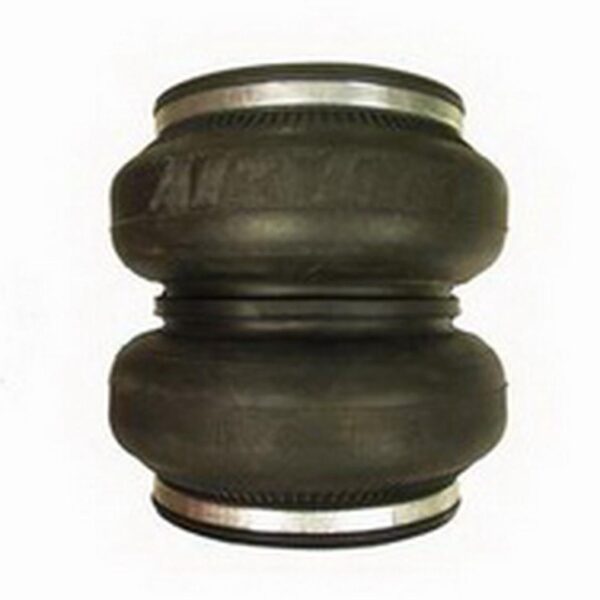

The AirLift 50229 is a double bellows air helper spring designed for the 1999-2004 Ford F-53 Motorhome Chassis. This component features an 8-inch diameter and provides a load capacity of 2,585 pounds at 100 PSI. It is intended for use as a replacement or supplemental load support component within an air suspension system.

This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.

Features

• Double Bellows Design: Features an air double bellows configuration with a 9-inch extended height and 3.3-inch compressed height.
• Load Capacity: Rated for 2,585 pounds of load capacity at 100 PSI inflation.
• Port and Mounting: Equipped with a 1/4-inch NPT inflation port and 3/8-inch-16 mounting threads on both side A and side B.

Technical Specifications

Fitment

• 1999-2004 Ford F-53 Motorhome Chassis

What’s Included

• Single AirLift Helper Spring Bellows (Part Number 50229)
• Hardware Not Included

Why This Product Exists

• Purpose: This product addresses the need for pneumatic load support in specific motorhome chassis applications.
• Application: It is used in the suspension system of 1999-2004 Ford F-53 Motorhome Chassis to support vertical loads via air pressure.

Frequently Asked Questions

Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.

Is this product intended for towing?
This product provides load support capacity; however, towing suitability depends on the complete vehicle configuration and manufacturer guidelines.

Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
