Bilstein B8 6112 0.4-2.4″ Front Lift Shocks for 2021-2025 Ford F-150

Description
Bilstein B8 6112 0.4-2.4″ Front Lift Shocks for 2021-2025 Ford F-150

Bilstein B8 6112 0.4-2.4″ Front Lift Shocks for 2021-2025 Ford F-150

Part: 47-323841

Notes:

• Provides 0.4-2.4″ Front Lift
• Without Continuously Controlled Damping

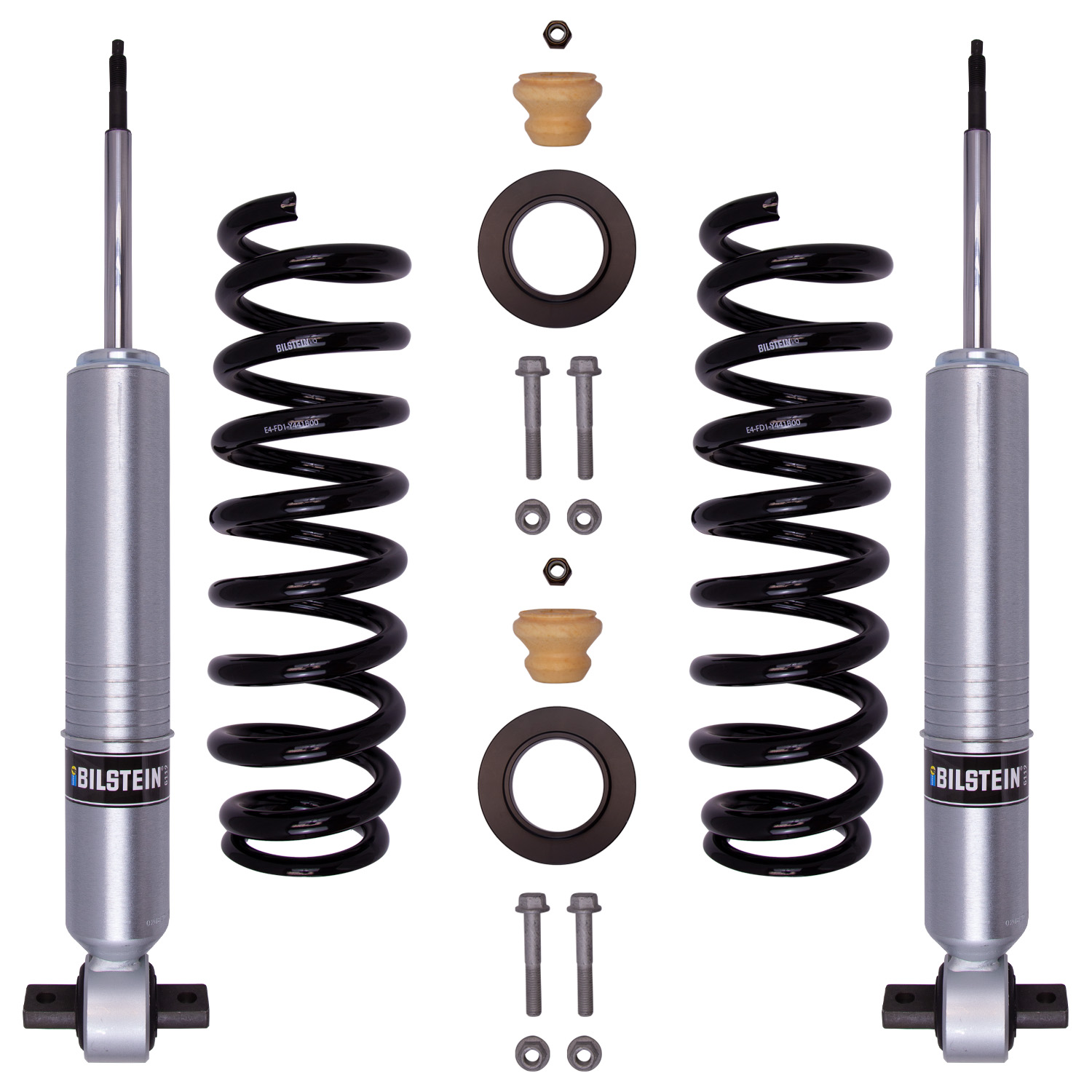

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Collapsed Length (in): 16.30

Extended Length (in): 22.22

Collapsed Length (mm): 414.0

Extended Length (mm): 564.3

Stroke/travel Length (in): 5.92

Internal Design: Monotube

Finish: Dampers: Zinc Plated/Springs: Black

Reservoir: No

Body Design: Snap Ring Grooved Body (Coilover)

Body Diameter (od): 2.65 in.

Piston Diameter: 60mm

Boot Included: No

Replacement Mounting Kit: B4-KT1-Z479A00

Spring Seat Included: Yes

Front Main Spring Rate (lbs/in): 500

Shaft Diameter: 18mm

Adjustable Damping: Non-Adjustable
