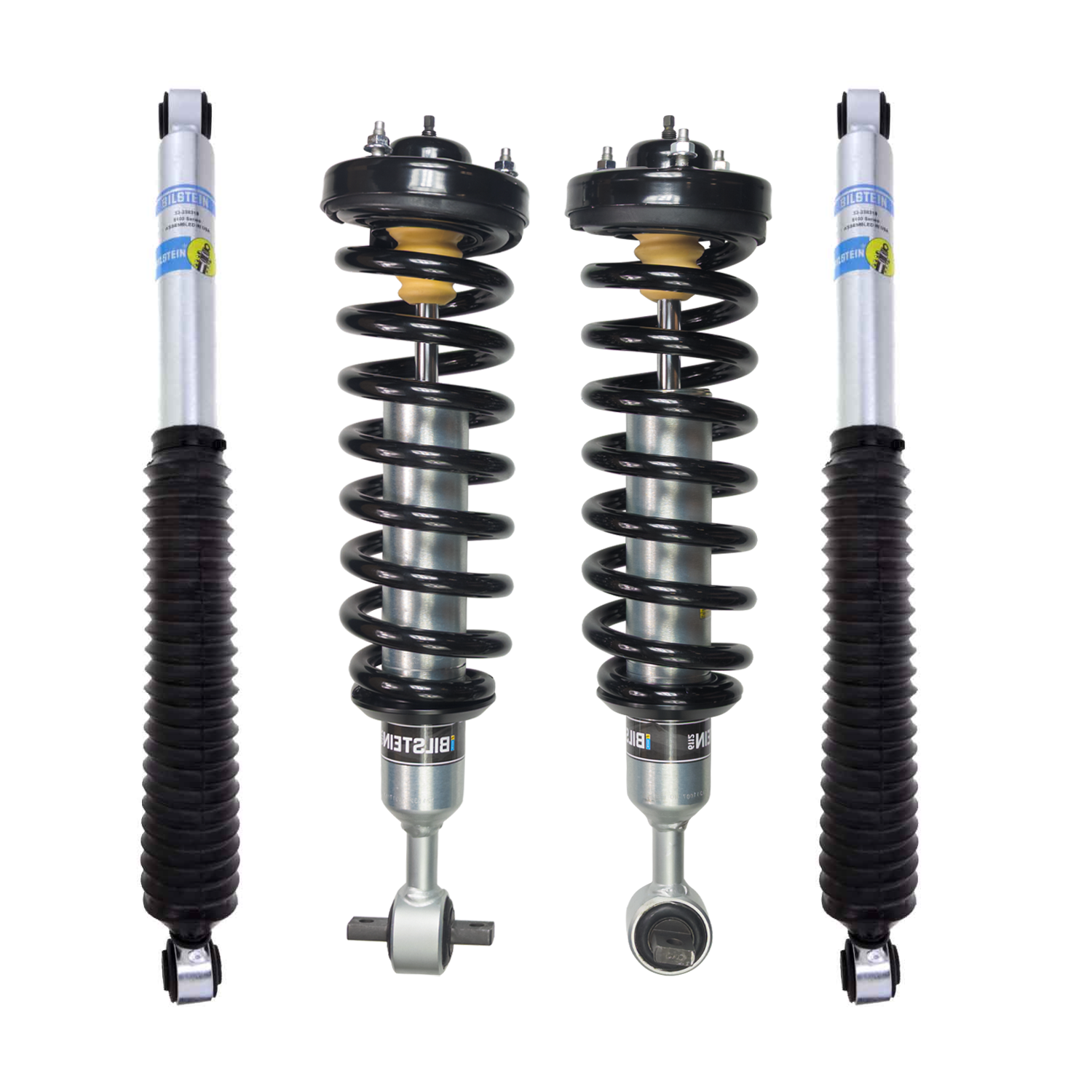

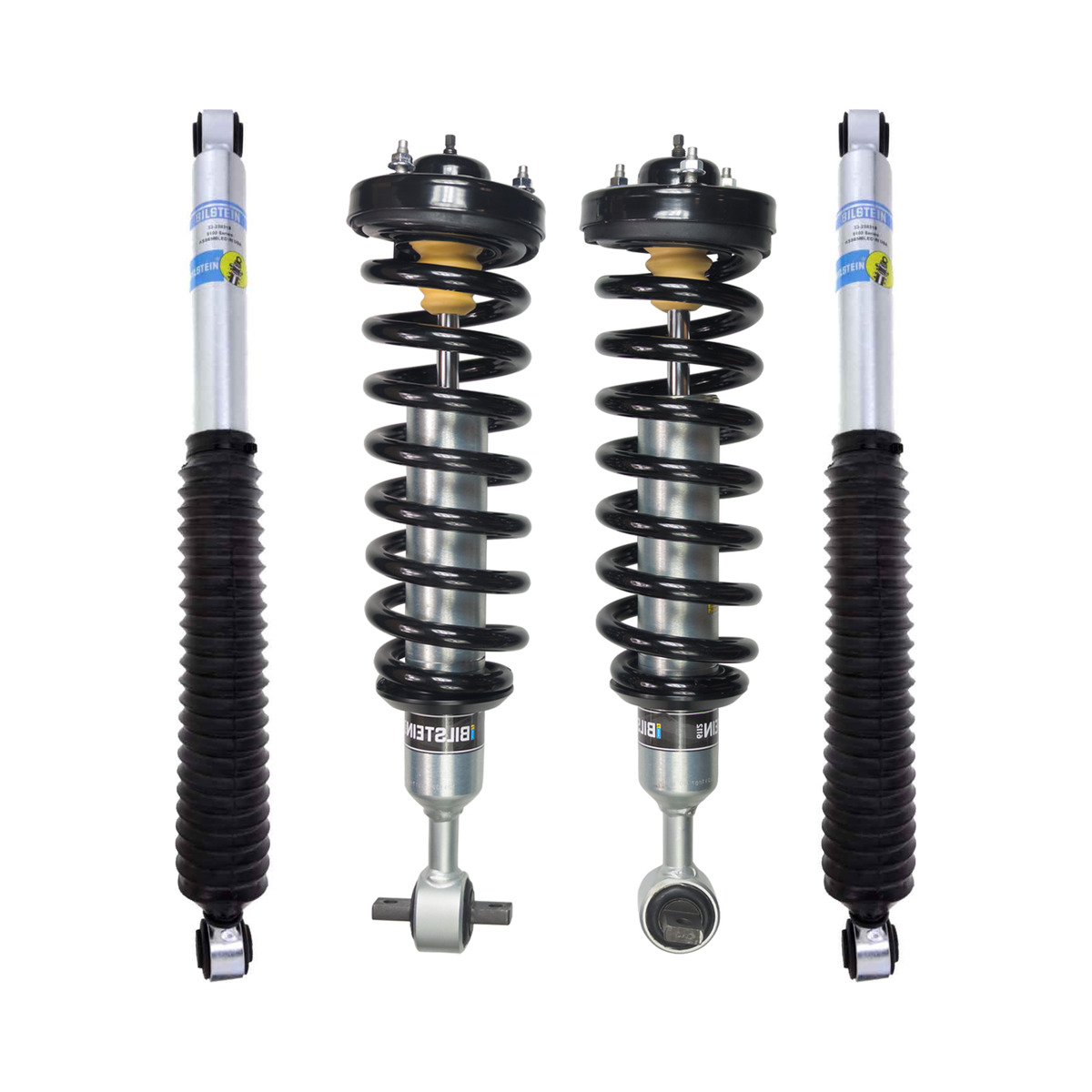

Bilstein 6112 0-2″ Front Lift Assembled Coilovers with Rear Shocks for 2015-2020 Ford F-150 4WD
Description
Bilstein 6112 0-2″ Front Lift Assembled Coilovers with Rear Shocks for 2015-2020 Ford F-150 4WD
Bilstein 6112 0-2″ Front Lift Assembled Coilovers + Rear Shocks – 2015, 2016, 2017, 2018, 2019, 2020 Ford F-150 4WD
Part #: 47-310995-ASBK (old: 47-256958)
What is included
- Front (pre-assembled coilovers):
- 2 x Bilstein B8 6112 60 mm monotube struts with matched cold-wound coil springs and billet spring seats
- Assembled with new top mounts, bushings, isolators, and hardware
- Adjustable snap-ring perch for approximately 0-2″ of front lift on this application
- Rear:
- 2 x Bilstein rear shocks matched for this kit
Why this kit
- More ground clearance and room for larger tires
- Big-body control – 60 mm digressive piston improves damping authority on and off road
- Pre-assembled convenience – no spring compressor needed
- Direct fit – engineered for the 2015-2020 F-150 4WD platform
Key specs
| Finish | Dampers: zinc plated – Springs: black |
|---|---|
| Reservoir | No |
| Body design | Snap ring grooved body (coilover) |
| Body diameter | 60 mm |
Fitment
- Ford F-150 4WD 2015, 2016, 2017, 2018, 2019, 2020
Install notes
- Select the desired front snap-ring position during assembly to target final ride height
- Alignment required after installation
- Re-torque suspension fasteners at ride height after initial road test
Bilstein B8 6112 leveling kits increase wheel travel and improve handling while maintaining daily driving comfort. Multiple snap-ring grooves allow ride height adjustment within the 0-2″ range on this application.
Be the first to review “Bilstein 6112 0-2″ Front Lift Assembled Coilovers with Rear Shocks for 2015-2020 Ford F-150 4WD”
Questions and answers of the customers
-
would i need UCAs for a 2" lift?
-
0 votesQ would i need UCAs for a 2" lift?A
UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
Looking to get a set of 6112 front 5100 rear 2018 GMC Sierra
-
0 votesQ Looking to get a set of 6112 front 5100 rear 2018 GMC SierraA If you have a Sierra 1500 4WD we can offer https://www.suspensionlifts.com/shop/chevy-gmc/silverado-1500/chevy-1500-14-18/lift-kits-chevy-1500-14-18/bilstein-6112-1-85-2-75-front-assembled-coilovers-with-rear-5100-shocks-for-2014-2018-chevy-silverado-1500-4wd/
Would I have to change the upper control arms if I went with a 1" lift?
-
0 votesQ Would I have to change the upper control arms if I went with a 1" lift?A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end. Most customers use factory UCAs for 1'' lift
Do you use ford OEM springs on the assembled units ?
-
0 votesQ Do you use ford OEM springs on the assembled units ?A This kit uses stock height springs If you need a lift, select it in the Coilover Assembly menu
Hello Do I’m wandering if you guys ship overseas “Saudi Arabia” ?!
-
0 votesQ Hello Do I’m wandering if you guys ship overseas “Saudi Arabia” ?!A Yes We ship to Saudi Arabia
