Bilstein 6112 0-2″ Front Lift Assembled Coilovers with B8 5160 or 5100 Rear Lift Shocks for 2015-2020 Ford F-150 4WD

Description
Bilstein 6112 0-2″ Front Lift Assembled Coilovers with B8 5160 or 5100 Rear Lift Shocks for 2015-2020 Ford F-150 4WD

Bilstein 6112 0–2″ Front Lift Assembled Coilovers with B8 5160 or 5100 Rear Lift Shocks for 2015–2020 Ford F-150 4WD

Part: 47-310995-ASB (replaces 47-256958)

Need a complete suspension package with upgraded upper control arms?

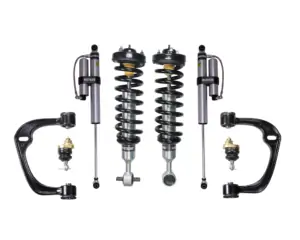

Bilstein 6112 0–2″ Front Lift Assembled Coilovers with B8 5160 or 5100 Rear Lift Shocks and SPC Forged Steel Adjustable UCAs for 2015–2019 Ford F-150 4WD

Bilstein 6112 Performance Suspension System for Ford F-150

The Bilstein B8 6112 suspension system is engineered for 2015–2020 Ford F-150 4WD trucks that demand improved ride control, increased front lift, and superior off-road capability without sacrificing on-road comfort. This kit pairs Bilstein’s flagship 6112 front coilover assemblies with your choice of rear Bilstein 5160 remote reservoir shocks or Bilstein 5100 non-reservoir shocks, allowing you to tailor the setup to your driving style and rear lift height.

Front coilovers are fully assembled using Bilstein’s matched components, providing a true bolt-on solution with no spring compressor required.

What’s Included

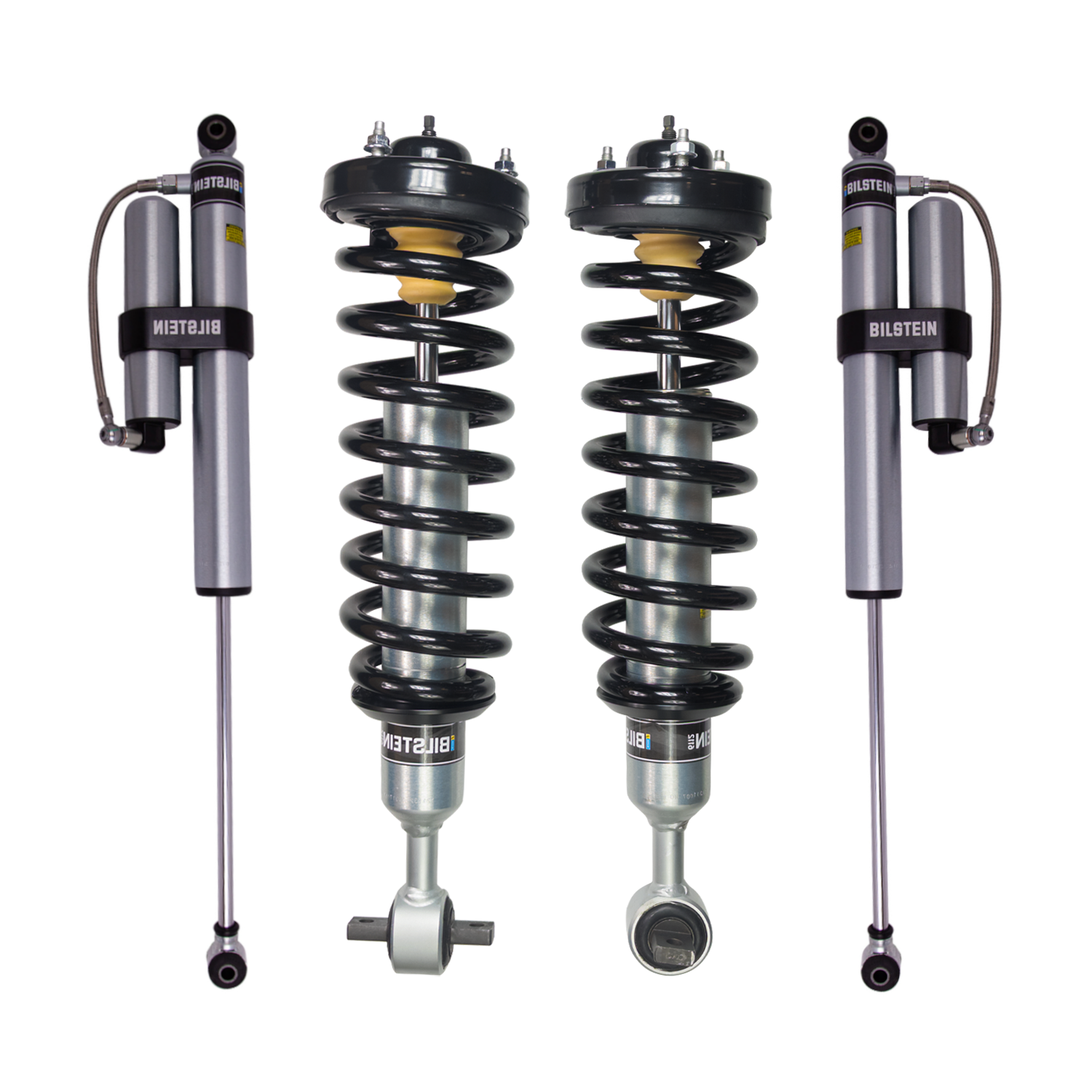

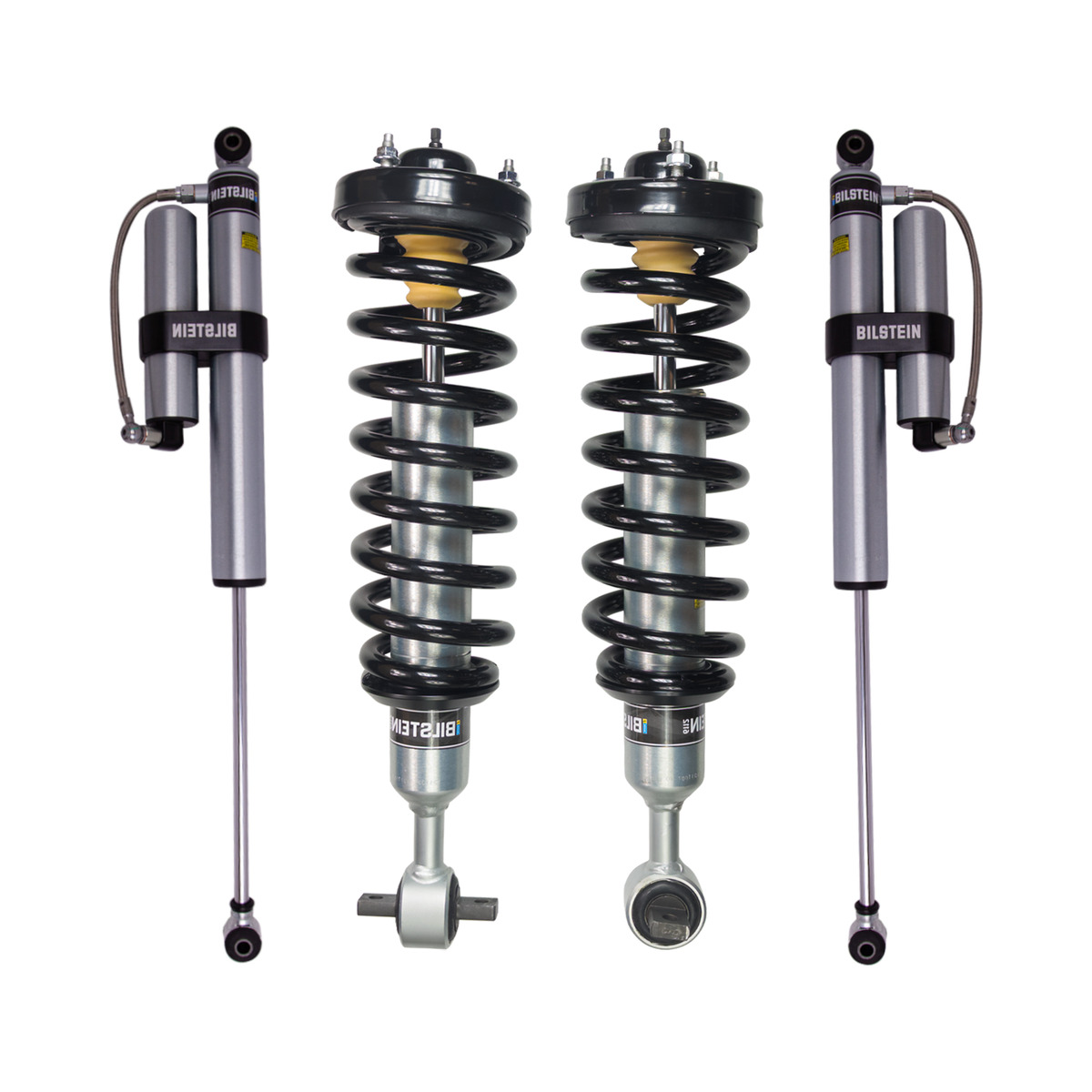

• (2) Bilstein B8 6112 front coilovers (assembled)
• (2) Rear Bilstein shocks – choice of B8 5160 or B8 5100
• All required Bilstein hardware for installation

Front Coilovers – Bilstein B8 6112

• Adjustable front lift: 0–2″ (up to ~2.75″ depending on application)
• Shock body: 60mm monotube design
• Piston: Large 60mm digressive piston for superior damping control
• Coils: Custom-matched cold-wound coil springs
• Spring seat: Billet aluminum
• Adjustment method: Multiple snap-ring grooves for precise ride height tuning
• Improved wheel travel, reduced brake dive, and enhanced stability
• Direct-fit replacement for factory front suspension

Rear Shock Options

Option 1: Bilstein B8 5160 Remote Reservoir Rear Shocks

Part Number: 25-311372

• Rear lift compatibility: 0–2″
• Remote reservoir for improved cooling and consistent damping
• Collapsed length: 17.52″ (445.0 mm)
• Extended length: 29.50″ (749.2 mm)
• Piston diameter: 46mm
• Zinc-plated, corrosion-resistant finish
• Billet reservoir clamp included
• Non-adjustable damping, application-tuned valving

Option 2: Bilstein B8 5100 Rear Shocks (Non-Reservoir)

For 0–1″ Rear Lift
Part Number: 33-253190

• Collapsed length: 17.52″ (445.0 mm)
• Extended length: 28.74″ (730.0 mm)
• 46mm monotube design
• Zinc-plated finish
• Non-adjustable damping

For 2″ Rear Lift
Part Number: 33-318950

• Collapsed length: 18.22″ (462.8 mm)
• Extended length: 29.47″ (748.5 mm)
• 46mm monotube design
• Zinc-plated finish
• Non-adjustable damping

Why Choose Bilstein 6112 for Your F-150

• Premium front coilover system with large 60mm piston technology
• Improved front lift, wheel travel, and off-road control
• Choice of rear shock configurations to match rear lift height
• Excellent balance of daily driving comfort and trail performance
• Proven Bilstein durability and engineering

Fitment

• Vehicle: Ford F-150
• Model years: 2015, 2016, 2017, 2018, 2019, 2020
• Drivetrain: 4WD

Installation & Alignment

• Front coilovers ship fully assembled
• A professional alignment is required after installation
• Additional supporting components (UCAs) may be recommended at higher lift heights

Download Installation Instructions for Bilstein 6112 0–2″ Front Lift Assembled Coilovers (2015–2020 Ford F-150 4WD)

This Bilstein 6112 suspension system is an ideal upgrade for F-150 owners who want premium front coilovers, configurable rear shock options, and a proven performance increase on and off the road.
