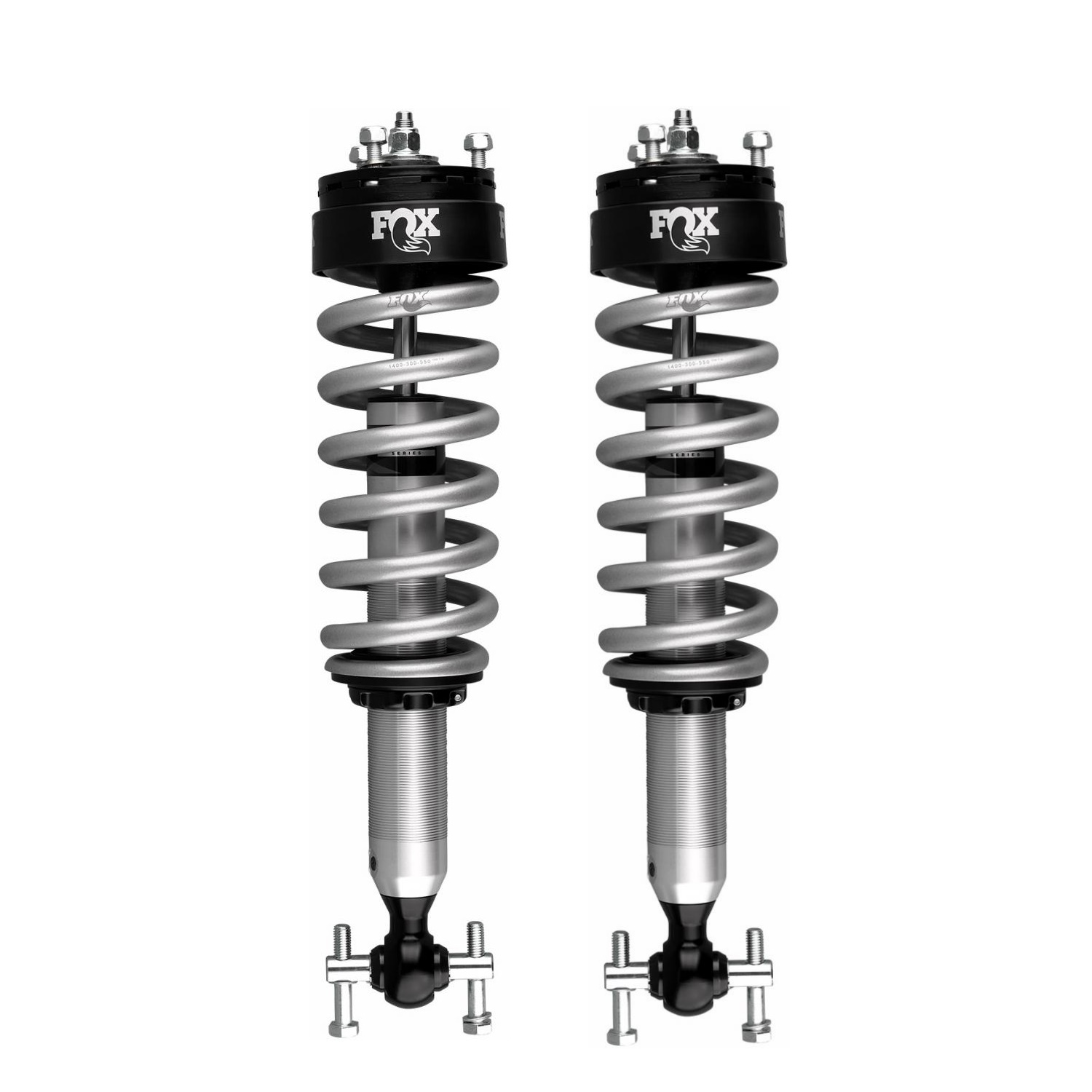

Fox 2.0 Perf Series 0-2″ Front Coilover IFP Shocks for 2021-2025 Ford F-150 4WD

Description
Fox 2.0 Perf Series 0-2″ Front Coilover IFP Shocks for 2021-2025 Ford F-150 4WD

Fox 2.0 Perf Series 0-2 inches Front Coilover IFP Shocks for 2021-2025 Ford F-150 4WD

Part Number: 2×985-02-146

Summary: The FOX Performance Series 2.0 coil-over system is a bolt-on solution specifically tuned for the 14th generation Ford F-150 4WD. Utilizing an Internal Floating Piston (IFP) design, these shocks are engineered to level or raise the vehicle’s front end by 0-2 inches without compromising ball joint reliability. This monotube upgrade replaces stock twin-tube shocks with impact-forged aluminum bodies to provide consistent damping and improved heat management during both on-road towing and off-road navigation.

Features

• Internal Floating Piston (IFP): The internal IFP mono-tube reservoir design provides separation between the shock fluid and high-pressure nitrogen gas to ensure consistent damping and precise handling across rough terrain.
• Aluminum Body: 2.0-inch impact extruded and CNC machined 6061-T6 clear anodized aluminum provides four times faster heat dissipation than stock steel shocks to ensure fade resistance.
• High-Flow Piston: A race-developed high-flow piston design coupled with application-specific valving provides a connected ride with less vehicle sway to ensure improved comfort and control.
• Hard Chrome Shaft: A 5/8 inches hard chrome plated heat-treated alloy steel shaft provides a durable surface for the redundant sealing pack to ensure long-term seal integrity.

Technical Specifications

Fitment

• 2021-2025 Ford F-150 4WD
• Note: Designed for 14th generation Ford F-150 models.

What’s Included

• Includes 2 Shocks
• Fully assembled coil-over units

Why Choose This Product?

• Engineering Advantage: The move from a stock twin-tube to a 2.0-inch aluminum monotube IFP design allows for larger pistons and significantly faster heat dissipation, maintaining performance where standard shocks often fade.
• Performance Benefit: Drivers experience a more controlled ride with reduced vehicle sway on the street and increased capacity to handle loads while towing or navigating off-road obstacles.

Frequently Asked Questions

Will these shocks lift my truck?
Yes, these coilovers are designed to level or raise the front of the 2021-2025 Ford F-150 4WD by 0 to 2 inches.

Are these shocks rebuildable?
Yes, according to the manufacturer, these FOX Performance Series shocks are fully serviceable and re-valveable.

What is the benefit of the aluminum body?
The impact-forged 6061-T6 aluminum body dissipates heat four times faster than conventional steel shocks and provides superior corrosion resistance.
