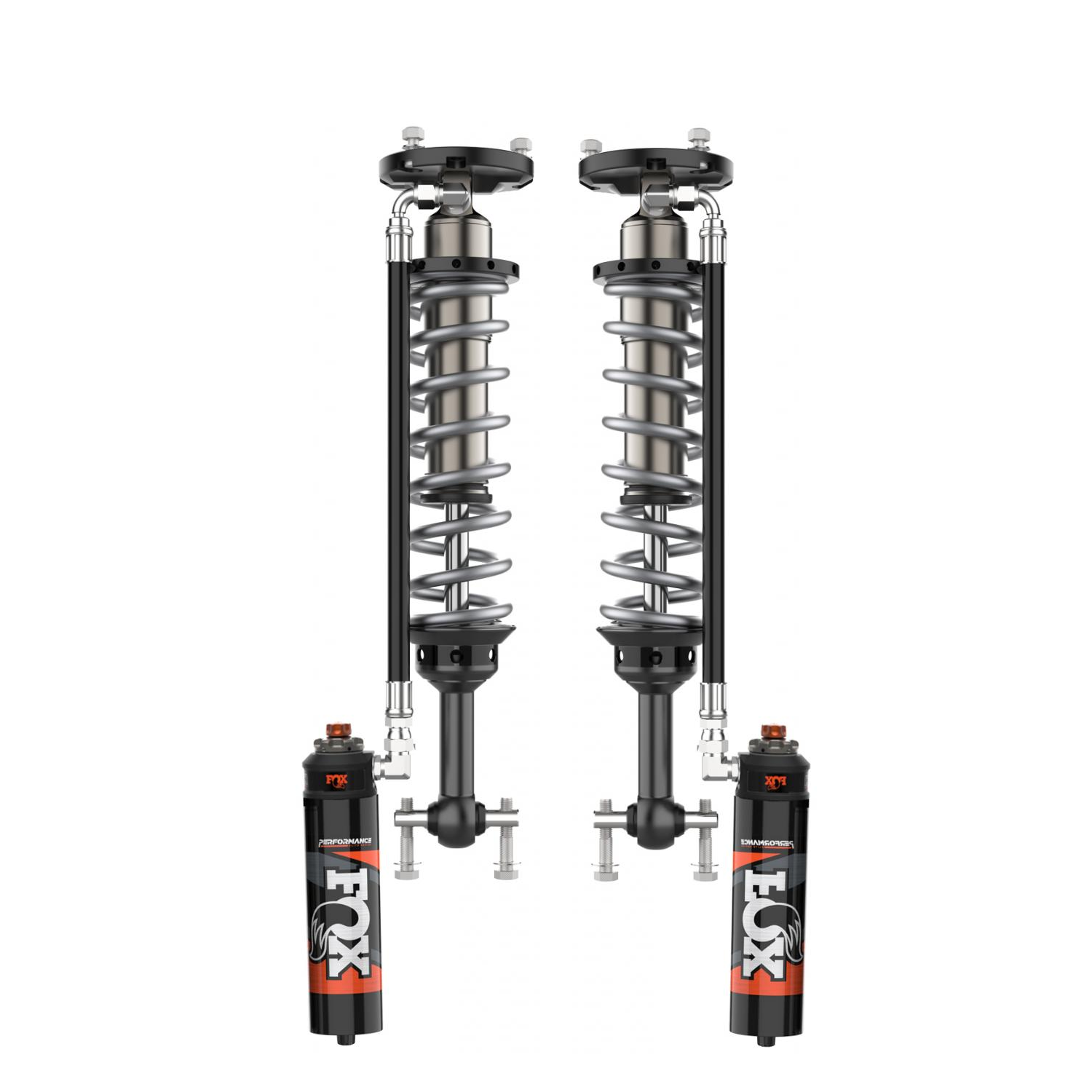

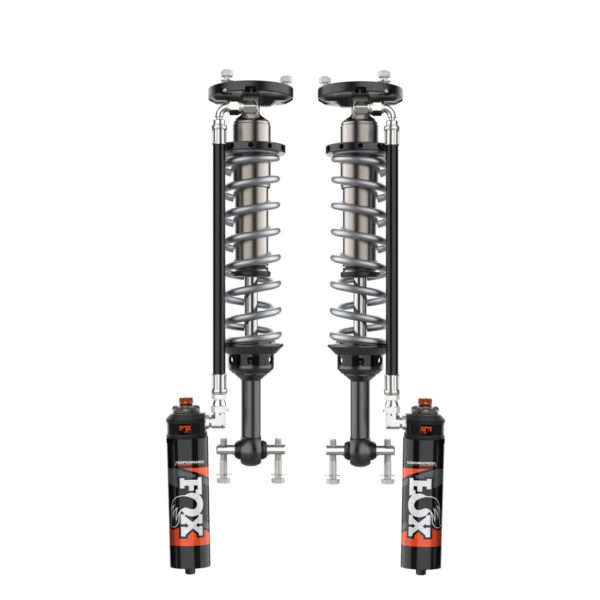

Fox 2.5 Perf Elite Series 1-2″ Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 RWD

Description
Fox 2.5 Perf Elite Series 1-2″ Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 RWD

Fox 2.5 Perf Elite Series 1-2 inches Front Lift Reservoir Adjustable Coilovers for 2015-2020 Ford F-150 RWD

Part Number: 883-06-189

Summary: The FOX Performance Elite Series 2.5 coilovers are engineered to enhance the 13th generation Ford F-150 RWD platform by providing a level ride height and increased suspension articulation. Featuring external reservoirs and Dual Speed Compression (DSC) adjusters, these shocks address the harshness associated with nitrogen ramp-up while allowing for precise user tuning. This system is designed to improve both off-road navigation and on-road manners, ensuring the vehicle remains comfortable and in control across various terrains.

Features

• Dual Speed Compression (DSC) Adjuster: The DSC adjuster provides high-flow piston management to ensure stability and adaptability for different loads and environments.
• External Reservoir: A 2.5-inch smooth bore seamless alloy reservoir increases oil capacity to provide cooler shock temperatures and consistent damping forces.
• Aluminum Body: The 2.5-inch impact extruded 6061-T6 aluminum body features Type III anodization to prevent corrosion and ensure long-term wear resistance.
• Hard Chrome-Plated Shafts: 7/8-inch steel shafts provide high-strength durability to ensure reliable operation during suspension cycling.
• Redundant Sealing Pack: A system including a main seal, wiper seal, and scraper seal provides maximum protection to ensure internal components remain free of contaminants.

Technical Specifications

Fitment

• 2015-2020 Ford F-150 RWD
• Note: Designed specifically for the 13th generation Ford F-150 platform. Adjusters are strategically mounted to eliminate interference with aggressive tires at full lock.

What’s Included

• Sold Individually
• External Reservoirs
• Application-specific springs

Why Choose This Product?

• Engineering Advantage: The use of Type III anodized 6061-T6 aluminum and external reservoirs allows for superior heat management and increased travel compared to standard shock designs.
• Performance Benefit: The Dual Speed Compression (DSC) adjusters allow drivers to quickly adapt the suspension to specific driving styles and terrain, resulting in a versatile ride that balances off-road capability with street comfort.

Frequently Asked Questions

What does the Dual Speed Compression (DSC) adjuster do?
The DSC adjuster allows you to quickly adapt your shocks for different loads, environments, and driving styles by managing stability through a high-flow piston.

Does this coilover help level the truck?
Yes, this product is designed to eliminate the vehicle’s forward rake and provide a level ride height for the Ford F-150 RWD.

What are the benefits of the external reservoir?
The external reservoir increases oil capacity and removes dead space from the shock body, which decreases harshness and results in cooler operating temperatures and more consistent damping.
