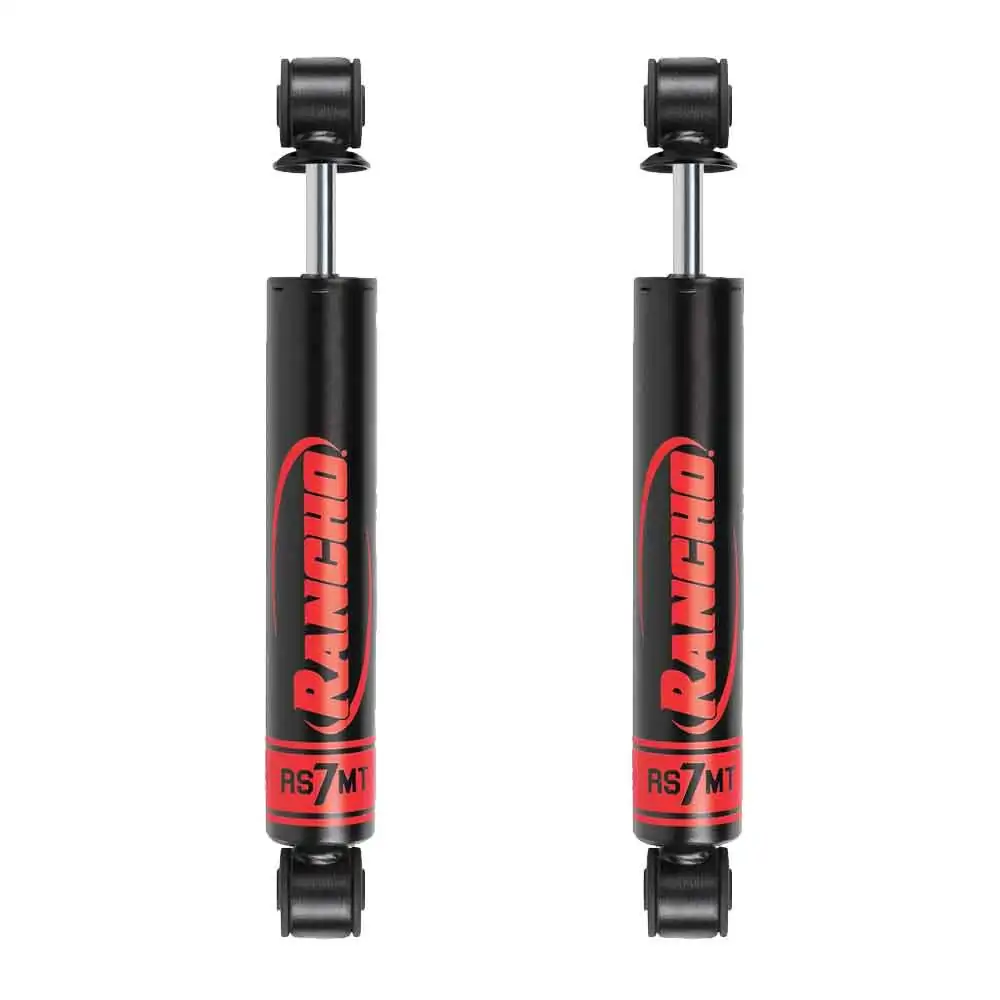

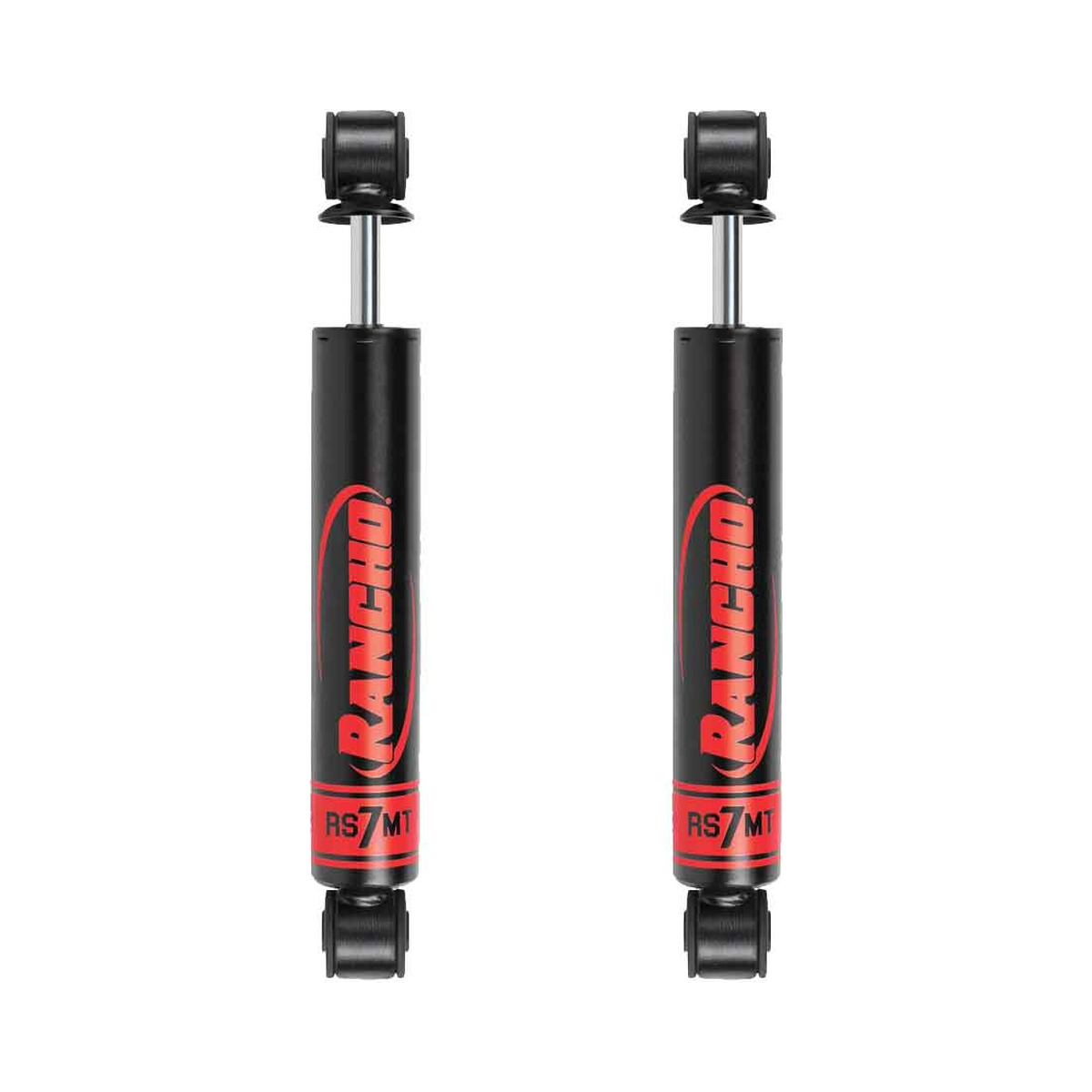

Rancho RS7MT 0″ Rear Lift Shocks for 2015-2020 Ford F-150 4WD

Description
Rancho RS7MT 0″ Rear Lift Shocks for 2015-2020 Ford F-150 4WD

Rancho RS7MT 0″ Rear Lift Shocks for 2015-2020 Ford F-150 4WD

Part Number: RS77316

Summary: The Rancho RS7MT monotube shock absorber is engineered for high-performance handling and rapid heat dissipation on the 2015-2020 Ford F-150. Utilizing a high-pressure nitrogen gas charge, these shocks provide the precise damping required for both highway stability and off-road control. The monotube design eliminates aeration and foaming, ensuring consistent performance even during aggressive driving or heavy hauling. Designed for stock height rear applications, they offer a direct-fit upgrade over factory dampers.

Features

• Monotube Construction: A 2.0-inch diameter body with a high-pressure nitrogen charge provides rapid response times to ensure maximum tire-to-road contact.
• Internal Floating Piston (IFP): The physical separation of the gas and oil provides zero aeration to ensure fade-free performance during high-frequency cycling.
• Hardened Nitro-Coated Rod: A 14mm piston rod with specialized coating provides superior corrosion resistance to ensure long-term seal integrity in harsh environments.
• Polyurethane Bushings: High-density mounting material provides reduced deflection to ensure crisp handling and improved road feedback.

Technical Specifications

Fitment

• 2015-2020 Ford F-150 4WD
• Note: Excluding Raptor models.

What’s Included

• Includes 2 Shocks (Pair)
• Required Mounting Hardware
• Protective Dust Boots

Why Choose This Product?

• Engineering Advantage: The RS7MT utilizes a specialized rounding-disk valving system that reacts instantly to terrain changes, outperforming standard twin-tube shocks.
• Performance Benefit: Drivers experience significantly reduced body roll and improved towing stability through superior motion control.

Related Products

RS5000X (Rear):
Rancho RS5000X 0" Rear Lift Shocks for 2015-2020 Ford F-150 4WD

RS5000X (Front):
Rancho RS5000X 0" Front Lift Shocks for 2015-2020 Ford F-150 4WD

Front Only (Same Series):
Rancho RS7MT 0" Front Lift Shocks for 2015-2020 Ford F-150 4WD

RS90000XL (Front):
Rancho RS90000XL 0" Front Lift Shocks for 2015-2020 Ford F-150 4WD

RS90000XL (Rear):
Rancho RS90000XL 0" Rear Lift Shocks for 2015-2020 Ford F-150 4WD

RS5000X (Kit):
Rancho RS5000X 0" Lift Shocks for 2015-2020 Ford F-150 4WD

RS90000XL (Kit):
Rancho RS90000XL 0" Lift Shocks for 2015-2020 Ford F-150 4WD

RS7MT (Kit):
Rancho RS7MT 0" Lift Shocks for 2015-2020 Ford F-150 4WD

Frequently Asked Questions

Will these shocks lift my Ford F-150?
No, these shocks are configured for 0″ of lift and are designed to replace factory-length rear shocks on 4WD models.

What is the benefit of the Monotube design over the factory shocks?
The monotube design features a larger piston and higher gas pressure, which dissipates heat faster and prevents the “fading” or softening feel that occurs with standard shocks during heavy use.

Are these compatible with the Ford Raptor?
No, these specific units are excluded from Raptor fitment due to different suspension geometry and travel requirements.
