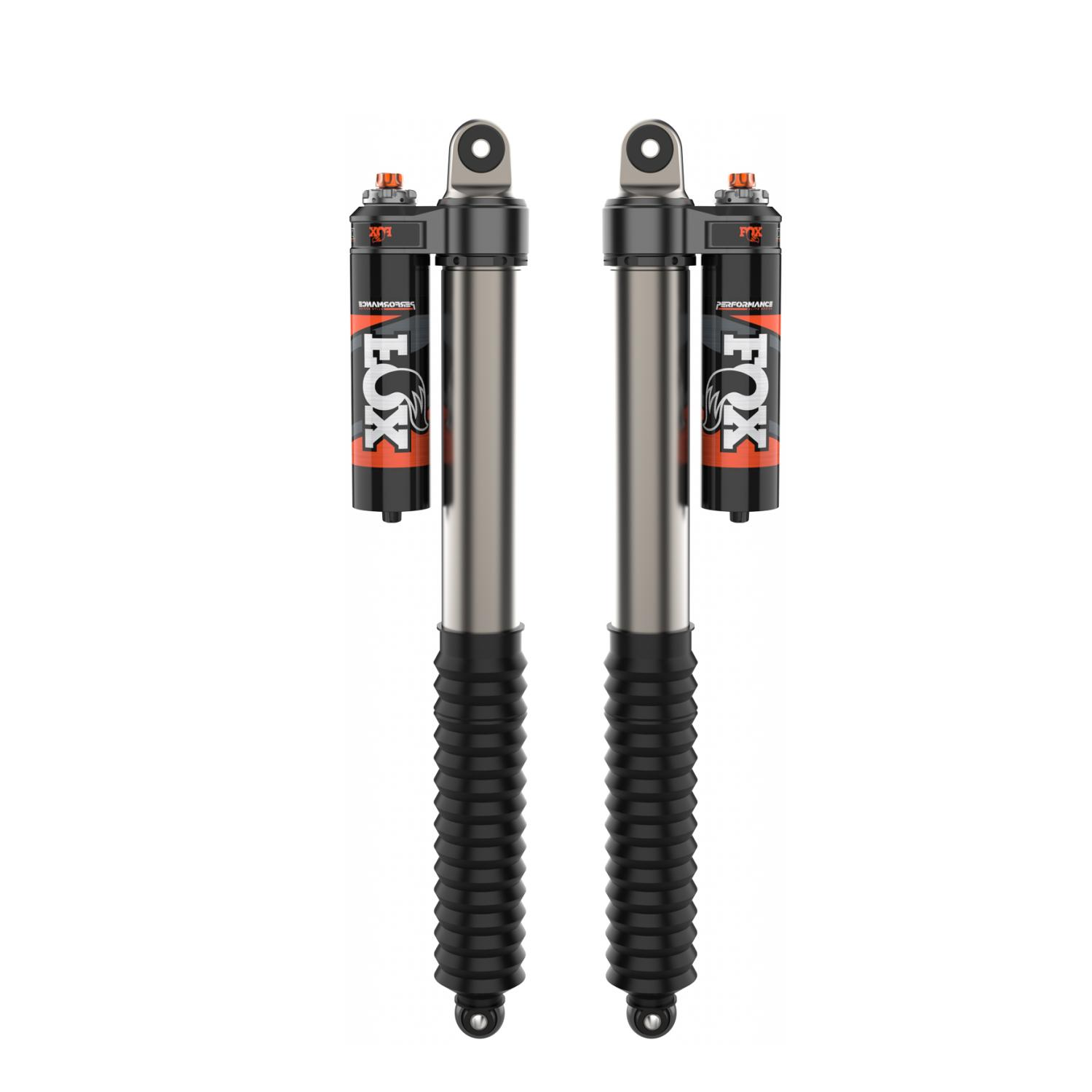

Fox 2.5 Perf Elite Series 0-1″ Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Description
Fox 2.5 Perf Elite Series 0-1″ Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Fox 2.5 Perf Elite Series 0-1 inches Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Part Number: 883-26-122

Summary: The FOX Performance Elite Series 2.5 shocks are engineered to enhance the 14th generation Ford F-150 platform by increasing suspension articulation and improving ride height. Featuring a Dual Speed Compression (DSC) adjuster, these shocks allow for rapid tuning to accommodate various loads and environments. The external reservoir design increases oil capacity and manages heat, ensuring consistent damping forces and a comfortable, controlled ride across diverse terrains.

Features

• Dual Speed Compression (DSC) Adjuster: External adjustment knobs provide user-tunable control over high and low-speed compression to ensure the vehicle is optimized for specific loads and driving styles.
• External Reservoir: Increased oil capacity provides cooler shock temperatures and removes dead space to ensure consistent damping forces and reduced nitrogen ramp-up harshness.
• Type III Anodized Aluminum Body: The 2.5-inch 6061-T6 impact extruded body provides corrosion resistance and durability to ensure long-term performance in harsh conditions.
• Hard Chrome-Plated Steel Shafts: 7/8 inches shafts provide high-strength durability to ensure the internal components are protected during off-road use.
• Redundant Sealing Pack System: A main seal, wiper seal, and scraper seal provide multi-layer protection to ensure internal fluid integrity.

Technical Specifications

Fitment

• 2021-2025 Ford F-150 2WD
• 2021-2025 Ford F-150 4WD
• Note: Shock length too short for Tremor.

What’s Included

• Sold Individually
• Rear shaft boot to protect against roost spray

Why Choose This Product?

• Engineering Advantage: The combination of a 2.5-inch aluminum body and DSC adjusters allows for superior heat management and precise manual tuning that is not possible with non-adjustable shocks.
• Performance Benefit: Drivers gain the versatility to navigate rough terrain with increased articulation while maintaining refined on-road manners and stability.

Frequently Asked Questions

How does the DSC adjuster work on these FOX shocks?
The Dual Speed Compression (DSC) adjuster allows you to manually tune the shock for load and terrain by adjusting high and low-speed compression damping via external knobs.

Will these shocks fit the Ford F-150 Tremor?
No, the provided fitment data indicates that the shock length is too short for the Tremor model.

What are the benefits of the external reservoir?
The external reservoir increases oil capacity and decreases harshness associated with nitrogen ramp-up, resulting in cooler temperatures and more consistent damping.
