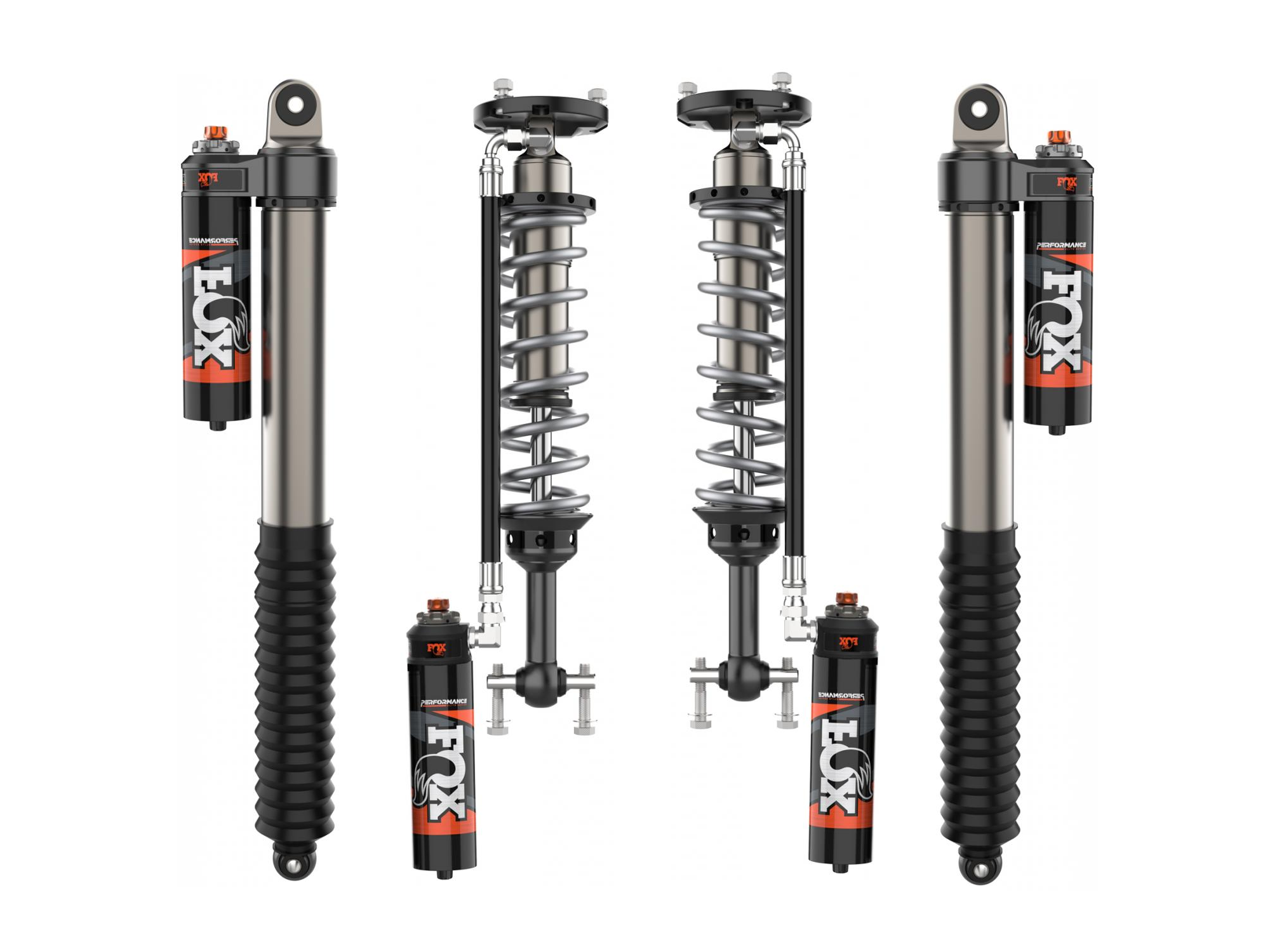

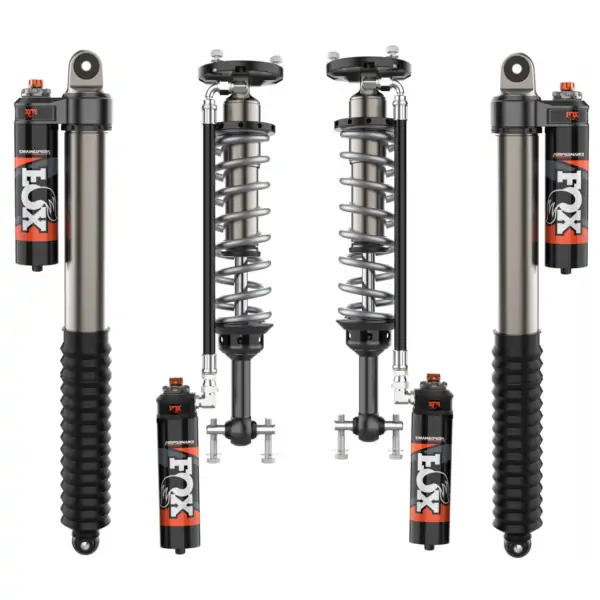

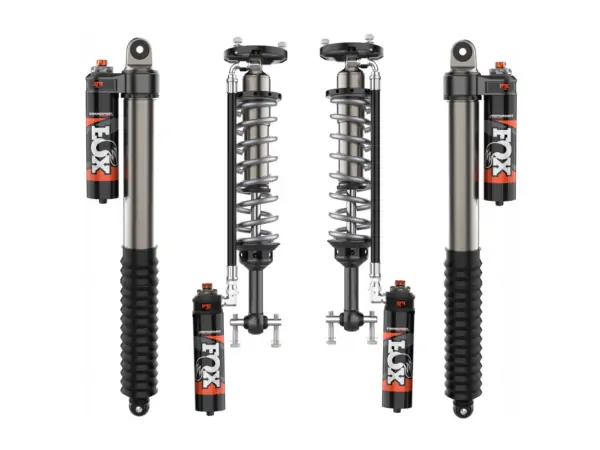

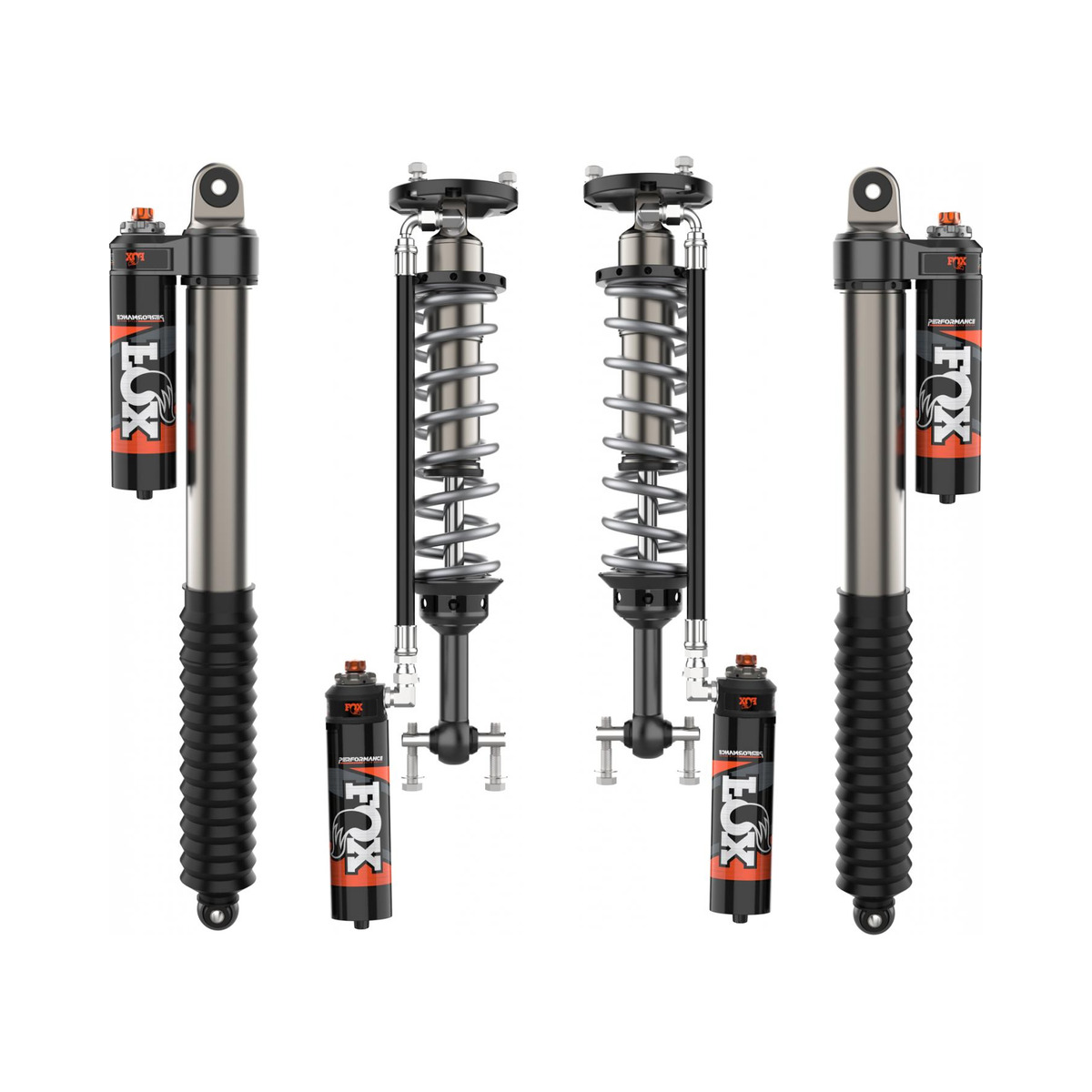

Fox 2.5 Perf Elite Series 1.5-2″ Front Lift Reservoir Adjustable Coilovers and 0-1″ Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 RWD

Description
Fox 2.5 Perf Elite Series 1.5-2″ Front Lift Reservoir Adjustable Coilovers and 0-1″ Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 RWD

Fox 2.5 Perf Elite Series 1.5-2 inches Front Lift Reservoir Adjustable Coilovers and 0-1 inches Rear Lift Reservoir Adjustable Shocks for 2021-2025 Ford F-150 RWD

Part Number: 883-06-200_883-26-122

Summary: The FOX Performance Elite Series 2.5 system is engineered to upgrade the 14th generation Ford F-150 by eliminating factory rake and increasing suspension articulation. Utilizing 2.5-inch aluminum bodies with external reservoirs, these shocks manage heat and nitrogen ramp-up for consistent damping during demanding use. Equipped with Dual Speed Compression (DSC) adjusters, this kit allows drivers to fine-tune their suspension for varying loads and terrain, ensuring a balance between off-road versatility and refined on-road manners.

Features

• Dual Speed Compression (DSC) Adjuster: External adjustment knobs provide manual tuning for high and low-speed compression to ensure stability across all types of terrain.
• External Reservoir: Increased oil capacity removes dead space from the shock body to provide cooler operating temperatures and more travel.
• Aluminum Body: 2.5-inch 6061-T6 impact extruded aluminum with Type III anodization provides a corrosion-resistant surface to ensure long-term durability and wear resistance.
• Hard Chrome-Plated Steel Shafts: 7/8 inches shafts provide high-strength support to ensure the high-flow piston manages damping forces effectively.
• Redundant Sealing Pack: A system including a main seal, wiper seal, and scraper seal provides multiple layers of protection to ensure internal components remain free of contaminants.

Technical Specifications

Fitment

• 2021-2025 Ford F-150 RWD
• Note: Front lift height 1.5-2 inches; Rear lift height 0-1 inches.

What’s Included

• Includes Full Set (See Below)
• 2.5 Performance Elite Series Front Coilovers
• 2.5 Performance Elite Series Rear Shocks
• External Reservoirs with DSC Adjusters
• Rear shaft boots

Why Choose This Product?

• Engineering Advantage: The combination of 2.5-inch Type III anodized aluminum bodies and external reservoirs provides superior heat management and increased oil capacity compared to standard shock designs.
• Performance Benefit: The DSC adjusters allow the driver to quickly adapt the vehicle for different environments or cargo loads, resulting in improved control and comfort both on and off the road.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to manually tune the shocks for load and driving style by managing stability through high-flow pistons.

How does the reservoir improve performance?
The external reservoir increases oil capacity and decreases the harshness associated with nitrogen ramp-up, resulting in cooler temperatures and consistent damping.

Are these shocks protected against corrosion?
Yes, the 6061-T6 aluminum bodies feature Type III anodization to prevent corrosion and wear in various environments.
