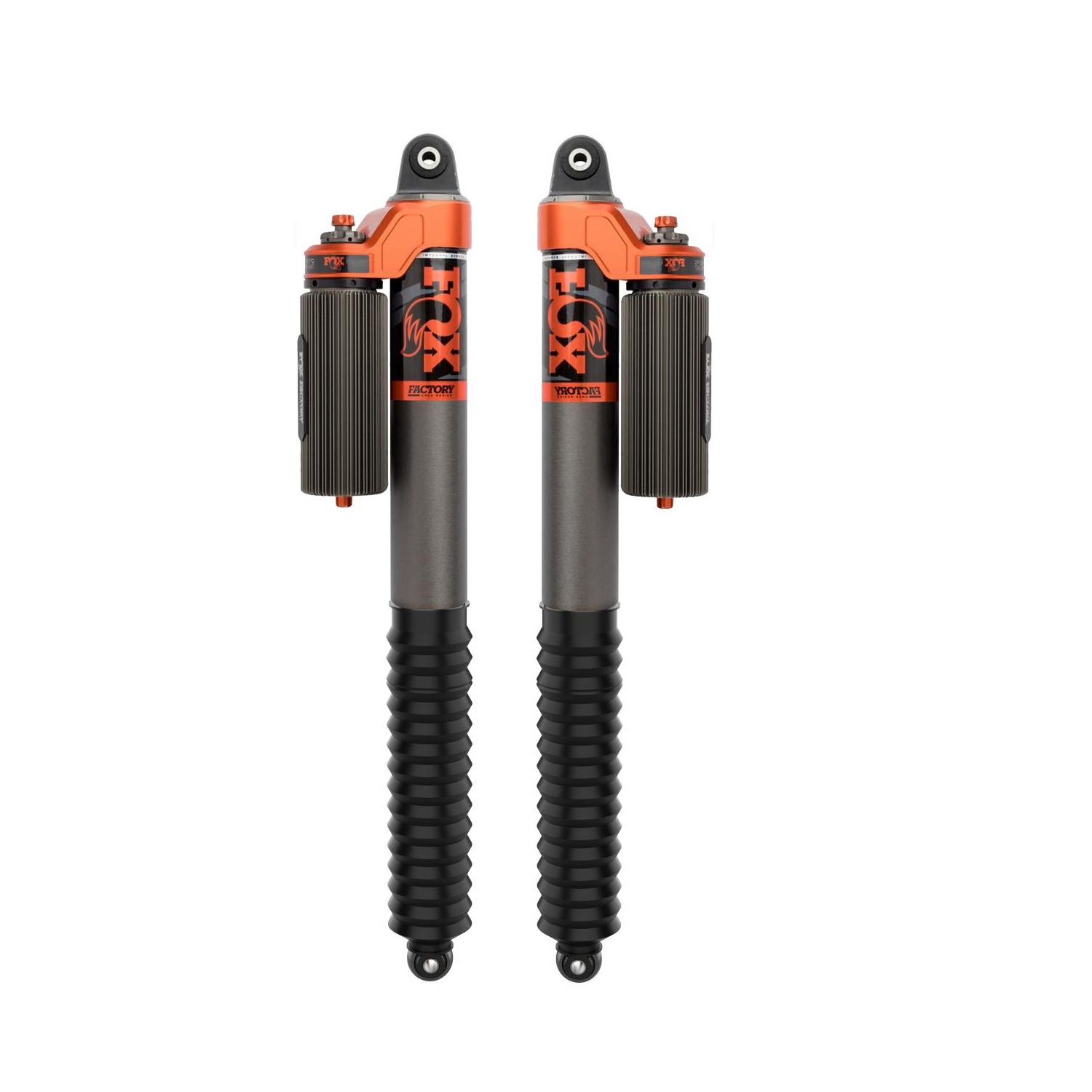

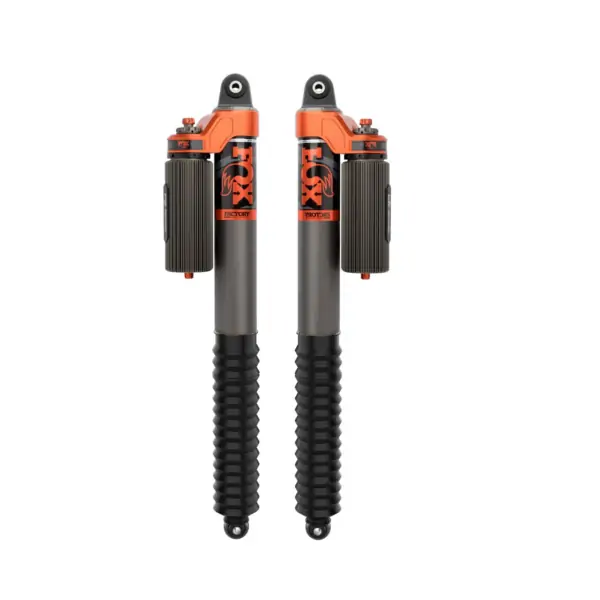

Fox Factory Race Series 3.0 Internal Bypass 0-1″ Rear Lift Piggyback Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Description
Fox Factory Race Series 3.0 Internal Bypass 0-1″ Rear Lift Piggyback Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Fox Factory Race Series 3.0 Internal Bypass 0-1 inches Rear Lift Piggyback Reservoir Adjustable Shocks for 2021-2025 Ford F-150 2WD/4WD

Part Number: 883-26-121

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks are engineered for the 14th generation Ford F-150 to deliver high-speed performance in a bolt-on package. Utilizing patented Internal Bypass technology, these shocks provide position-sensitive damping that adapts to terrain by allowing fluid to bypass the main piston in the ride zone and forcing it through the piston during more aggressive travel. This design combined with a finned piggyback reservoir ensures maximum heat dissipation and consistent damping during sustained off-road operation.

Features

• Internal Bypass Technology: Patented position-sensitive damping provides multiple zones of control to ensure a comfortable ride with progressive force to prevent bottom-outs and harsh top-outs.
• Dual Speed Compression (DSC): External DSC adjusters provide user-tunable control for load and driving style to ensure versatility across different environments.
• Recirculating Reservoir Bridge: A checked-port bridge circulates fluid between the 3-inch aluminum body and the finned external reservoir to ensure the system stays cool under high-speed use.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded 6061-T6 aluminum with Type III anodization provides superior corrosion resistance to ensure long-term durability.
• Hardened Shafts: 7/8 inches stainless steel shafts combined with rear shaft guards provide protection against roost and debris to ensure seal integrity.

Technical Specifications

Fitment

• 2021-2025 Ford F-150 2WD/4WD
• Note: Shock length too short for Tremor.

What’s Included

• Sold Individually
• Includes Rear Shaft Guards

Why Choose This Product?

• Engineering Advantage: The use of Internal Bypass technology allows the shock to be position-sensitive, meaning it can be soft in the ride zone for comfort while remaining incredibly firm at the ends of the stroke to handle hard impacts.
• Performance Benefit: Drivers gain the confidence to navigate rugged terrain at higher speeds without sacrificing street driveability, thanks to the cooling efficiency of the recirculating finned reservoir and the tunability of the DSC adjusters.

Frequently Asked Questions

What is the benefit of the Internal Bypass design?
The patented Internal Bypass technology allows fluid to bypass the main piston through bleed holes in the normal ride zone for comfort, but forces fluid through the piston as the shock extends further to control bottoming and topping out.

Can I adjust these shocks for different loads?
Yes, these shocks feature Dual Speed Compression (DSC) adjusters that allow you to manually tune the damping based on your specific load, environment, and driving style.

Will these shocks fit the Ford F-150 Tremor?
No, the fitment data explicitly states that the shock length for this part number is too short for Tremor models.
