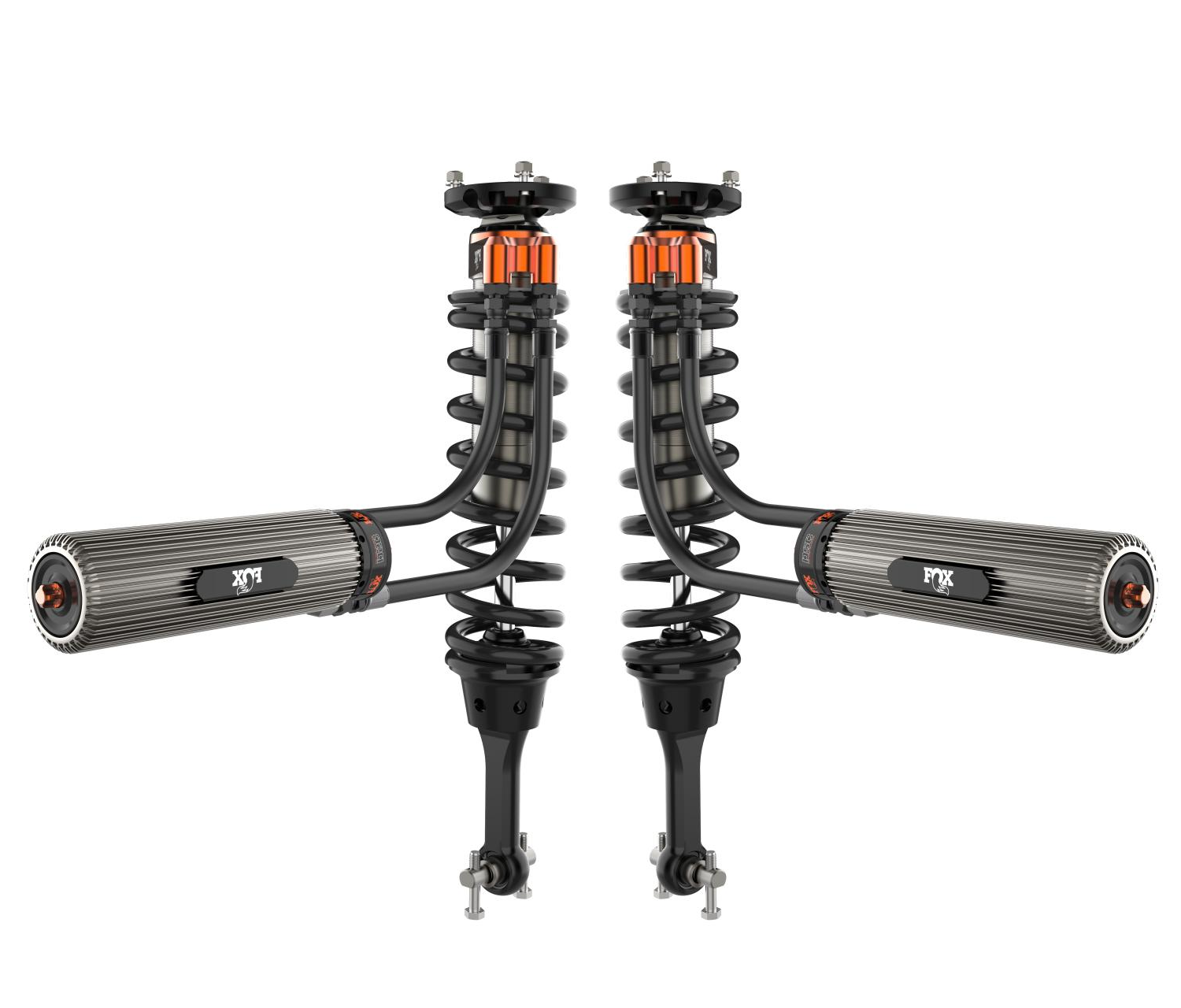

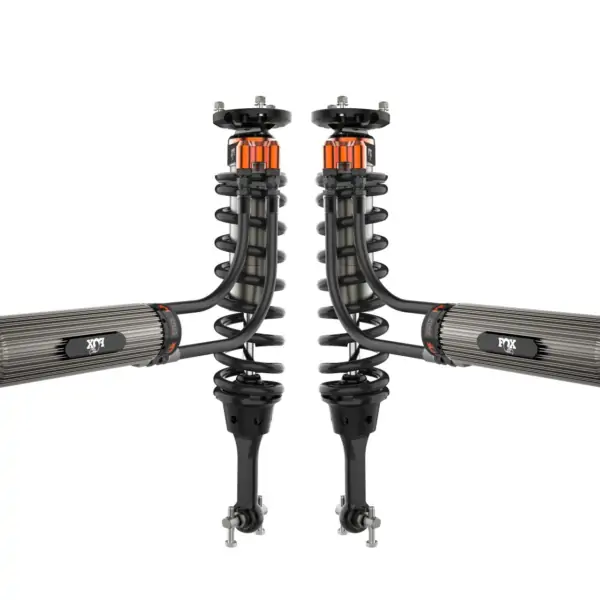

Fox Factory Race Series 3.0 Internal Bypass 2.5″ Front Lift Reservoir Adjustable Coilovers for 2021-2025 Ford F-150 4WD

Description
Fox Factory Race Series 3.0 Internal Bypass 2.5″ Front Lift Reservoir Adjustable Coilovers for 2021-2025 Ford F-150 4WD

Fox Factory Race Series 3.0 Internal Bypass 2.5 inches Front Lift Reservoir Adjustable Coilovers for 2021-2025 Ford F-150 4WD

Part Number: 883-06-191

Summary: The FOX Factory Race Series 3.0 Internal Bypass coilovers provide the 14th generation Ford F-150 with race-bred, position-sensitive damping technology in a convenient bolt-on kit. Utilizing patented Internal Bypass technology, these shocks offer multiple zones of damping control to deliver a comfortable ride that progressively increases force to prevent bottom-outs and top-outs during high-speed off-road operation. Equipped with Dual Speed Compression (DSC) adjusters and a recirculating reservoir bridge, this system is engineered to maintain cool operating temperatures and consistent performance in the most rugged terrain.

Features

• Internal Bypass Technology: Patented position-sensitive design provides multiple zones of damping control to ensure a comfortable ride with increased force through rough terrain.
• Dual Speed Compression (DSC): The integrated DSC adjuster provides user-tunable compression settings to ensure the vehicle is dialed in for specific loads, environments, and driving styles.
• Recirculating Reservoir Bridge: A checked-port bridge circulates fluid between the finned external reservoir and the 3-inch aluminum body to ensure the system stays cool under high-speed operation.
• Hard-Anodized Aluminum Body: The 3.0-inch impact extruded and CNC machined 6061-T6 aluminum construction provides corrosion resistance to ensure long-term durability.
• Redundant Sealing Pack: A specialized system featuring a main seal, wiper seal, and scraper seal provides maximum protection to ensure internal components remain free of debris.

Technical Specifications

Fitment

• 2021-2025 Ford F-150 4WD
• Note: 1 inches lift on Tremor models.

What’s Included

• Sold Individually
• Application-specific springs
• Finned external reservoir

Why Choose This Product?

• Engineering Advantage: The combination of 3.0-inch hard-anodized aluminum bodies and Internal Bypass technology allows fluid to bypass the main piston in the ride zone, only forcing it through the piston as the shock extends for progressive bottom-out control.
• Performance Benefit: Drivers experience high-speed ready performance and increased confidence when leaving the pavement, backed by the ability to manually tune the ride via DSC adjusters.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows for position-sensitive damping, meaning the shock provides a comfortable ride in the normal ride zone but increases damping force as it moves through its travel to prevent harsh bottom-outs.

How does the Dual Speed Compression (DSC) adjuster work?
The DSC adjuster allows you to manually dial in your Ford F-150’s suspension for specific loads, driving styles, and environments.

How does this shock manage heat during off-road use?
It utilizes a Recirculating Reservoir Bridge and a finned external reservoir to circulate and cool shock fluid between the reservoir and the main body.
