Rancho RS7MT 2.5″ Lift Shocks for 2005-2016 Ford F-250 4WD

Description
Rancho RS7MT 2.5″ Lift Shocks for 2005-2016 Ford F-250 4WD

Rancho RS7MT 2.5″ Lift Shocks for 2005-2016 Ford F-250 4WD

Part Number: RS77043

Summary: The Rancho RS7MT Monotube series is engineered specifically for high-performance handling on leveled or lifted Ford Super Duty trucks. Utilizing a high-pressure nitrogen gas charge and a monotube design, these shocks provide the rapid response and precision needed to manage the heavy unsprung weight of larger tire and wheel packages. By separating the oil and gas with a floating piston, the RS7MT eliminates aeration and shock fade, ensuring consistent damping performance during demanding towing or off-road cycles.

Features

• Monotube Design: A 1.97-inch (50mm) body diameter provides increased oil capacity to ensure cooler operating temperatures during heavy-duty use.
• High-Pressure Nitrogen Charge: A specialized gas charge provides immediate damping response to ensure maximum tire-to-road contact.
• Internal Floating Piston (IFP): The physical barrier between nitrogen and hydraulic fluid provides zero aeration to ensure fade-free performance in extreme conditions.
• Hardened Nitro-Coated Rod: A durable piston rod finish provides superior corrosion resistance to ensure a long service life in harsh environments.

Technical Specifications

Fitment

• 2005-2016 Ford F-250 4WD
• 2005-2016 Ford F-350 4WD
• Note: Configured for vehicles with Rancho Suspension. Excluding Chassis Cab models.

What’s Included

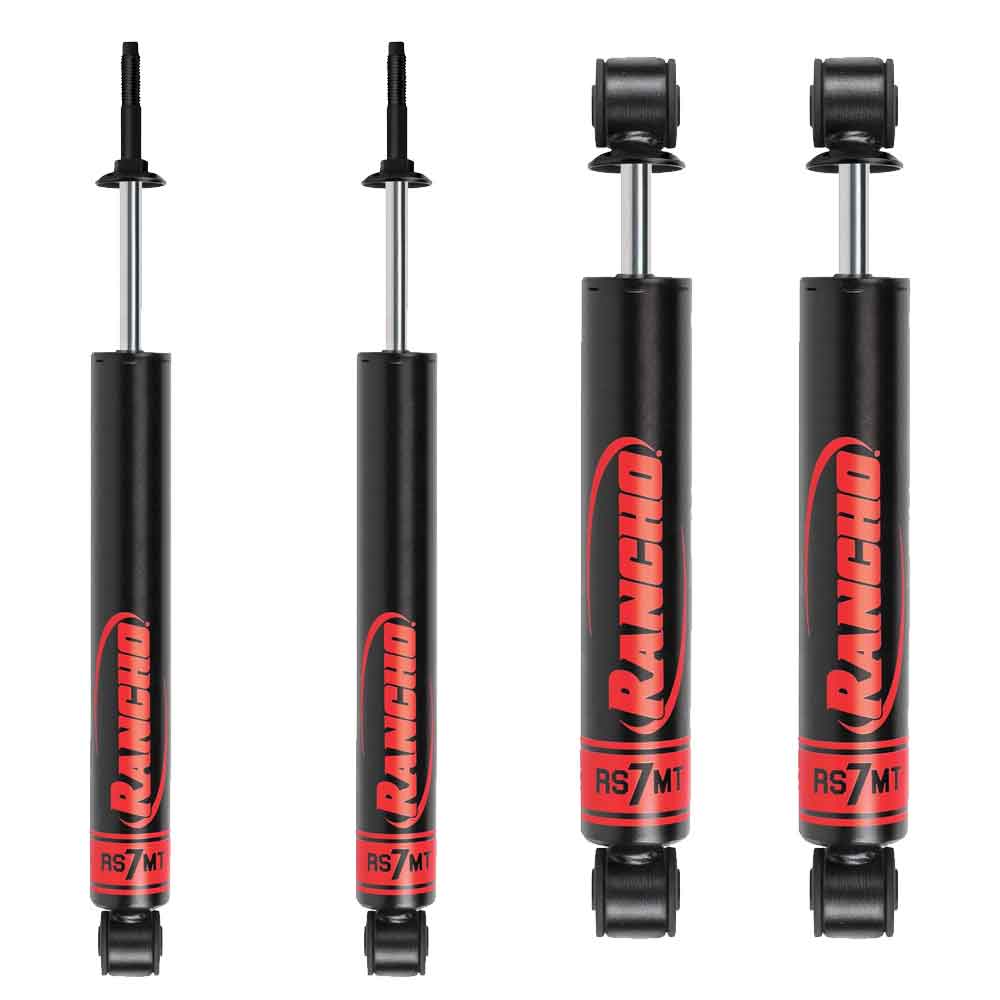

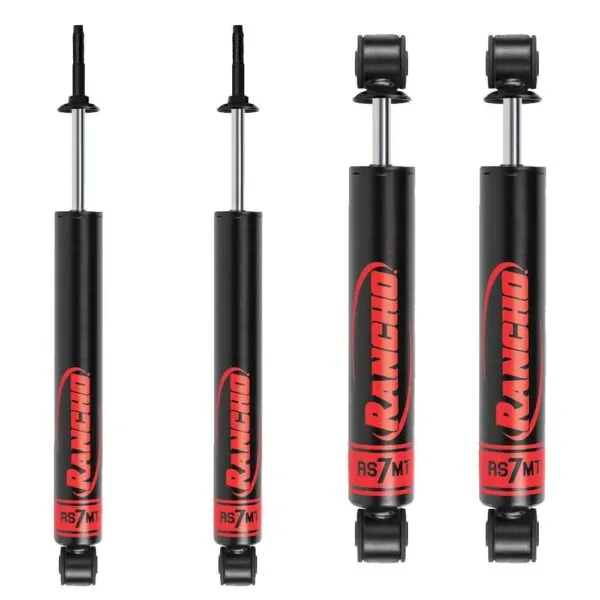

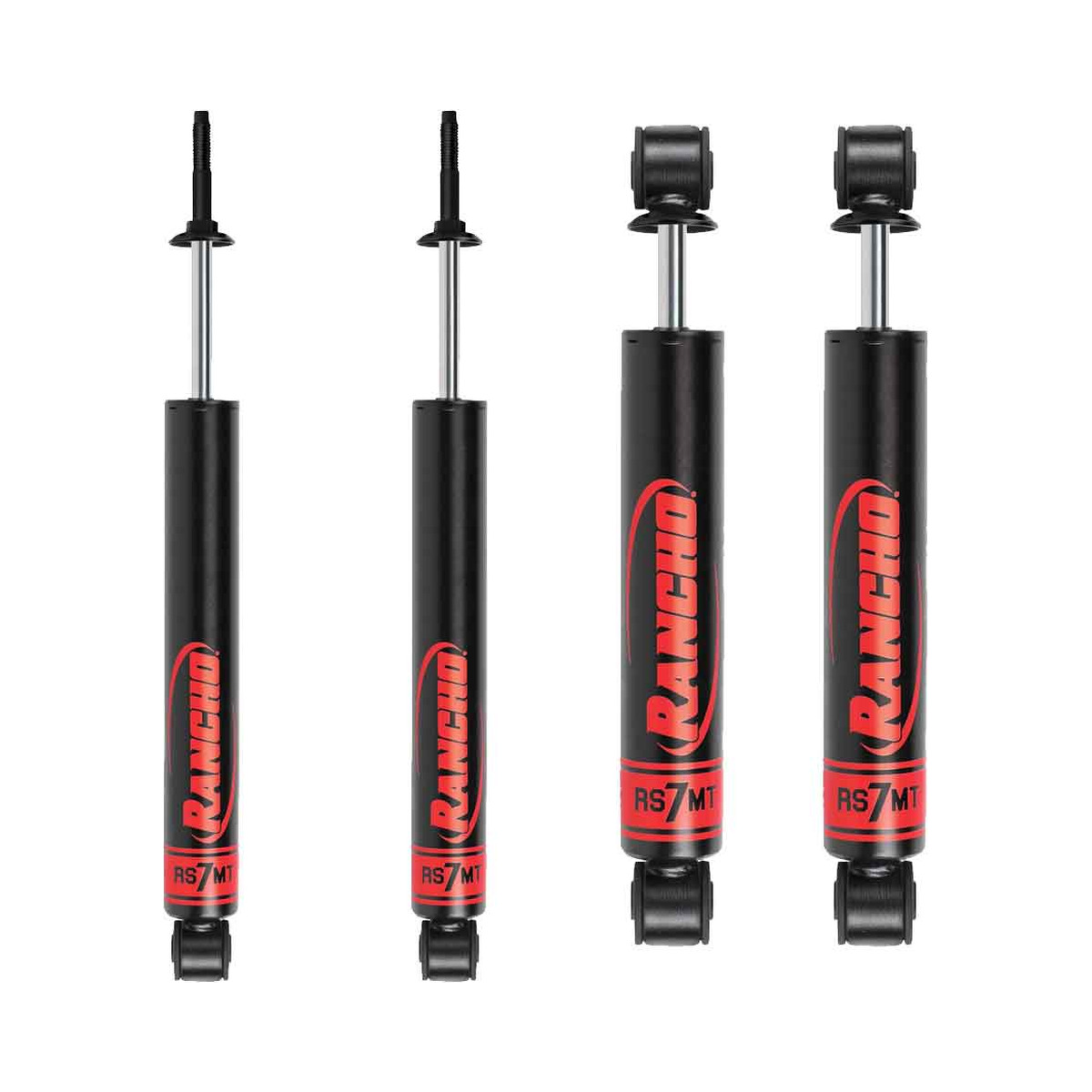

• Includes 4 Shocks (Full Front and Rear Set)
• Protective Shock Boots
• Necessary Installation Bushings and Hardware

Why Choose This Product?

• Engineering Advantage: The monotube architecture offers superior heat dissipation compared to standard twin-tube shocks, making it the ideal choice for heavy-duty Ford trucks.
• Performance Benefit: Drivers will experience a significant reduction in body roll and improved steering feedback, especially when navigating washboard roads or towing heavy trailers.

Related Products

RS5000X (Front):
Rancho RS5000X 2.5" Front Lift Shocks for 2005-2016 Ford F-250 4WD

RS5000X (Rear):
Rancho RS5000X 2.5" Rear Lift Shocks for 2005-2016 Ford F-250 4WD

RS7MT (Front):
Rancho RS7MT 2.5" Front Lift Shocks for 2005-2016 Ford F-250 4WD

RS7MT (Rear):
Rancho RS7MT 2.5" Rear Lift Shocks for 2005-2016 Ford F-250 4WD

RS90000XL (Front):
Rancho RS90000XL 2.5" Front Lift Shocks for 2005-2016 Ford F-250 4WD

RS90000XL (Rear):
Rancho RS90000XL 2.5" Rear Lift Shocks for 2005-2016 Ford F-250 4WD

RS5000X (Kit):
Rancho RS5000X 2.5" Lift Shocks for 2005-2016 Ford F-250 4WD

RS90000XL (Kit):
Rancho RS90000XL 2.5" Lift Shocks for 2005-2016 Ford F-250 4WD

Frequently Asked Questions

Will these shocks lift my Ford F-250?
No, these shocks do not create lift. They are specifically valved and length-configured to work with vehicles already equipped with a 2.5-inch suspension lift.

What is the benefit of a monotube over a twin-tube shock?
The monotube design uses a single cylinder to dissipate heat faster and includes a floating piston that prevents the oil from foaming (aeration), resulting in more consistent control.

Are these shocks compatible with Chassis Cab models?
No, these specific part numbers are excluded from use on Chassis Cab models and are intended for standard pickup configurations only.
