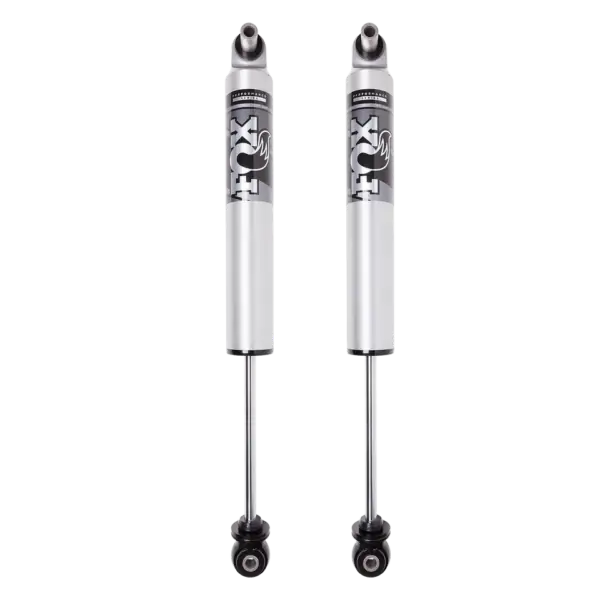

FOX 2.5 Performance Smooth Body HTO 6-8″ Front Lift IFP Shocks for 2017-2025 Ford F-250 Super Duty 4WD

Description
FOX 2.5 Performance Smooth Body HTO 6-8″ Front Lift IFP Shocks for 2017-2025 Ford F-250 Super Duty 4WD

FOX 2.5 Performance Smooth Body HTO 6-8 inches Front Lift IFP Shocks for 2017-2025 Ford F-250 Super Duty 4WD

Part Number: 987-24-022

Summary: The FOX 2.5 Performance Series HTO shock is a bolt-on solution engineered to enhance the performance of lifted Ford F-250 Super Duty trucks. Utilizing position-sensitive damping technology and vehicle-specific valving, these shocks address the increased demands of vehicles equipped with heavier, aggressive tires and higher lift heights. The large 2.5-inch aluminum body ensures efficient heat dissipation and corrosion resistance for sustained operation on and off the pavement.

Features

• Hydraulic Top Out (HTO) Piston: A secondary shim stack provides position-sensitive rebound damping to reduce harsh top-outs and increase comfort.
• Internal Floating Piston (IFP): The internal floating piston (IFP) separates shock oil from high-pressure nitrogen to optimize damping and prevent aeration.
• Impact Extruded 6061-T6 Aluminum Body: A 2.5-inch type II clear-anodized body provides high-flow heat dissipation to ensure consistent performance under load.
• Hard Chrome Shaft: A 5/8-inch hard chrome plated heat-treated alloy steel shaft provides durability and long seal life.

Technical Specifications

Fitment

• 2017-2025 Ford F-250 Super Duty 4WD
• Note: Lift: 6-8 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The Hydraulic Top Out (HTO) technology offers position-sensitive rebound control by forcing oil through a secondary shim stack, specifically managing the increased mass of larger wheel and tire packages.
• Performance Benefit: Drivers experience improved ride quality and reduced harshness during full suspension extension, ensuring a controlled and comfortable ride on vehicles lifted 6 to 8 inches.

Frequently Asked Questions

What is the benefit of HTO technology?
Hydraulic Top Out (HTO) technology provides position-sensitive rebound damping that slows down the shock shaft speed near full extension to reduce harsh top-outs.

Are these shocks compatible with my lifted truck?
These shocks are specifically designed for 2017-2025 Ford F-250 Super Duty 4WD models with a 6 to 8-inch front lift.

How does the IFP design improve performance?
The Internal Floating Piston (IFP) separates the nitrogen gas from the shock oil, which prevents oil aeration and allows for consistent damping performance.
