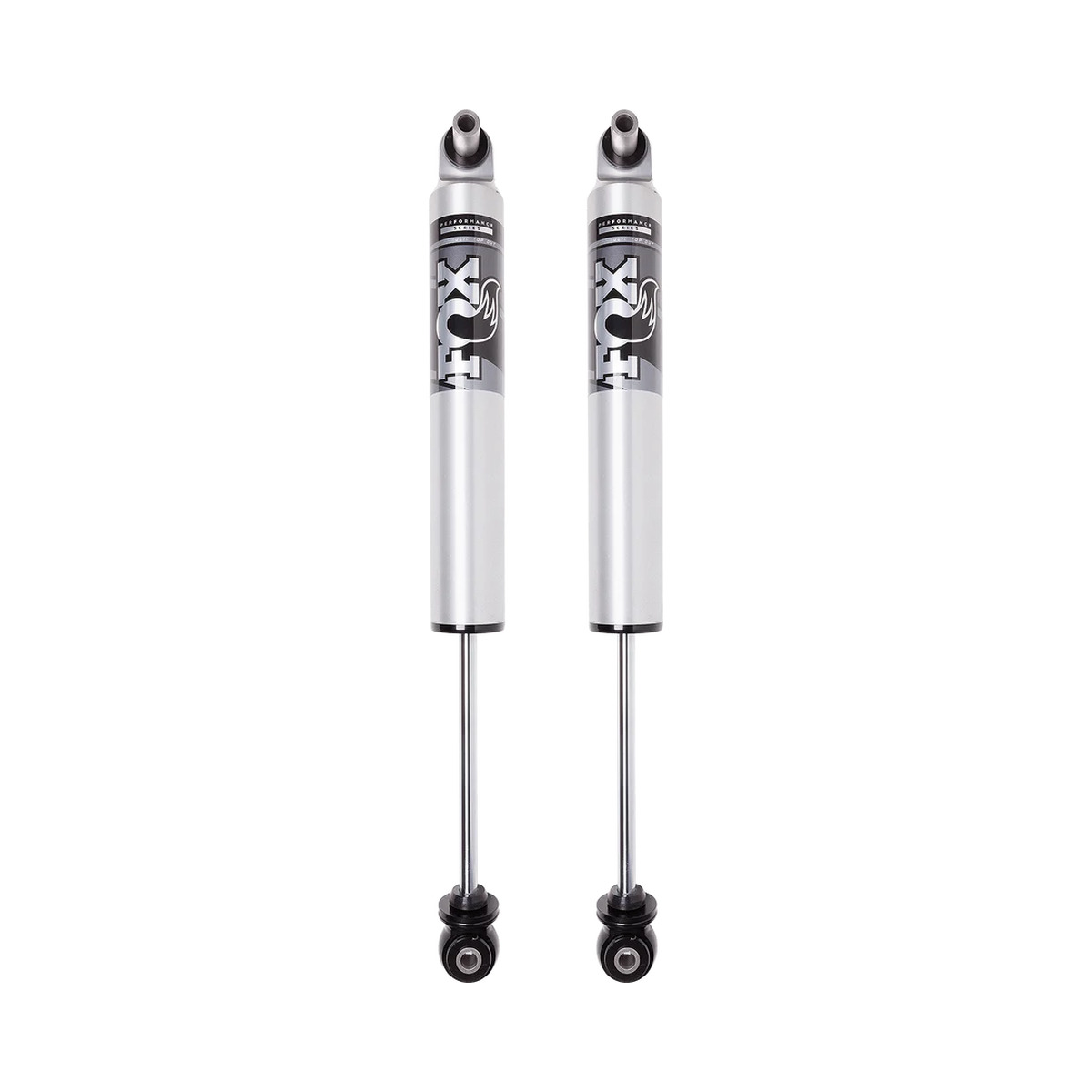

FOX 2.5 Performance Smooth Body HTO 2-3.5″ Front Lift IFP Shocks for 2017-2025 Ford F-250 4WD

Description
FOX 2.5 Performance Smooth Body HTO 2-3.5″ Front Lift IFP Shocks for 2017-2025 Ford F-250 4WD

FOX 2.5 Performance Smooth Body HTO 2-3.5 inches Front Lift IFP Shocks for 2017-2025 Ford F-250 4WD

Part Number: 987-24-002

Summary: The FOX 2.5 Performance Series HTO shocks are engineered to enhance the handling of the 2017-2025 Ford F-250 4WD. Featuring position-sensitive damping technology and vehicle-specific valving, these shocks address the harsh ride and top-out issues common in lifted applications. By utilizing a larger 2.5-inch aluminum body, these shocks provide increased damping capacity and efficient heat dissipation for sustained performance on and off-road.

Features

• Hydraulic Top Out (HTO): A secondary shim stack provides position-sensitive rebound damping control to slow down shock shaft speed and reduce harsh top-outs.
• Internal Floating Piston (IFP): High-pressure nitrogen gas is separated from the shock oil to provide optimized damping and prevent oil aeration.
• 6061-T6 Aluminum Body: An impact-extruded 2.5-inch body with Type II clear-anodized plating provides efficient heat dissipation and prevents corrosion.
• High-Flow Velocity-Sensitive Damping: Vehicle-specific valving provides rapid response to terrain changes to ensure a controlled and comfortable ride.
• Hard Chrome Shaft: A 5/8-inch hard chrome-plated heat-treated alloy steel shaft provides durability and long seal life to ensure consistent operation.

Technical Specifications

Fitment

• 2017-2025 Ford F-250 4WD
• Note: Lift: 2-3.5 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of Hydraulic Top Out (HTO) technology provides position-sensitive damping that specifically mitigates the mechanical stress of shock extension in lifted Ford trucks.
• Performance Benefit: Drivers experience increased comfort and reduced harshness, particularly when navigating obstacles with heavier, aggressive tires.

Frequently Asked Questions

What is Hydraulic Top Out (HTO) technology?
HTO is a position-sensitive rebound damping system that uses a secondary shim stack to slow the shock shaft speed as it nears full extension, reducing harsh top-out sensations.

How does the Internal Floating Piston (IFP) improve performance?
The IFP separates the high-pressure nitrogen gas from the shock oil, which prevents the oil from foaming and ensures consistent damping performance during aggressive use.

Are these shocks compatible with my lift kit?
These shocks are specifically valved and sized for 2017-2025 Ford F-250 4WD models equipped with a 2-inch to 3.5-inch front lift.
