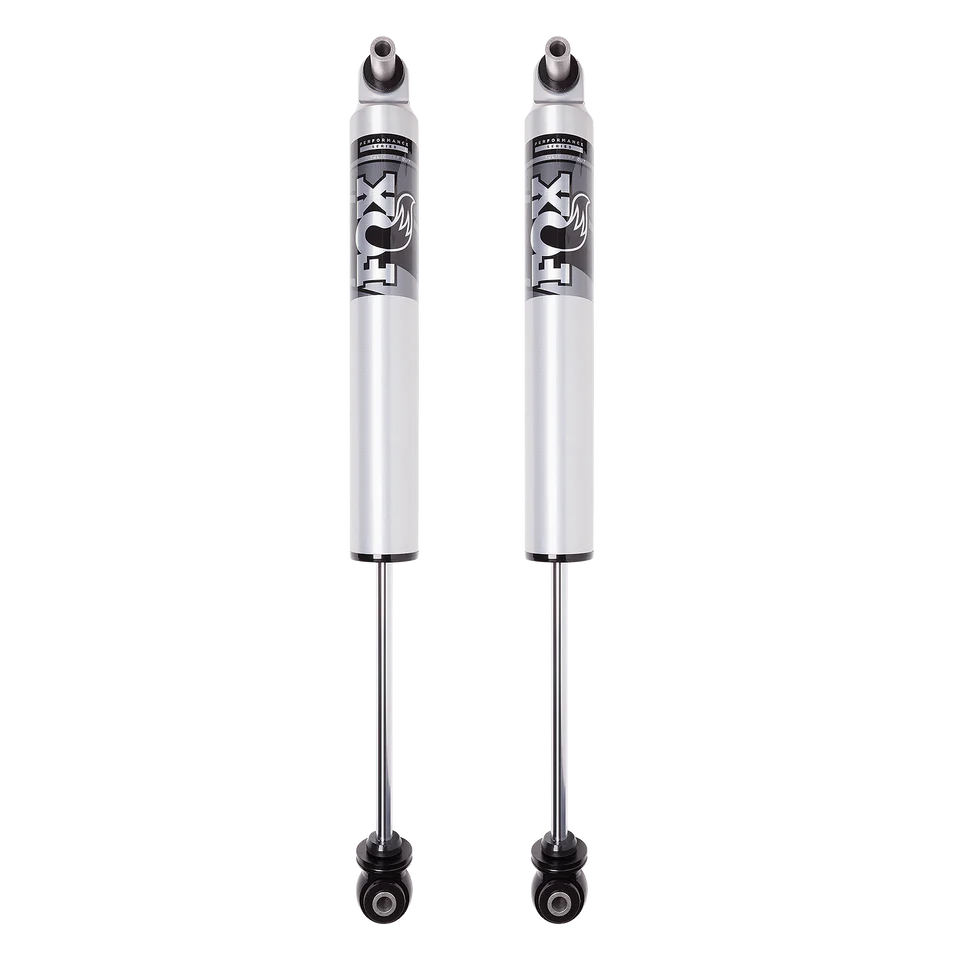

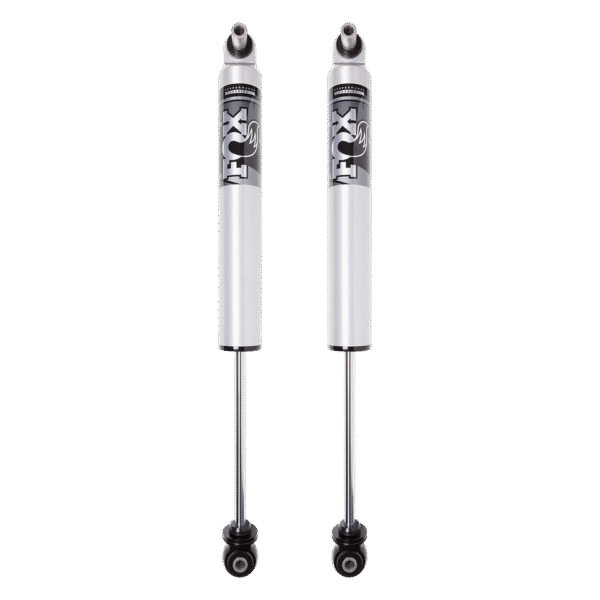

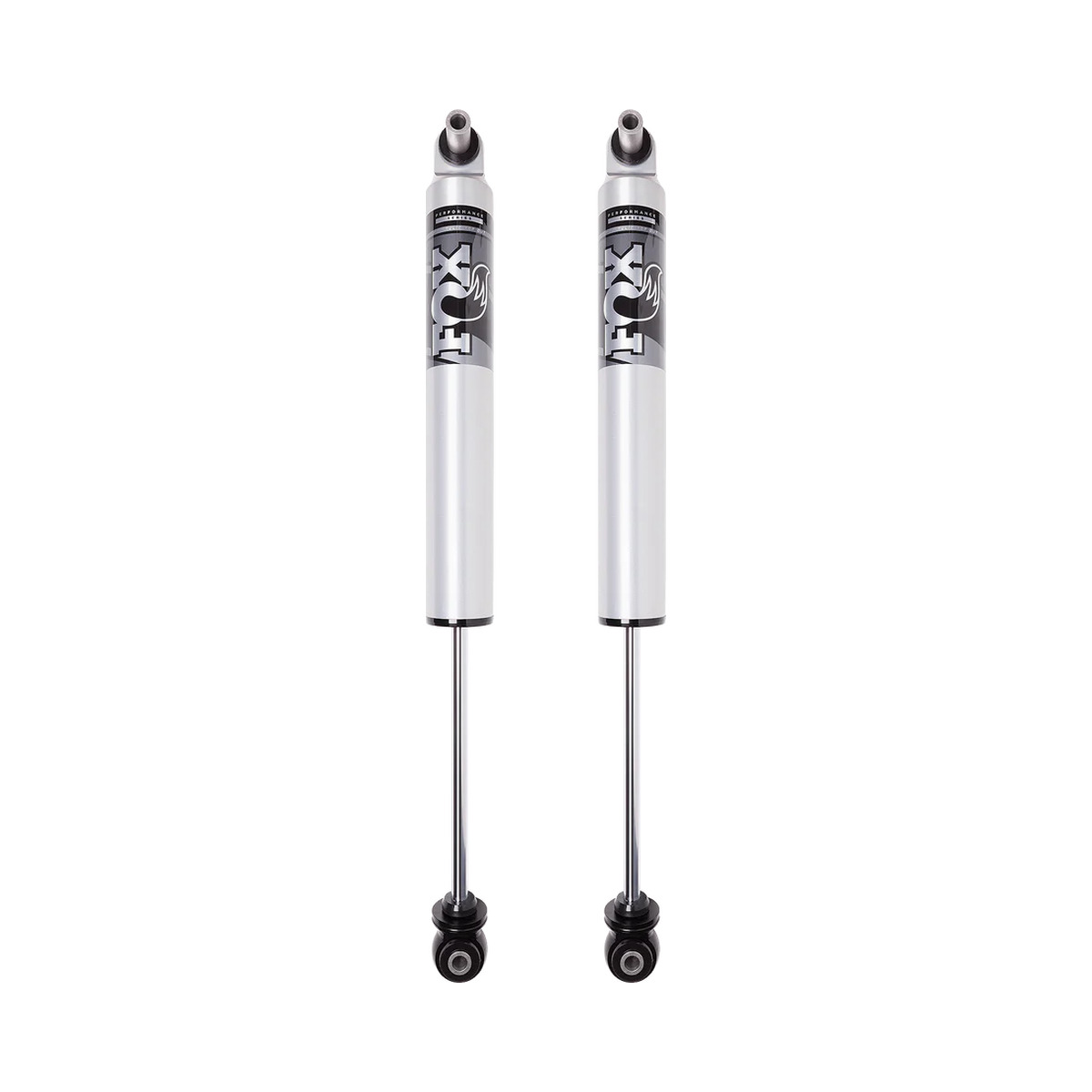

FOX 2.5 Performance HTO 0-1.5″ Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Crew Cab Pickup

Description
FOX 2.5 Performance HTO 0-1.5″ Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Crew Cab Pickup

FOX 2.5 Performance HTO 0-1.5 inches Front Lift Shocks for 2017-2025 Ford F-350 4WD Super Duty Crew Cab Pickup

Part Number: 987-24-000

Summary: The FOX 2.5 Performance Series HTO shocks are engineered to enhance the ride quality and control of the Ford F-350 Super Duty. These bolt-on shocks feature position-sensitive technology and vehicle-specific valving designed to improve both on and off-road performance. By utilizing Hydraulic Top Out (HTO) technology, these shocks manage rebound damping to reduce harshness, especially in applications with heavier tires or increased lift heights.

Features

• Hydraulic Top Out (HTO) Piston: A secondary shim stack provides usable position-sensitive rebound damping control to ensure reduced harsh top-outs and increased comfort.
• Internal Floating Piston (IFP): The internal floating piston (IFP) separates shock oil from high-pressure nitrogen gas to ensure optimized damping and consistent performance.
• 6061-T6 Aluminum Shock Body: A 2.5-inch impact extruded aluminum body provides efficient heat dissipation and Type II clear-anodized plating to ensure corrosion resistance.
• High-Flow Velocity-Sensitive Damping: Vehicle-specific valving provides rapid response to terrain changes to ensure improved handling on and off the pavement.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 4WD Super Duty Crew Cab Pickup
• Note: Lift: 0-1.5 inches.

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of Hydraulic Top Out (HTO) technology and position-sensitive damping allows the shock to slow down shaft speeds during extension, preventing the mechanical “clunk” often associated with heavy heavy-duty suspension setups.
• Performance Benefit: Drivers experience a more refined ride with increased damping capacity, specifically tuned to handle the weight and geometry of the Ford F-350 Super Duty.

Frequently Asked Questions

What is the benefit of the HTO technology?
Hydraulic Top Out (HTO) technology forces shock oil through a secondary shim stack to slow down the shock shaft speed, which reduces harsh top-outs and increases comfort.

Does this shock work with lifted trucks?
Yes, this shock is specifically configured for front lift heights between 0 and 1.5 inches.

What material is the shock body made of?
The shock body is constructed from 2.5-inch impact extruded 6061-T6 aluminum with Type II clear-anodized plating for heat dissipation and corrosion resistance.
