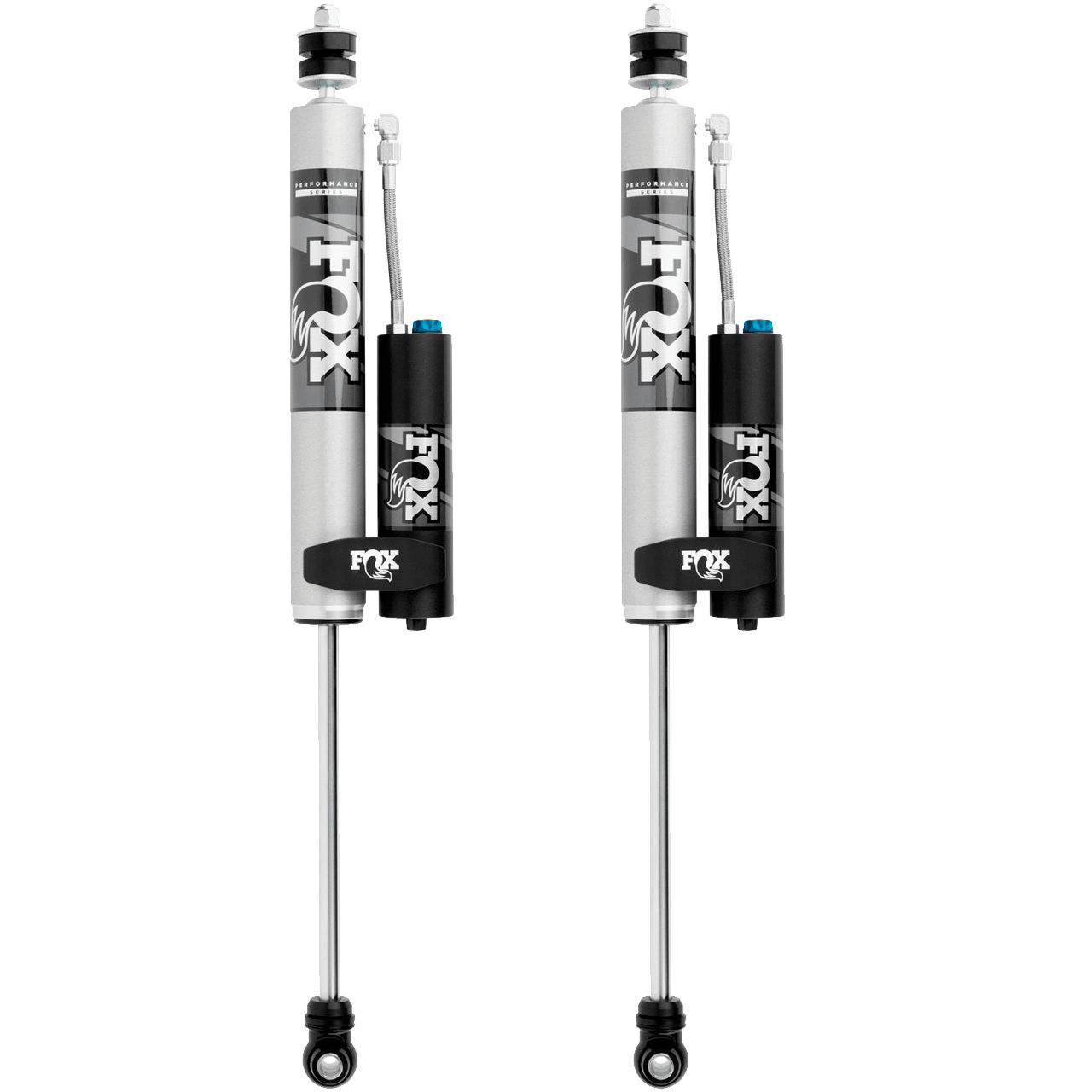

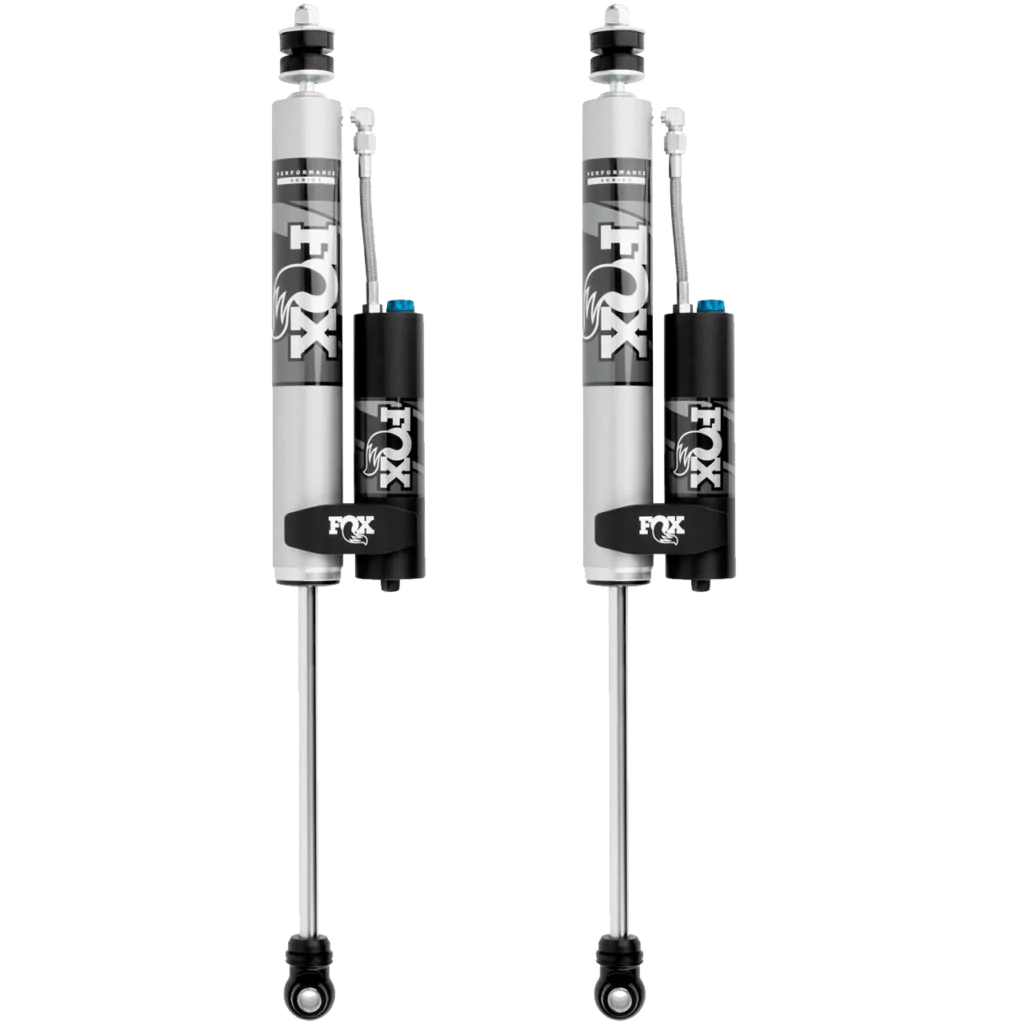

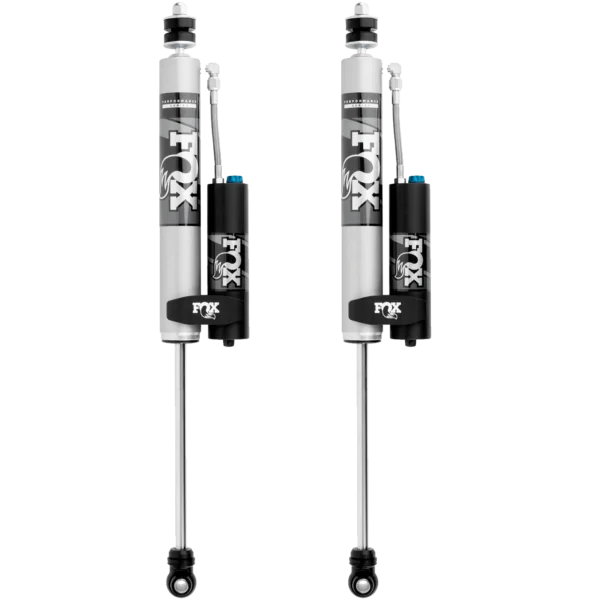

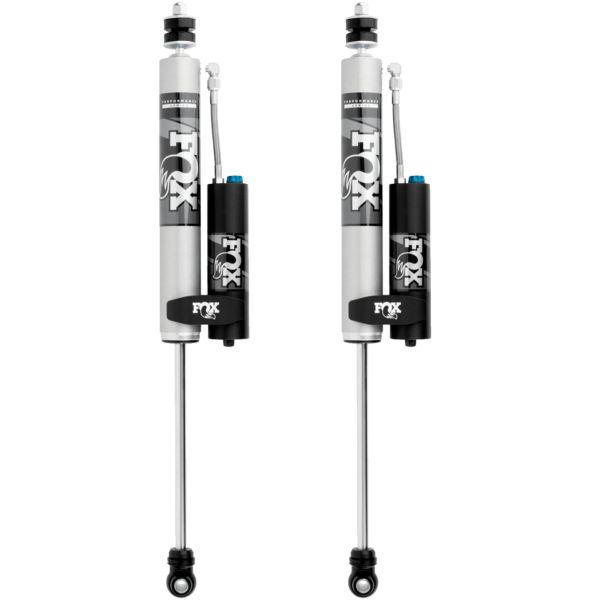

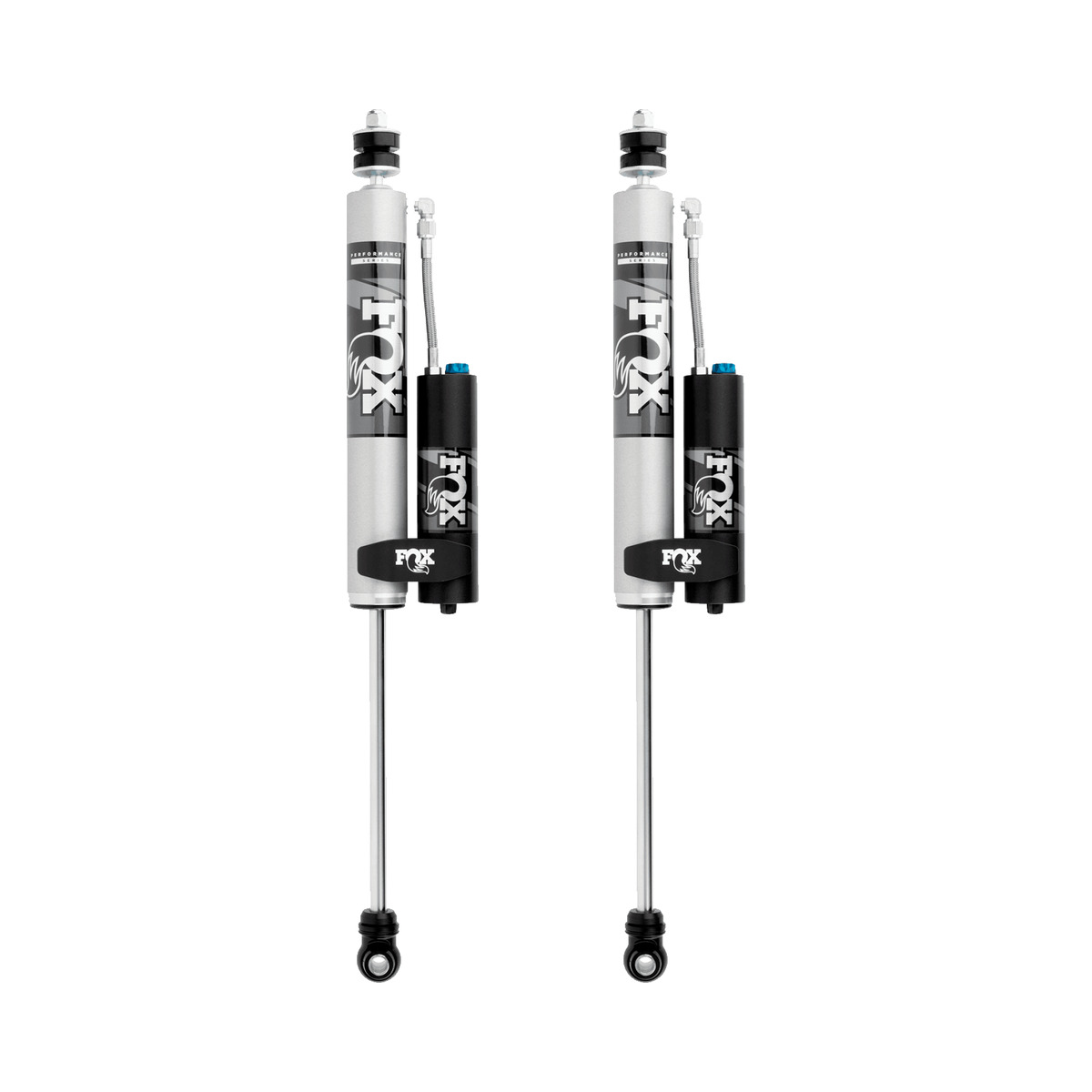

FOX 5.5-7″ Front Lift Reservoir Adjuster Shocks for 2017-2025 Ford F-250 4WD

Description
FOX 5.5-7″ Front Lift Reservoir Adjuster Shocks for 2017-2025 Ford F-250 4WD

FOX 5.5-7 inches Front Lift Reservoir Adjuster Shocks for 2017-2025 Ford F-250 4WD

Part Number: 2×985-26-164

Summary: The FOX Performance Series 2.0 Reservoir shocks are engineered to provide race-derived performance for Ford F-250 4WD owners with 5.5 to 7 inches of front lift. Featuring an External Reservoir and an impactful aluminum body, these shocks are designed to dissipate heat significantly faster than conventional steel shocks. This system utilizes Low Speed Compression (LSC) adjustment and application-specific valving to manage the roughest road conditions while maintaining a predictable ride quality.

Features

• External Reservoir: 2.0 inches Smooth bore 6061-T6 hard anodized aluminum provides increased oil and nitrogen capacity to ensure sustained off-road performance and heat resistance.
• Shock Body: 2.0 inches Impact extruded 6061-T6 aluminum provides rapid heat dissipation to ensure the shock resists rust and maintains consistent damping over time.
• LSC Adjuster: Low Speed Compression (LSC) adjustment provides user-specific tuning to ensure the vehicle is optimized for various load and road conditions.
• High-Flow Piston: Race-developed high-flow design provides application-specific valving to ensure a predictable ride quality on rough terrain.
• Sealing System: Redundant sealing pack including main, wiper, and scraper seals provides a secure internal environment to ensure long-term durability in harsh environments.

Technical Specifications

Fitment

• 2017-2025 Ford F-250 4WD
• Note: Configured for vehicles with 5.5-7 inches front lift. Includes Billet Reservoir Clamp.

What’s Included

• Includes 2 Shocks
• Black-anodized CNC-machined 6061-T6 billet aluminum reservoir mounting clamps

Why Choose This Product?

• Engineering Advantage: The use of an external reservoir combined with an impact-extruded 6061-T6 aluminum body allows for superior thermal management compared to standard steel-body shocks.
• Performance Benefit: Drivers gain increased control and consistent damping performance during high-demand operation, with the ability to fine-tune ride characteristics via the LSC adjuster.

Frequently Asked Questions

What is the benefit of the external reservoir on these FOX shocks?
The external reservoir increases oil and nitrogen capacity, which helps dissipate heat faster and delivers a race-derived look and performance.

Can I adjust the damping on this shock?
Yes, these shocks feature a Low Speed Compression (LSC) adjuster that allows for manual tuning of the compression damping.

Are these shocks compatible with a stock height Ford F-250?
No, these shocks are specifically designed for 2017-2025 Ford F-250 4WD models with 5.5 to 7 inches of front lift.
