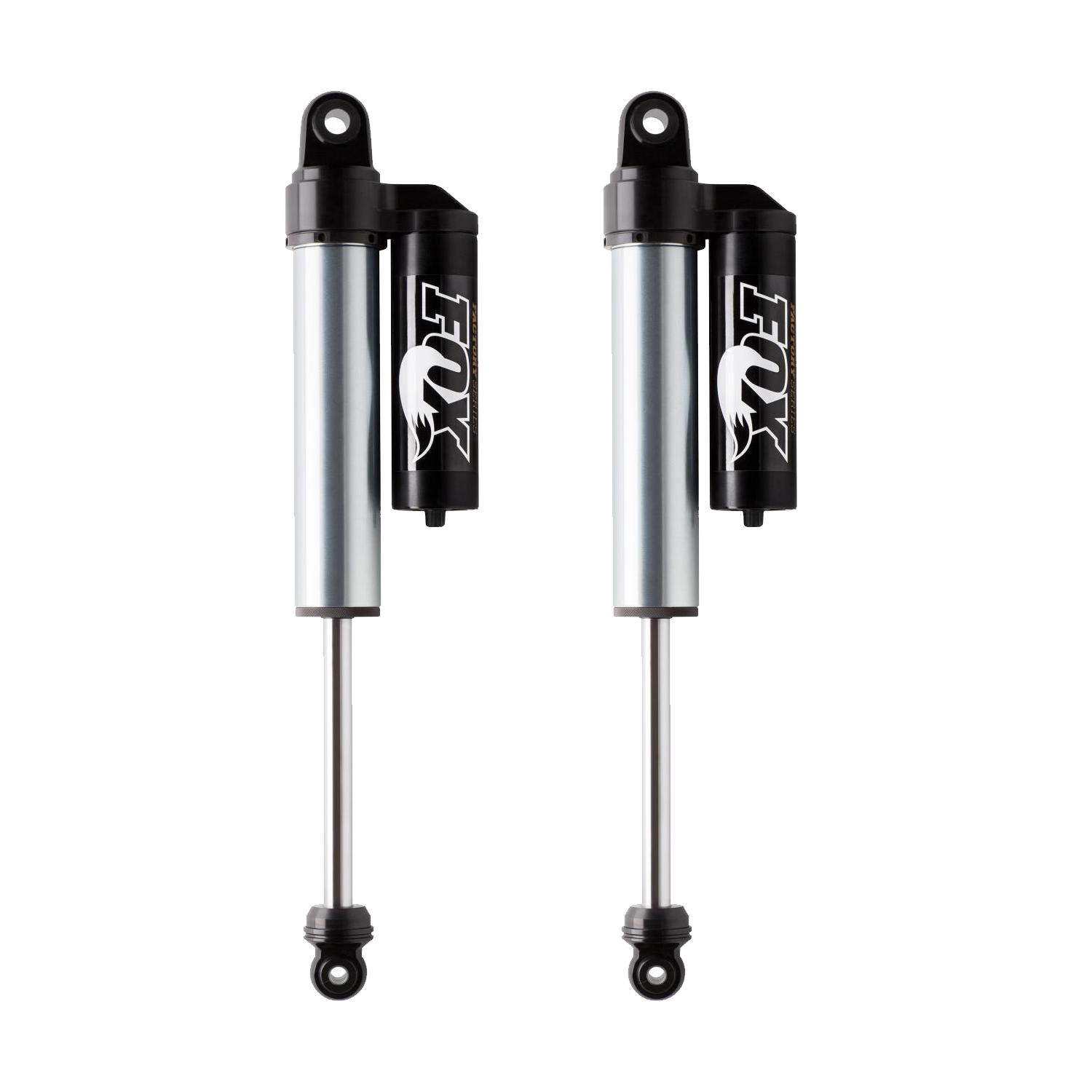

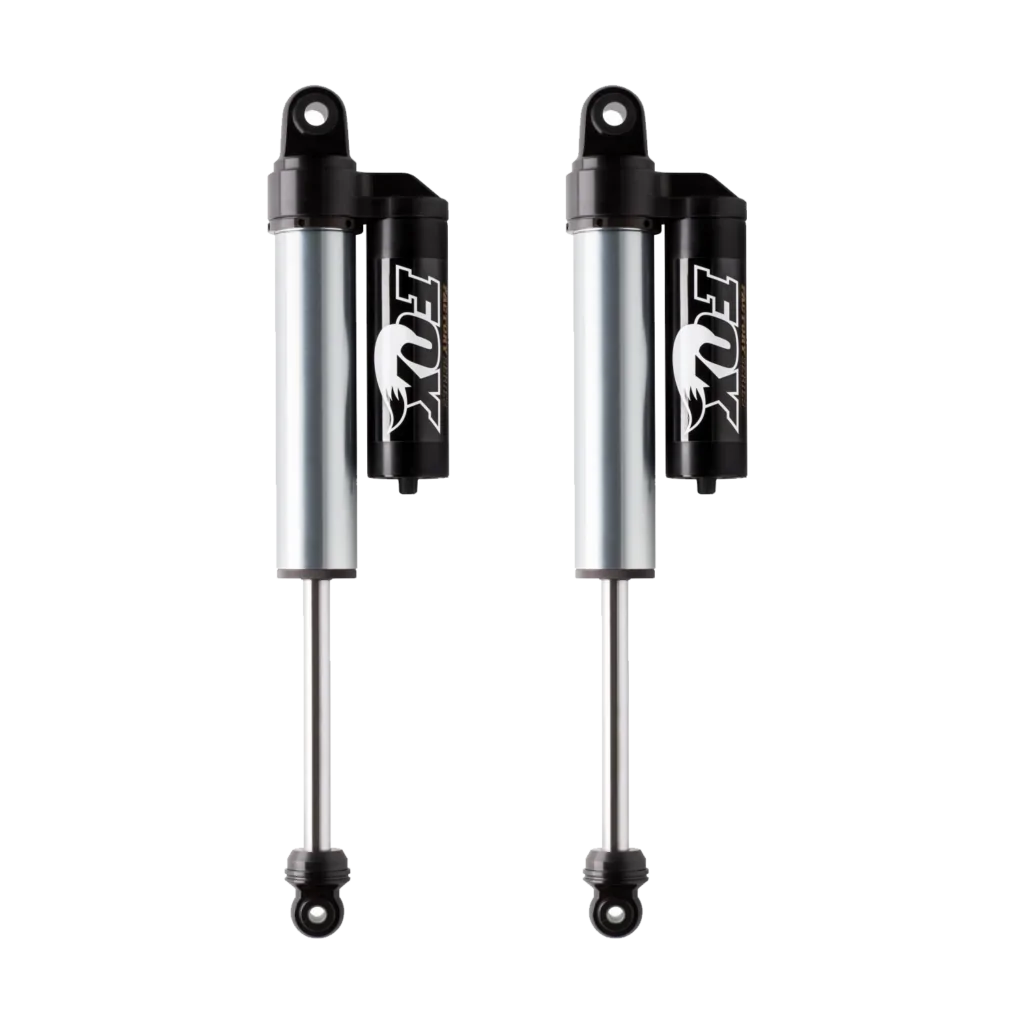

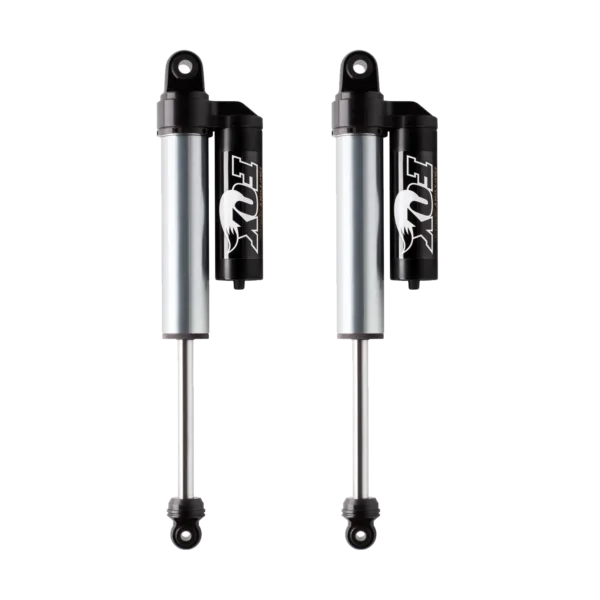

FOX Factory 2.5 Body 2-3.5″ Rear Lift Shocks for 2017-2025 Ford F-250 F-350 4WD

Description
FOX Factory 2.5 Body 2-3.5″ Rear Lift Shocks for 2017-2025 Ford F-250 F-350 4WD

FOX Factory 2.5 Body 2-3.5 inches Rear Lift Shocks for 2017-2025 Ford F-250 F-350 4WD

Part Number: 883-24-041

Summary: The FOX Factory Race Series 2.5 Reservoir shocks are engineered to provide enhanced ride quality and precise control for the Ford F-250 and F-350 4WD. Utilizing an External reservoir, these shocks are designed to handle the transition from pavement to off-road environments with improved damping performance. This system addresses the need for increased oil and nitrogen capacity, ensuring consistent operation across varied terrain for lifted applications.

Features

• External Reservoir: 2.5 inches Smooth bore and honed seamless alloy reservoir provides increased oil and nitrogen capacity to ensure enhanced ride quality and a race-inspired appearance.
• Shock Body: 2.5 inches smooth bore zinc plated seamless steel body provides a durable foundation to ensure long-lasting performance in brutal conditions.
• High-Flow Piston: Race-developed high-flow piston design provides application-specific valving to ensure maximized performance and precise control.
• Heavy-Duty Shaft: 7/8 inches hard chrome plated heat-treated alloy steel shaft provides robust structural integrity to ensure reliable operation under stress.
• Spherical Bearing: PTFE-lined, heat-treated, alloy steel spherical bearings provide secure mounting points to ensure performance in demanding off-road environments.

Technical Specifications

Fitment

• 2017-2025 Ford F-250 4WD
• 2017-2025 Ford F-350 4WD
• Note: Designed for vehicles with 2-3.5 inches of rear lift.

What’s Included

• Sold Individually

Why Choose This Product?

• Engineering Advantage: The external reservoir design significantly increases the volume of oil and nitrogen available, which is critical for managing heat and maintaining damping consistency during repeated impacts.
• Performance Benefit: Drivers experience improved control and a more refined ride quality on both highway and off-road surfaces through application-specific valving and race-proven components.

Frequently Asked Questions

What is the benefit of the external reservoir on these shocks?
The external reservoir allows for increased oil and nitrogen capacity, which improves damping performance and provides a race-ready look for your truck.

What lift height are these shocks compatible with?
These rear shocks are specifically designed for 2017-2025 Ford F-250 and F-350 4WD models with 2 inches to 3.5 inches of rear lift.

Are these shocks sold as a pair?
No, these shocks are sold individually.
