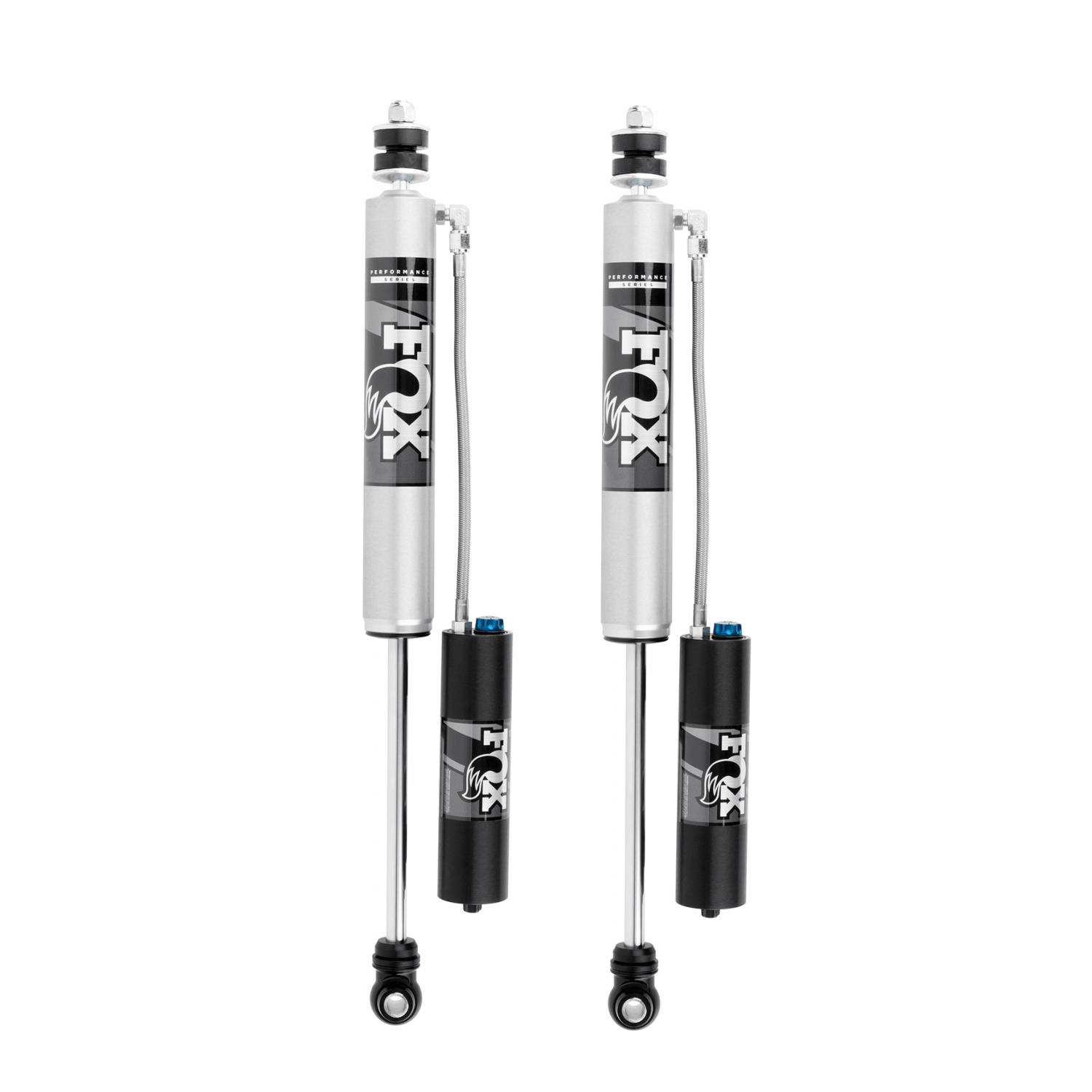

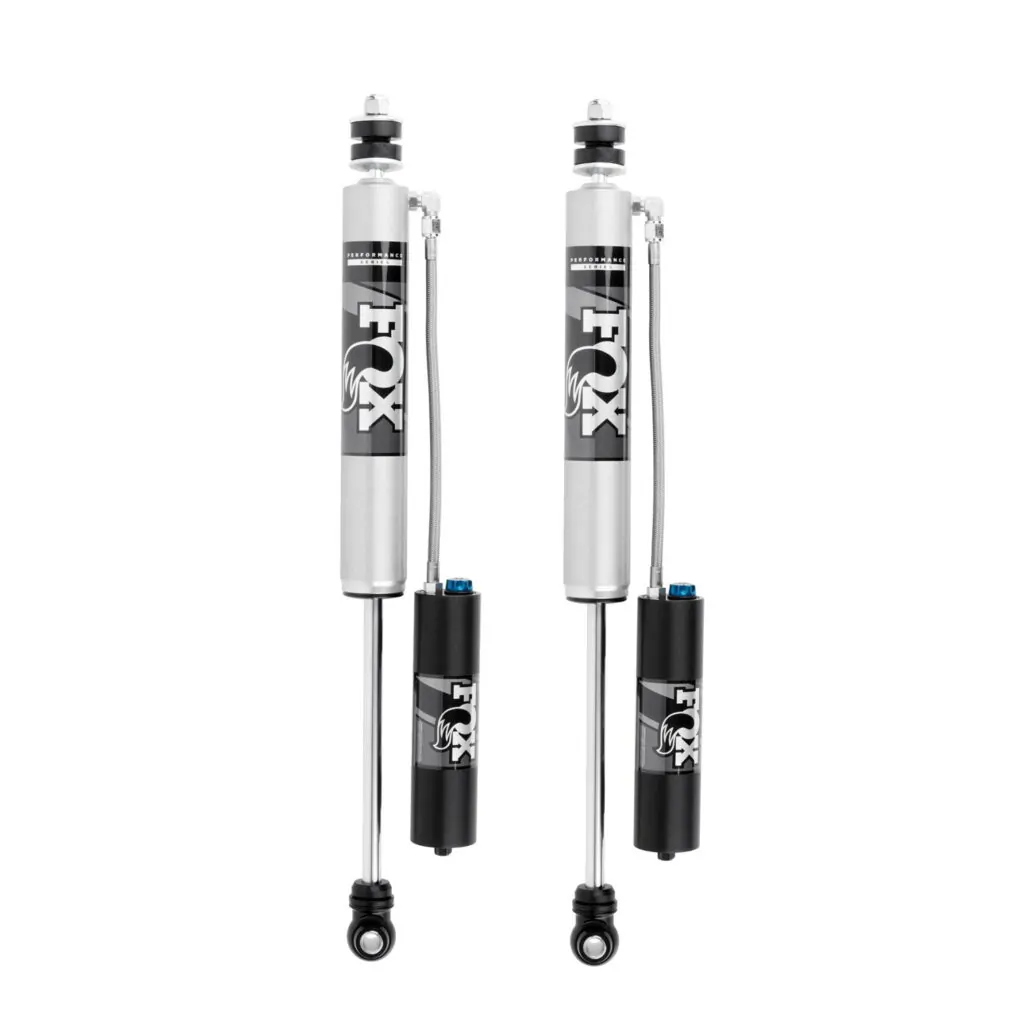

Fox Perf Series 2.0 Smooth body 2-3.5″ Front Lift Shocks for 2017-2019 Ford F-450/550 2WD/4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Description
Fox Perf Series 2.0 Smooth body 2-3.5″ Front Lift Shocks for 2017-2019 Ford F-450/550 2WD/4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Fox Perf Series 2.0 Smooth body 2-3.5 inches Front Lift Shocks for 2017-2019 Ford F-450/550 2WD/4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Part Number: 985-26-162

Summary: The FOX Performance Series 2.0 Reservoir shock is engineered for Ford F-450/550 Super Duty owners seeking race-derived performance in a bolt-on package. Featuring a metal-impacted clear anodized aluminum body, this shock is designed to dissipate heat significantly faster than conventional steel shocks. The external reservoir and compression adjustable tuning allow for increased oil capacity and user-defined damping control to handle the roughest road conditions.

Features

• External Reservoir: 2.0 inches Smooth bore 6061-T6 hard anodized aluminum provides increased oil and nitrogen capacity to ensure consistent performance and a race-ready appearance.
• LSC Adjuster: Low Speed Compression (LSC) adjustment functionality provides user-tunable damping to ensure the vehicle is optimized for specific loads or terrain.
• Aluminum Shock Body: 2.0 inches Impact extruded 6061-T6 aluminum provides superior heat dissipation and rust resistance to ensure long-term durability in harsh environments.
• High-Flow Piston: Race-developed high-flow design provides application-specific valving to ensure predictable ride quality and maximum performance.
• Redundant Sealing Pack: Main seal, wiper seal, and scraper seal system provides multi-layered protection to ensure seal integrity against contaminants.

Technical Specifications

Fitment

• 2017-2019 Ford F-450 Super Duty 2WD/4WD (Cab and Chassis)
• 2017-2019 Ford F-550 Super Duty 2WD/4WD (Cab and Chassis)
• Note: Includes Universal Bracket. Fits models with 2-3.5 inches front lift.

What’s Included

• Includes 2 Shocks
• Black-anodized reservoir mounting clamps
• Universal Bracket

Why Choose This Product?

• Engineering Advantage: The use of CNC-machined 6061-T6 billet aluminum components and a hard chrome plated heat-treated alloy steel shaft ensures the assembly maintains structural integrity under high-stress operation.
• Performance Benefit: Drivers experience improved heat management and the ability to manually fine-tune low-speed compression, resulting in a more controlled and predictable ride on or off-road.

Frequently Asked Questions

What is the benefit of the external reservoir on these shocks?
The external reservoir increases the oil and nitrogen capacity of the shock, which helps dissipate heat more effectively than a standard internal reservoir design.

Can I adjust the damping on this Performance Series 2.0 shock?
Yes, these shocks feature a Low Speed Compression (LSC) adjuster, allowing you to tune the damping characteristics to suit your specific driving needs.

Will these shocks fit a stock height Ford F-450/550?
These specific shocks are designed for vehicles equipped with a 2 inches to 3.5 inches front lift.
