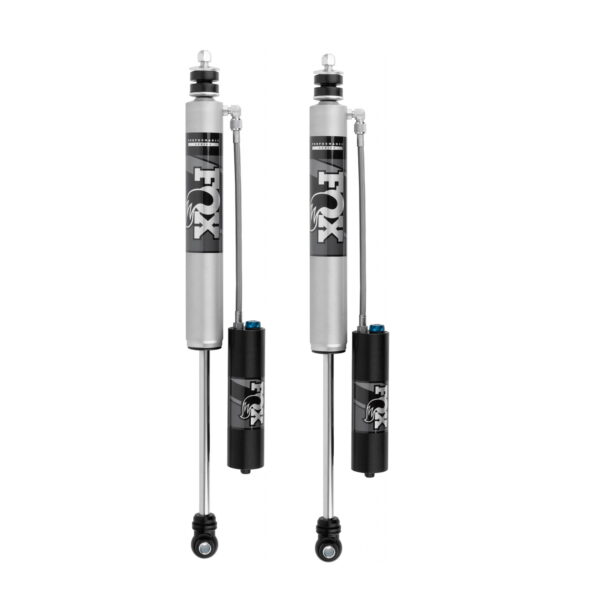

Fox Perf Series 2.0 Smooth Body 4-5″ Front Lift Shocks for 2017-2025 Ford F-250/350 4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Description
Fox Perf Series 2.0 Smooth Body 4-5″ Front Lift Shocks for 2017-2025 Ford F-250/350 4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Fox Perf Series 2.0 Smooth Body 4-5 inches Front Lift Shocks for 2017-2025 Ford F-250/350 4WD Super Duty Cab and Chassis with Reservoir Compression Adjustable

Part Number: 985-26-163

Summary: The FOX Performance Series 2.0 Reservoir shock utilizes an aluminum body and external reservoir to deliver race-inspired performance for the Ford Super Duty. This system features Compression Adjustable tuning, allowing users to dial in damping characteristics via the Low Speed Compression (LSC) adjuster. The heat-dissipating clear-anodized aluminum body and increased oil capacity from the external reservoir ensure predictable ride quality even in the roughest road conditions.

Features

• Low Speed Compression (LSC) Adjuster: An integrated adjustment knob provides user-tunable damping control to ensure versatility across different terrain and load requirements.
• External Reservoir: A 2.0 inches smooth bore 6061-T6 aluminum reservoir provides increased oil and nitrogen capacity to ensure consistent performance and a race-derived aesthetic.
• Impact Extruded Aluminum Body: The 2.0 inches 6061-T6 aluminum construction provides superior heat dissipation compared to steel bodies to ensure resistance to rust over time.
• High-Flow Piston: A race-developed high-flow piston design provides application-specific valving to ensure a predictable and controlled ride.
• Hard Chrome Plated Shaft: A 5/8 inches heat-treated alloy steel shaft provides a durable surface finish to ensure long-term seal integrity.

Technical Specifications

Fitment

• 2017-2025 Ford F-250 Super Duty 4WD Cab and Chassis
• 2017-2025 Ford F-350 Super Duty 4WD Cab and Chassis
• Note: Includes Universal Bracket. Specifically for 4-5 inches Front Lift applications.

What’s Included

• Includes 2 Shocks
• Black-anodized reservoir mounting clamps
• Universal Bracket

Why Choose This Product?

• Engineering Advantage: The combination of an external reservoir and 6061-T6 aluminum construction allows for significantly higher heat capacity and faster dissipation than conventional twin-tube shocks.
• Performance Benefit: The LSC adjuster allows the driver to manually tune the suspension’s compression, providing a customizable balance between street comfort and off-road control.

Frequently Asked Questions

What does the LSC adjuster do?
The Low Speed Compression (LSC) adjuster allows you to manually tune the shock’s damping to customize ride quality and handling based on your specific needs.

Why is the shock body made of aluminum?
The 6061-T6 aluminum body dissipates heat faster than steel and is clear-anodized to provide a durable finish that resists rust over time.

Does this shock include mounting hardware for the reservoir?
Yes, it includes black-anodized, CNC-machined 6061-T6 billet aluminum mounting clamps and a universal bracket.
