Rancho RS5000X 5″ Lift Shocks for 2017-2020 Ford F-250 4WD

Description

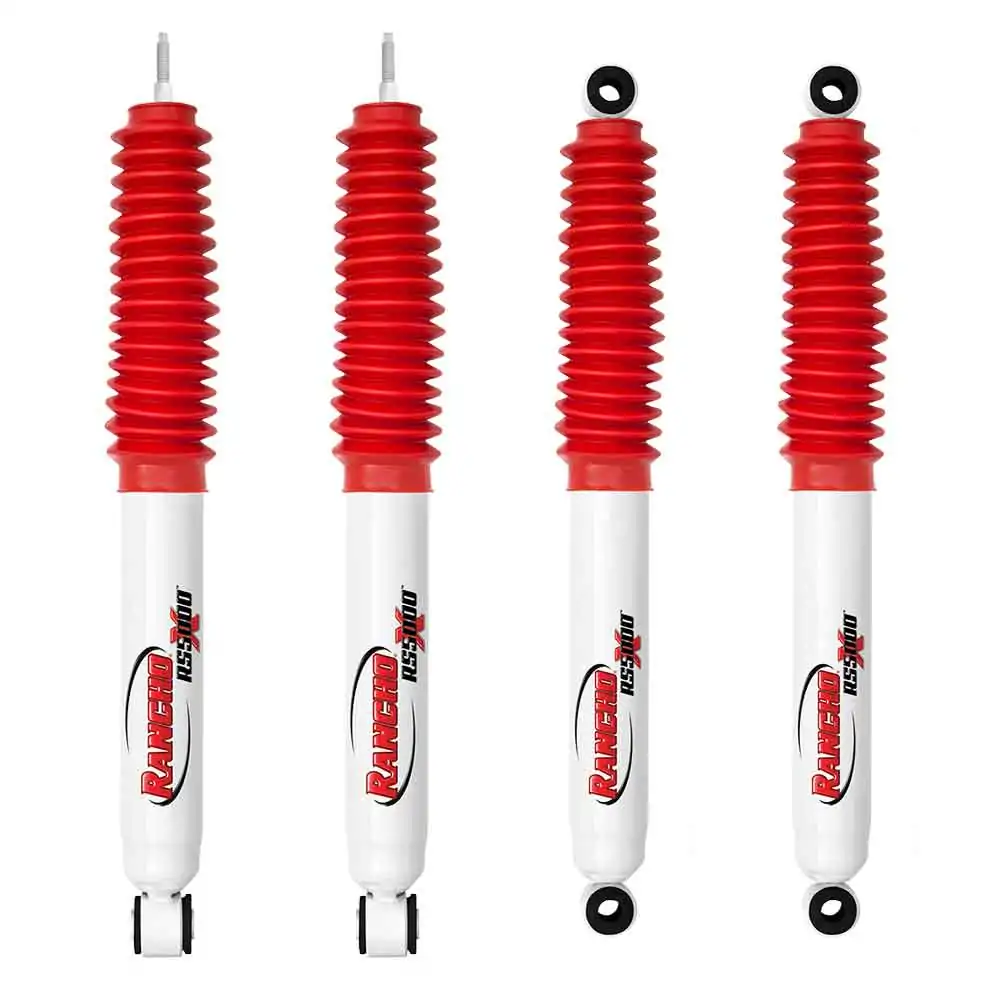

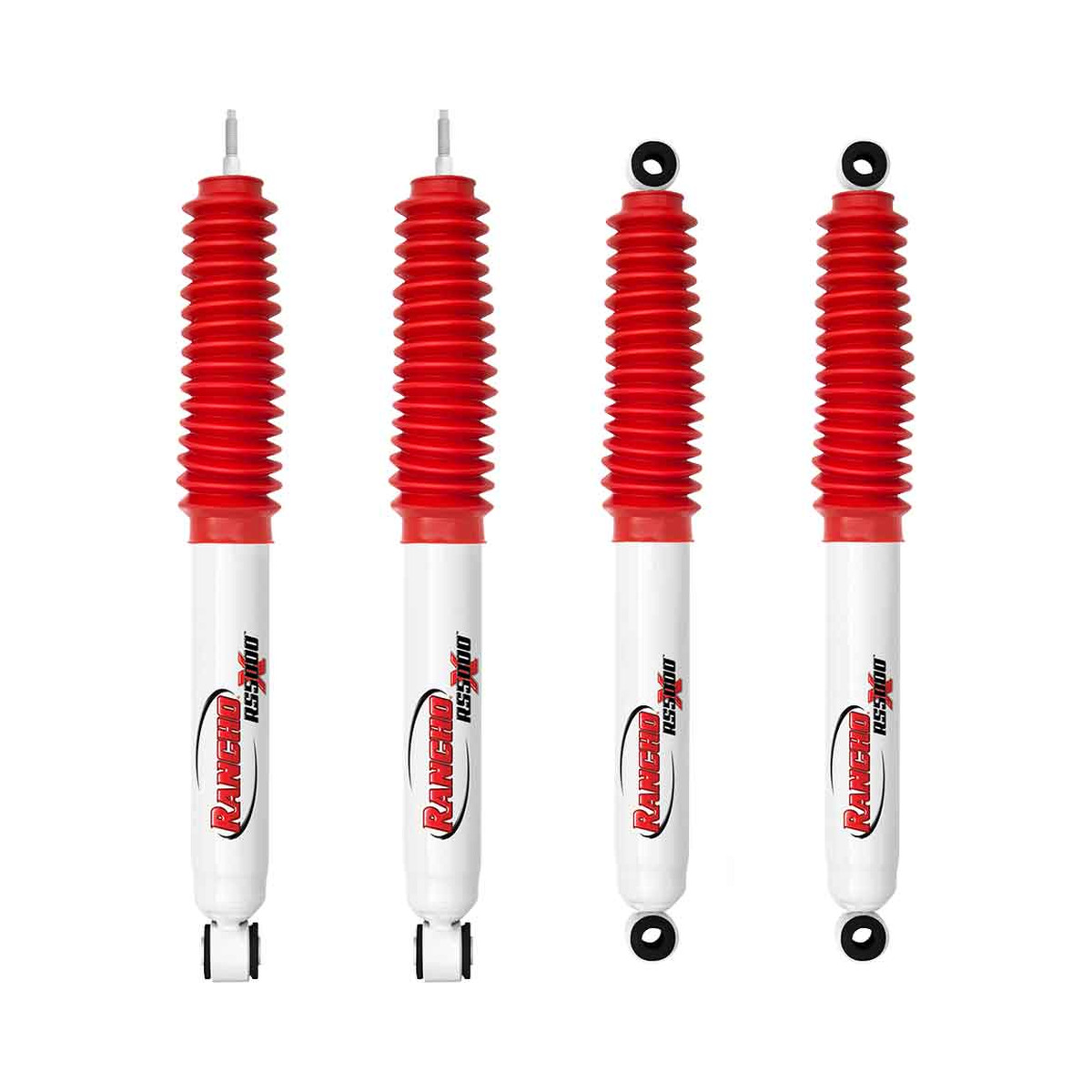

Rancho RS5000X 5″ Lift Shocks for 2017-2020 Ford F-250 4WD

Rancho RS5000X 5″ Lift Shocks for 2017-2020 Ford F-250 4WD

Part Number: RS55044

Summary: The Rancho RS5000X Series delivers a sophisticated twin-tube gas pressurized design specifically tuned for heavy-duty Ford trucks. By utilizing a unique Cross-Tune Technology, these shocks manage the high unsprung weight of the F-250/F-350 platform to eliminate harshness over small bumps. This complete set is configured for vehicles with a 5-inch lift, providing the necessary extension travel to maintain ride quality on and off-road.

Features

• Cross-Tune Technology: A progressive engagement valving system provides a custom-tuned damping curve to ensure consistent control during high-velocity impacts.
• Gas Pressurization: High-pressure nitrogen gas charge provides a reduction in aeration and foaming to ensure fade-free performance in demanding environments.
• 2.25-inch Reserve Tube: An increased fluid capacity design provides greater heat dissipation to ensure stable damping forces under heavy loads.
• Nitro-Carburized Piston Rod: A heavy-duty 16mm rod construction provides superior corrosion resistance and durability to ensure long-term seal integrity.

Technical Specifications

Fitment

• 2017-2020 Ford F-250 4WD
• 2017-2020 Ford F-350 4WD
• Note: Fits models with Single Rear Wheels (SRW) only. Excluding Chassis Cab models.

What’s Included

• Includes 4 Shocks
• Protective Red Dust Boots
• Mounting Hardware (Where Applicable)

Why Choose This Product?

• Engineering Advantage: Rancho’s application-specific valving is engineered to counteract the “skip” often felt in unloaded heavy-duty trucks, providing a more planted feel.
• Performance Benefit: The robust twin-tube design allows for outer tube deformation without seizing the inner pressure tube, ensuring you aren’t stranded if a shock body is dented by debris.

Related Products

RS5000X (Front):
Rancho RS5000X 5" Front Lift Shocks for 2017-2020 Ford F-250 4WD

RS5000X (Rear):
Rancho RS5000X 5" Rear Lift Shocks for 2017-2020 Ford F-250 4WD

RS7MT (Front):
Rancho RS7MT 5" Front Lift Shocks for 2017-2020 Ford F-250 4WD

RS90000XL (Rear):
Rancho RS90000XL 5" Rear Lift Shocks for 2017-2020 Ford F-250 4WD

RS90000XL (Front):
Rancho RS90000XL 5" Front Lift Shocks for 2017-2020 Ford F-250 4WD

RS90000XL (Kit):
Rancho RS90000XL 5" Lift Shocks for 2017-2020 Ford F-250 4WD

Frequently Asked Questions

Will these shocks lift my Ford truck?
No, these shocks do not create lift; they are specifically lengthened and configured for a Ford F-250/F-350 already equipped with a 5-inch suspension lift.

Are these shocks suitable for towing?
Yes, the RS5000X series features a large 2.25-inch reserve tube and gas pressurization to handle the increased heat and damping requirements of towing and hauling.

Do these include the red dust boots?
Yes, all Rancho RS5000X shocks come standard with the signature red protective dust boots to shield the piston rod from road debris.
