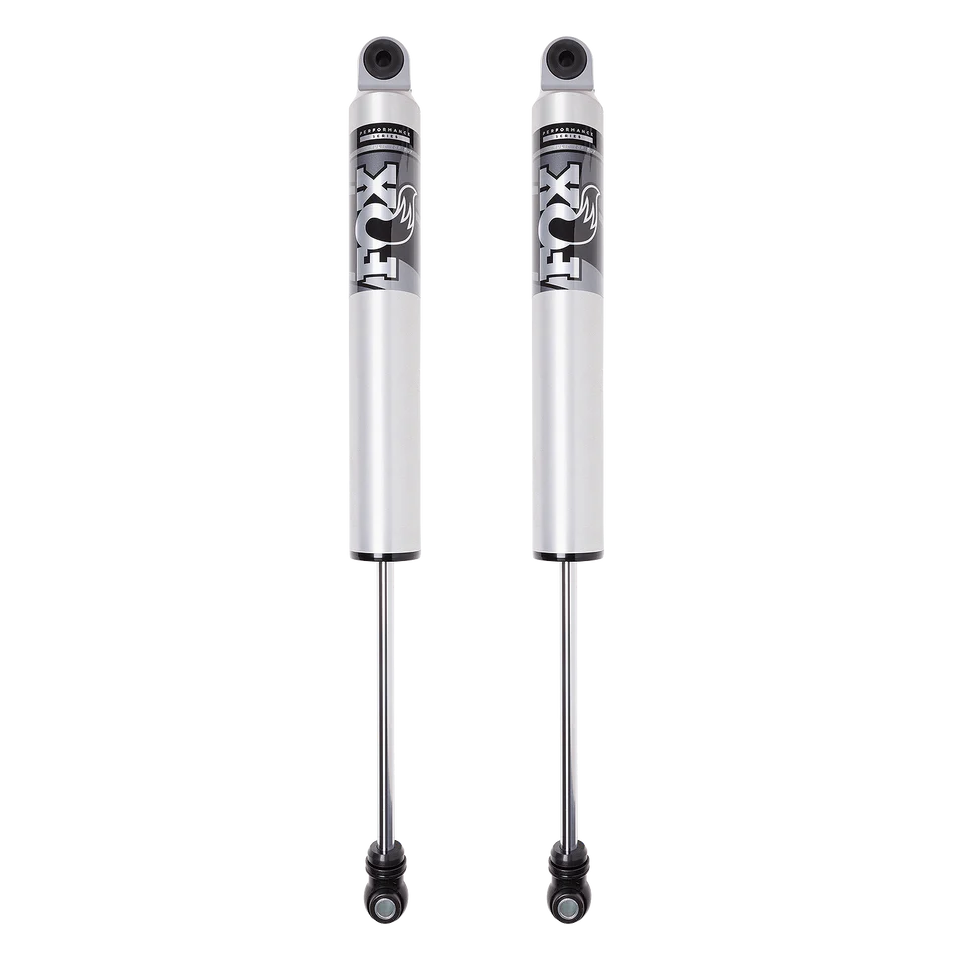

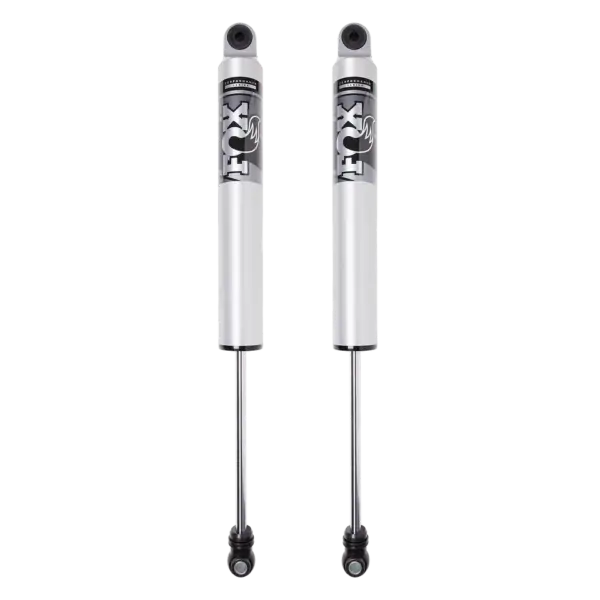

FOX 2.5 Performance HTO 0-1.5″ Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Extended Cab Pickup 4WD

Description
FOX 2.5 Performance HTO 0-1.5″ Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Extended Cab Pickup 4WD

FOX 2.5 Performance HTO 0-1.5 inches Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Extended Cab Pickup 4WD

Part Number: 987-24-001

Summary: The FOX 2.5 Performance Series HTO shock is a bolt-on solution engineered to enhance both on and off-road performance for the Ford F-350 Super Duty. These shocks feature position-sensitive technology and vehicle-specific valving to provide superior damping control across various terrains. By utilizing a 2.5-inch aluminum body and Hydraulic Top Out (HTO) technology, these shocks address harsh top-outs and improve ride comfort, especially for vehicles equipped with larger tires or minor lifts.

Features

• Hydraulic Top Out (HTO): A secondary shim stack provides position-sensitive rebound damping control to slow down shock shaft speed and reduce harsh top-outs.
• Internal Floating Piston (IFP): The internal floating piston (IFP) separates shock oil from high-pressure nitrogen to eliminate oil aeration and optimize damping.
• Aluminum Shock Body: A 2.5-inch 6061-T6 impact extruded aluminum body provides efficient heat dissipation and corrosion resistance with Type II clear-anodized plating.
• Hard Chrome Shaft: A 5/8 inches hard chrome plated heat-treated alloy steel shaft provides a durable surface for consistent seal performance.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 Super Duty Extended Cab Pickup 4WD
• Note: Lift: 0-1.5 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of position-sensitive HTO technology allows for specialized rebound control that standard shocks cannot provide, managing the increased mass of heavier wheel and tire combinations.
• Performance Benefit: Drivers experience increased damping capacity and reduced harshness during suspension extension, ensuring a more controlled and comfortable ride on and off the pavement.

Frequently Asked Questions

What is the benefit of the HTO technology?
Hydraulic Top Out (HTO) technology uses a secondary shim stack to slow shock shaft speed, which reduces harsh top-outs and increases comfort, particularly on lifted applications.

Are these shocks compatible with my stock F-350?
Yes, these shocks are designed for 2017-2025 Ford F-350 Super Duty Extended Cab 4WD models with 0 to 1.5 inches of rear lift.

How does the IFP design improve performance?
The Internal Floating Piston (IFP) separates the nitrogen gas from the shock oil, which prevents the oil from foaming and ensures consistent damping performance.
