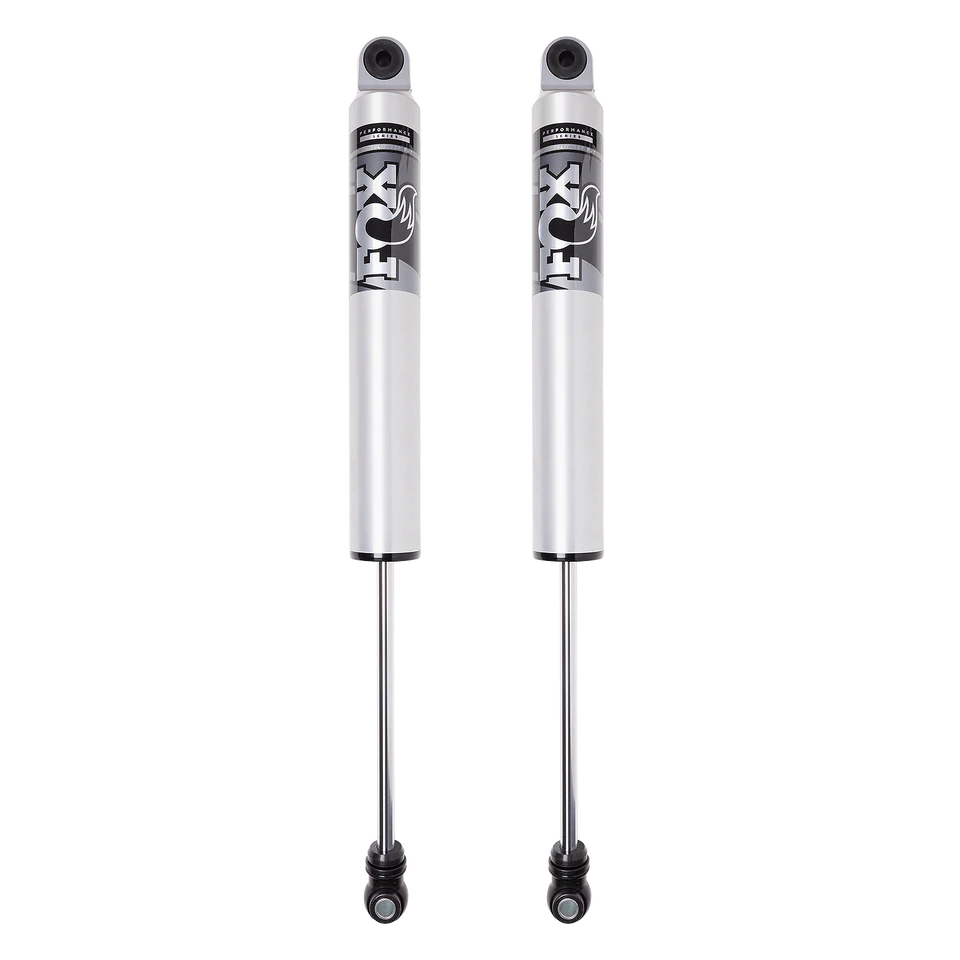

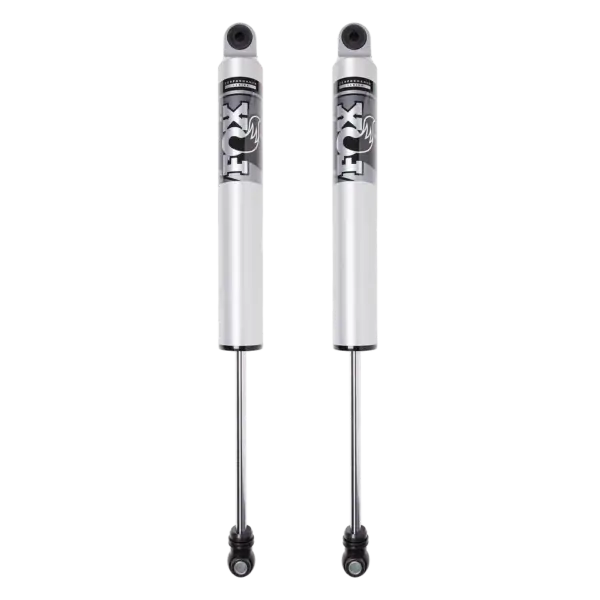

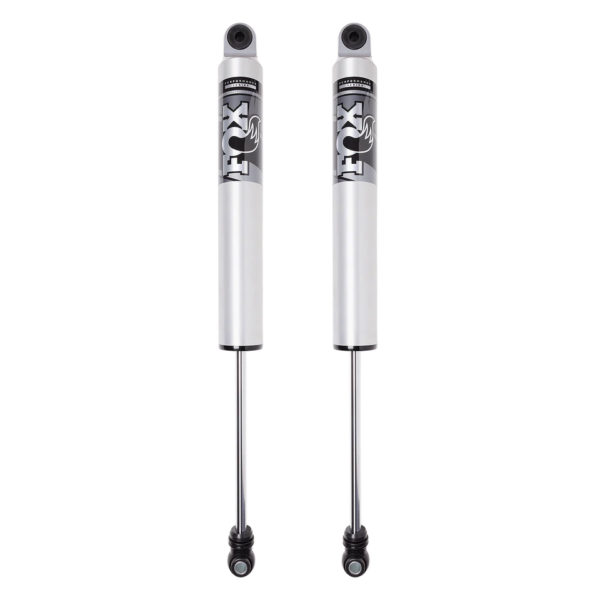

FOX 2.5 Performance HTO 0-1.5″ Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Standard Cab Pickup 4WD

Description
FOX 2.5 Performance HTO 0-1.5″ Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Standard Cab Pickup 4WD

FOX 2.5 Performance HTO 0-1.5 inches Rear Lift Shocks for 2017-2025 Ford F-350 Super Duty Standard Cab Pickup 4WD

Part Number: 987-24-001

Summary: The FOX 2.5 Performance Series HTO is a high-performance bolt-on shock designed specifically for the Ford F-350 Super Duty. Utilizing position-sensitive technology and vehicle-specific valving, these shocks address the need for improved damping capacity on and off-road. The integration of Hydraulic Top Out (HTO) technology provides advanced rebound control, ensuring a smoother ride and reduced harshness for vehicles equipped with larger tires or mild rear lifts.

Features

• Hydraulic Top Out (HTO): A secondary rebound shim stack provides position-sensitive damping to ensure reduced harsh top-outs and increased comfort during extension.
• Internal Floating Piston (IFP): The internal mono-tube design separates shock oil from high-pressure nitrogen to ensure consistent, fade-free damping performance.
• Aluminum Shock Body: 2.5-inch 6061-T6 impact extruded aluminum provides efficient heat dissipation and Type II clear-anodized corrosion resistance to ensure long-term durability.
• High-Flow Piston: Velocity-sensitive damping technology provides optimized control across various terrain types to ensure a balanced ride on and off the pavement.

Technical Specifications

Fitment

• 2017-2025 Ford F-350 Super Duty Standard Cab Pickup 4WD
• Note: Lift: 0-1.5 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The 2.5-inch large-bore aluminum body and HTO secondary shim stack offer superior heat management and position-sensitive rebound control compared to standard shocks.
• Performance Benefit: Drivers experience significantly reduced harshness during suspension extension and improved damping stability when running heavier, aggressive tire setups.

Frequently Asked Questions

What is HTO technology?
Hydraulic Top Out (HTO) is a position-sensitive rebound damping system that forces oil through a secondary shim stack to slow down the shock shaft speed, reducing harsh top-out sensations.

What are the benefits of the aluminum body?
The 6061-T6 aluminum body dissipates heat more efficiently than steel and features Type II anodized plating to prevent corrosion.

Does this shock work with lifted trucks?
This specific model is configured for Ford F-350 Super Duty applications with 0 to 1.5 inches of rear lift.
