AirLift Rear Helper Spring Kit for 2023, 2024 Ford F-350 Super Duty 4WD – LoadLifter 7500 XL Ultimate

Description
AirLift Rear Helper Spring Kit for 2023, 2024 Ford F-350 Super Duty 4WD – LoadLifter 7500 XL Ultimate

AirLift Helper Spring Kit for 2023-2024 Ford F-350 Super Duty 4WD

Part Number: 57554

Summary:

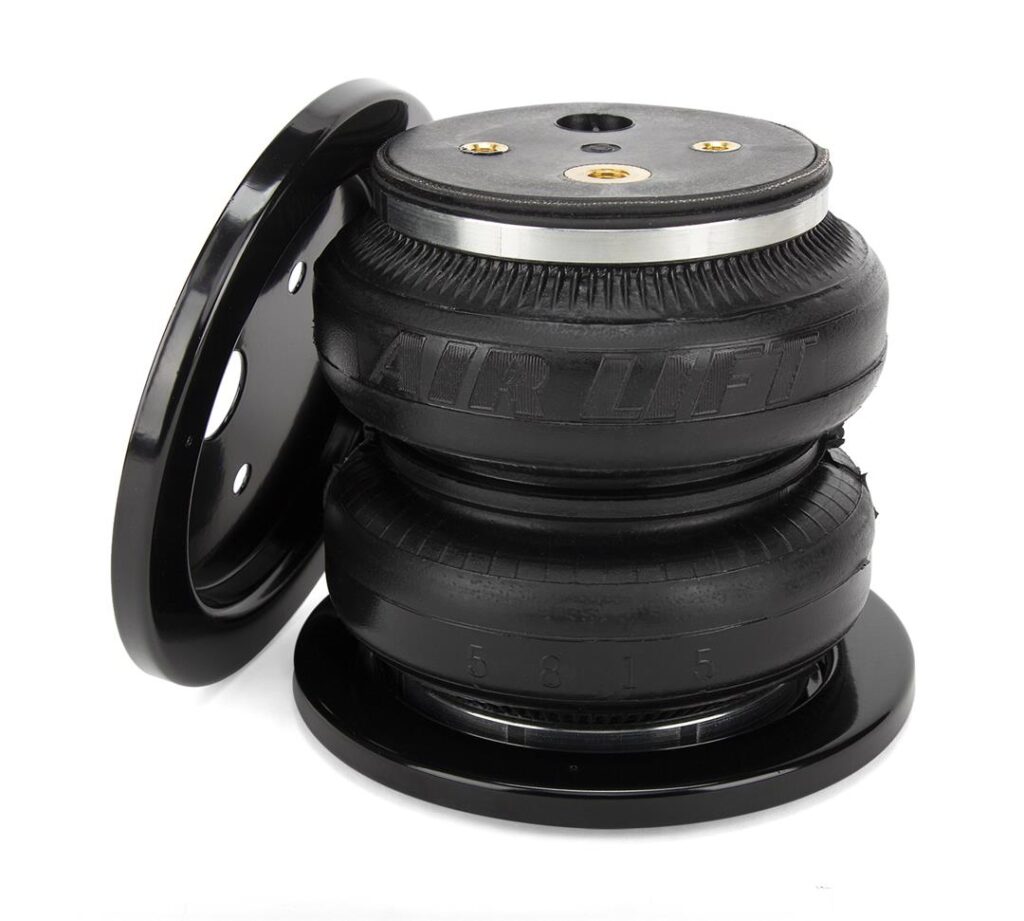

The AirLift LoadLifter 7500 XL Ultimate is a frame-mounted helper spring kit designed for load-leveling support with up to 7,500 pounds of capacity. This system features 7-inch double-bellows air springs with an integrated internal jounce bumper to prevent bottoming out. The kit is air-adjustable from 5 to 100 PSI to accommodate varying load requirements.

This product is intended for load support or component replacement only and does not alter factory suspension geometry unless explicitly stated.

Features

• Load-Leveling Capacity: Provides up to 7,500 pounds of leveling capacity.
• Internal Jounce Bumper: Built-in bumper provides additional support and prevents the vehicle from bottoming out.
• Adjustable Pressure: Air adjustable range from 5 to 100 PSI for precise control.
• Roll Plates: Includes roll plates to protect the air springs and help increase load capacity of the springs by up to 10 percent.
• Installation: Designed for a bolt-on installation using existing frame holes with no drilling required for most applications.

Technical Specifications

Fitment

• 2023-2024 Ford F-350 Super Duty 4WD

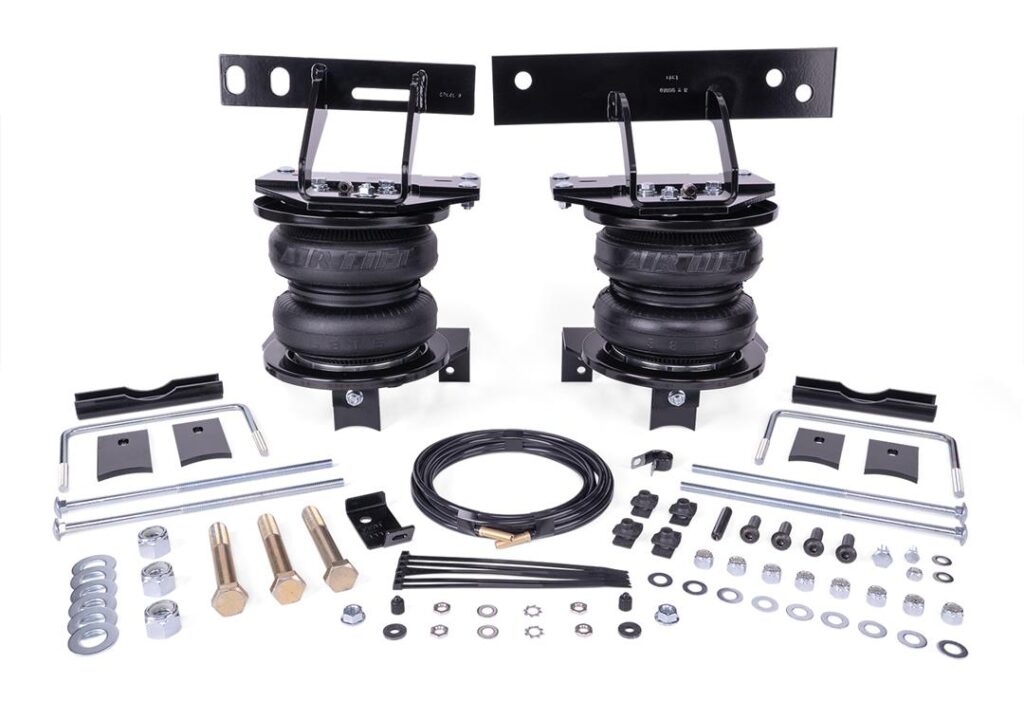

What’s Included

• Air Springs

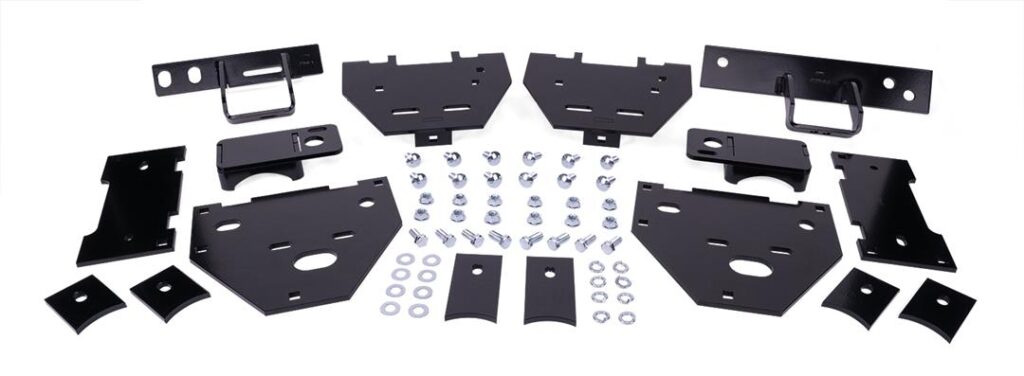

• Brackets
• Roll Plates
• Valves
• Fittings
• Heat Shield
• Installation Hardware
• Air Lines

Why This Product Exists

• Purpose: This product addresses vehicle sag and instability when carrying heavy loads by providing up to 7,500 pounds of leveling capacity.
• Application: Intended for use on 2023-2024 Ford F-350 Super Duty 4WD models and is compatible with most 5th-wheel and gooseneck hitches.

Frequently Asked Questions

Does this product increase vehicle lift?
No. This product does not increase ride height unless explicitly stated by the manufacturer.

Is this product intended for towing?
Yes. This product is designed for load-leveling and is compatible with most 5th-wheel and gooseneck hitches.

Does this product change GVWR?
No. GVWR is determined by the vehicle manufacturer and is not altered by this product.
