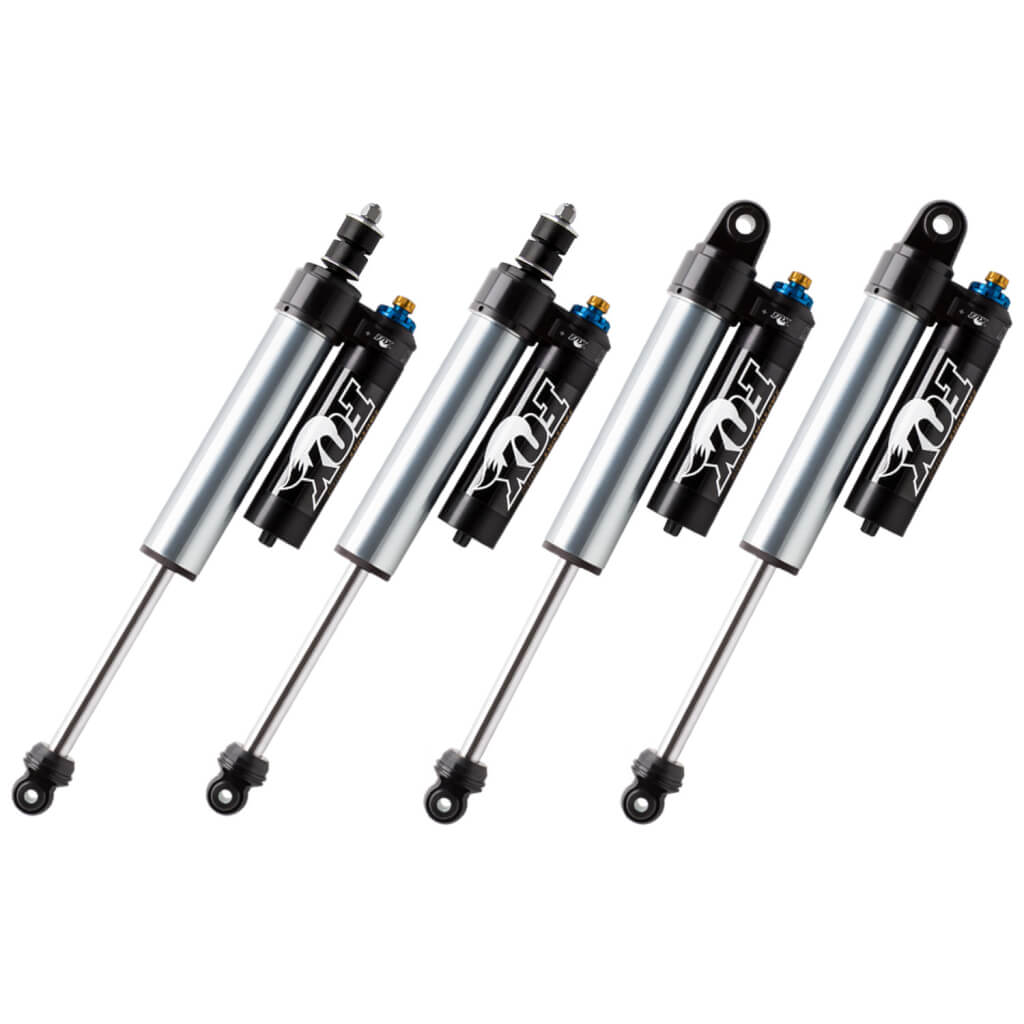

FOX 2.5 Factory Res Adj 4-6 Lift Shocks 2005-2007 Ford F450

Description
FOX 2.5 Factory Res Adj 4-6 Lift Shocks 2005-2007 Ford F450

FOX 2.5 Factory Res Adj 4-6 Lift Shocks 2005-2007 Ford F450

Part Number: 883-26-013

Summary: The FOX 2.5 Factory Series Reservoir shocks with Dual Speed Compression (DSC) adjusters are engineered for the 2005-2007 Ford F450 equipped with a 4-6 inch lift. These smooth body shocks utilize external reservoirs to increase oil and nitrogen capacity, delivering consistent damping in various terrains. The integrated DSC technology allows for precise manual tuning of high and low-speed compression to match specific driving conditions and vehicle loads.

Features

• Dual Speed Compression (DSC) Adjuster: Two adjuster knobs provide 12 separate low-speed and 10 high-speed compression levels to ensure remarkable versatility and precise tuning.
• External Reservoir: Anodized aluminum construction allows for increased oil and nitrogen capacity to provide enhanced ride quality and heat management.
• Smooth Bore Body: Honed seamless alloy body is zinc-plated and double clear coated to ensure a long-lasting finish and durability.
• Alloy Steel Shaft: 7/8-inch hard chrome plated, heat-treated alloy steel provides high strength to ensure reliable performance in brutal conditions.
• High-Flow Piston: Race-developed piston design works with application-specific valving to ensure maximized performance for trucks and SUVs.

Technical Specifications

Fitment

• 2005-2007 Ford F450
• Note: Designed for vehicles with 4-6 inches of lift.

What’s Included

• Includes 4 Shocks (2 Front and 2 Rear)
• External Reservoirs and DSC Adjusters

Why Choose This Product?

• Engineering Advantage: These shocks utilize a DSC Adjuster and external reservoir system derived from off-road race technology, providing a high-capacity damping solution that remains stable under thermal stress.
• Performance Benefit: Drivers gain the ability to manually adjust suspension firmness for different environments, resulting in improved control and ride quality both on and off the pavement.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to manually tune your shocks with twelve low-speed and ten high-speed compression levels using two simple adjuster knobs.

Are these shocks compatible with a stock height Ford F450?
No, these shocks are specifically configured and valved for 2005-2007 Ford F450 trucks with a 4-6 inch lift.

What are the benefits of the external reservoir?
The anodized aluminum external reservoir increases the shock’s oil and nitrogen capacity, which helps with heat dissipation and provides a race-proven look.
