FOX Factory Res Adj 4-6 Front Lift Shocks 05-07 Ford F450 Cab Chassis

Description
FOX Factory Res Adj 4-6 Front Lift Shocks 05-07 Ford F450 Cab Chassis

FOX Factory Res Adj 4-6 Front Lift Shocks 05-07 Ford F450 Cab Chassis

Part Number: 883-26-013

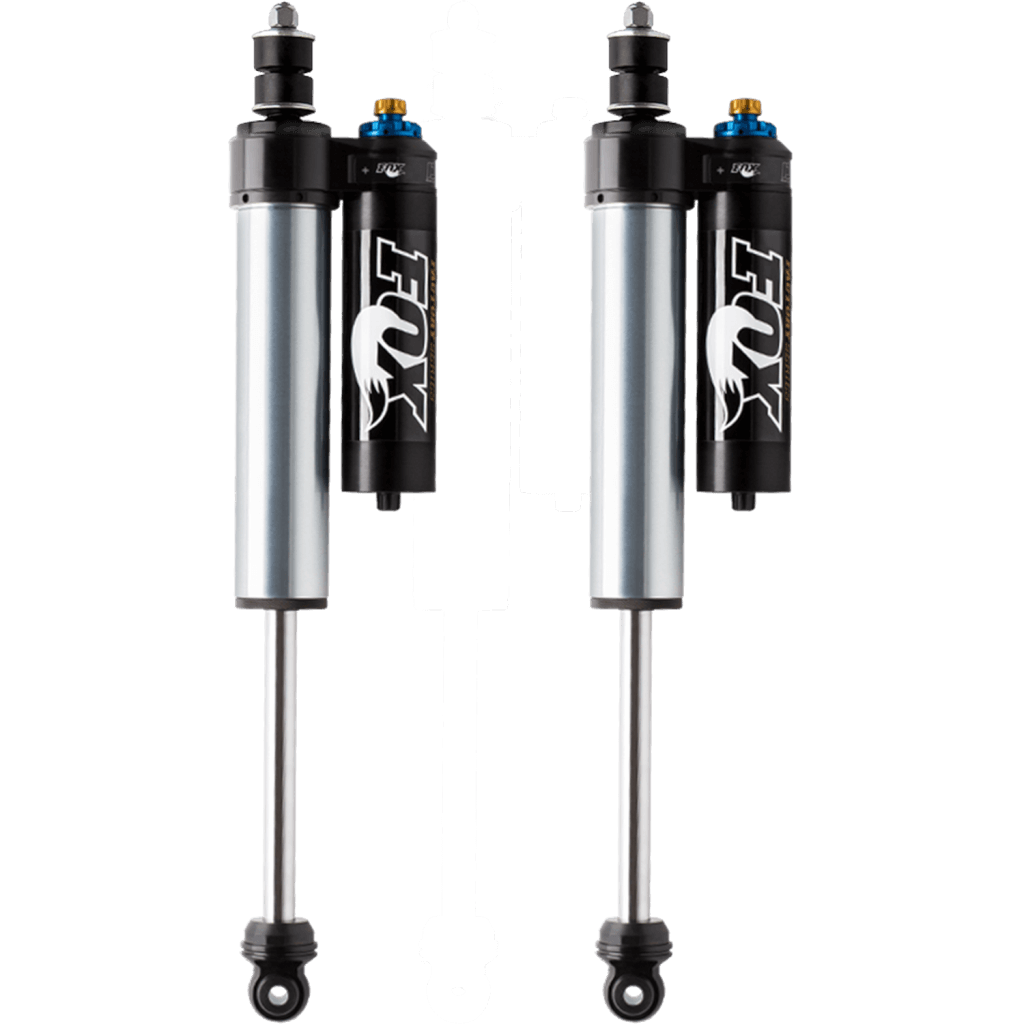

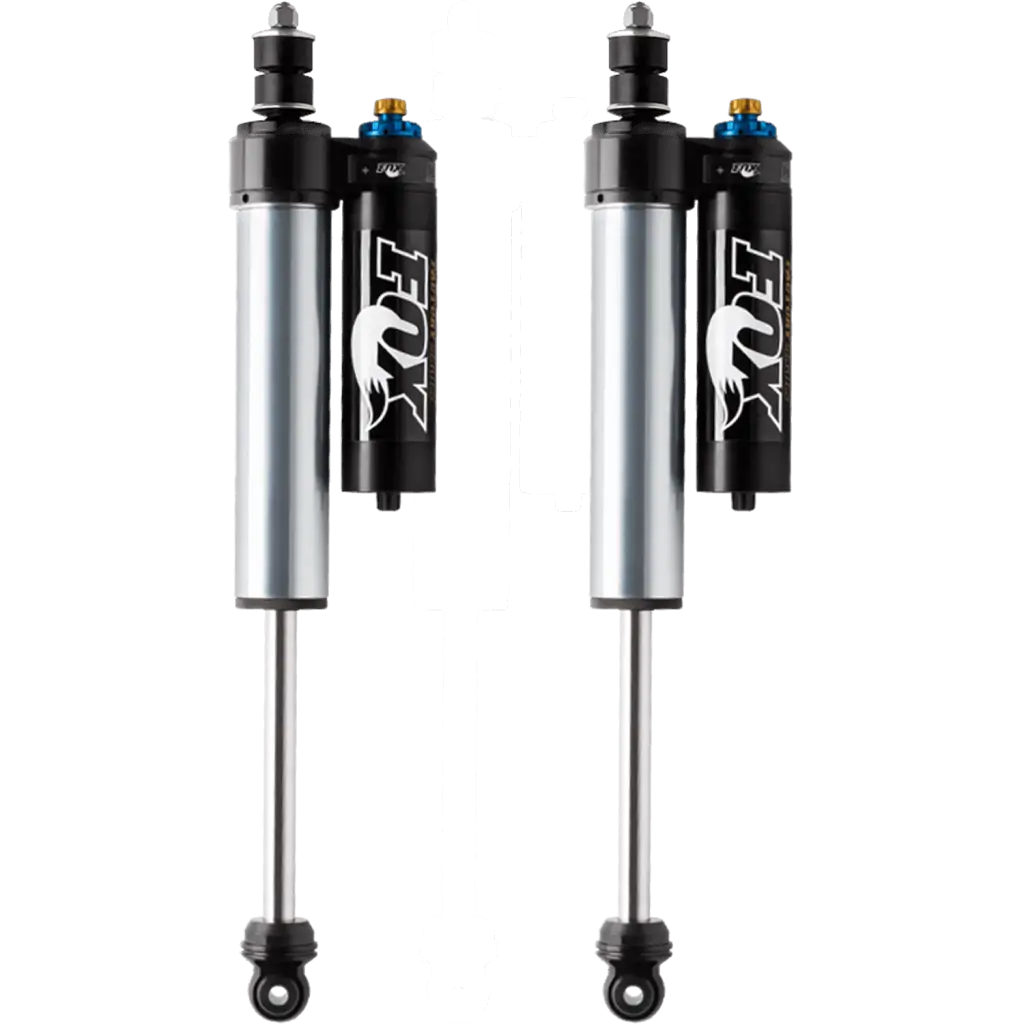

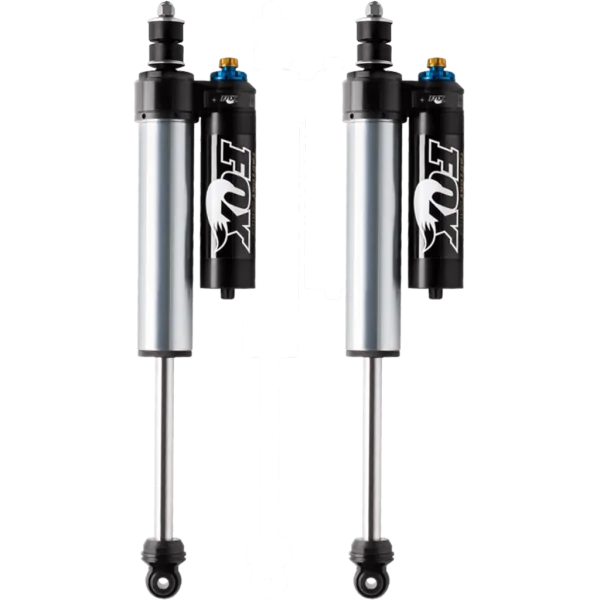

Summary: These FOX 2.5 Factory Series Reservoir smooth body shocks are engineered for the 2005-2007 Ford F450 Cab Chassis equipped with 4-6 inches of front lift. Featuring a Dual Speed Compression (DSC) adjuster, these shocks provide remarkable versatility by allowing for precise tuning of high and low-speed compression. The external reservoir design increases oil and nitrogen capacity to deliver enhanced ride quality and controlled damping in various terrains.

Features

• Dual Speed Compression (DSC) Adjuster: Two adjuster knobs provide twelve separate low-speed and ten high-speed compression levels to ensure precise tuning and versatility.
• External Reservoir: Anodized aluminum construction provides increased oil and nitrogen capacity to ensure improved heat management and a race-inspired look.
• Piston Design: Race-developed high-flow piston provides application-specific valving to ensure maximized performance and control.
• Shaft Construction: 7/8-inch hard chrome plated heat-treated alloy steel provides high strength to ensure durability in demanding conditions.
• Body Finish: Zinc-plated and double clear coated seamless alloy body provides a long-lasting finish to ensure protection against the elements.

Technical Specifications

Fitment

• 2005-2007 Ford F450 Cab Chassis
• Note: Designed for vehicles with 4 inches to 6 inches of front lift.

What’s Included

• Includes 2 Shocks
• External Reservoirs and DSC Adjusters

Why Choose This Product?

• Engineering Advantage: The inclusion of the DSC Adjuster allows for manual tuning of damping characteristics without tools, supported by a 2.5-inch smooth bore honed seamless alloy body for consistent performance.
• Performance Benefit: Drivers gain precise control over their vehicle’s suspension response, allowing for a transition between street comfort and off-road stability.

Frequently Asked Questions

How does the DSC adjuster work?
The Dual Speed Compression (DSC) adjuster uses two knobs to allow for twelve separate low-speed and ten high-speed compression levels, providing precise tuning for different terrains.

What are the benefits of the external reservoir?
The anodized aluminum external reservoir increases the shock’s oil and nitrogen capacity, which improves damping performance and provides a race-proven appearance.

What lift height are these shocks compatible with?
These shocks are specifically designed for the front of a 2005-2007 Ford F450 Cab Chassis with 4 to 6 inches of lift.
