Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

SKU: ec38db74a012
5 out of 5 based on 4 customer ratings
(4 customer reviews)
98-'11 Ford Ranger 2WD Bilstein 4600 3" Front & 0-1" Rear Lift Shocks-24-196260-24-196277
98-'11 Ford Ranger 2WD Bilstein 4600 3" Front & 0-1" Rear Lift Shocks-24-196260-24-196277

Description
Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

Part Number(s): 24-196260, 24-196277

Summary: Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers for the 1998-2011 Ford Ranger RWD. Featuring a monotube design, these shocks provide consistent, fade-free performance and are tuned specifically for light trucks and SUVs. This set is configured for compatibility with 0-3″ front lift (specifically spindle lifts) and 0-1″ rear lift heights. The B6 4600 series utilizes a velocity-sensitive, digressive piston to offer a significant improvement in ride quality, handling, and comfort over factory equipment.

Features

  • Monotube Design: Single-tube construction provides consistent fade-free performance to ensure reliable damping under repeated impacts and extended use.
  • Digressive Piston: Velocity-sensitive, digressive piston design reacts to changing road conditions to ensure optimal performance and handling.
  • Application Specific Tuning: Custom valving for the Ford Ranger RWD provides improved ride quality and comfort to ensure the best possible driving experience.

Technical Specifications

Specification Value
Series B6 4600
Position Front and Rear
Internal Design Monotube
Finish Yellow Paint
Reservoir No
Body Diameter 2.0 in.
Piston Diameter 46mm
Boot Included Blue Straight
Adjustable Damping Non-Adjustable
Country of Origin MX
Warranty Limited Lifetime Warranty

Fitment

  • 1998-2011 Ford Ranger RWD
  • Note: Fits Ford Ranger RWD with front COIL suspension only.
  • Note: Front shocks are for Stock Height vehicles or vehicles with 0-3″ Spindle Lift.
  • Note: Lower control arm bolt spacing is 62 mm.
  • Note: Rear compression bump stop on chassis may need to be modified to prevent damage to the shock absorber.
  • Note: Will not fit 2011 Ranger Sport RWD.
  • Compatible with 0-3″ front lift and 0-1″ rear lift.

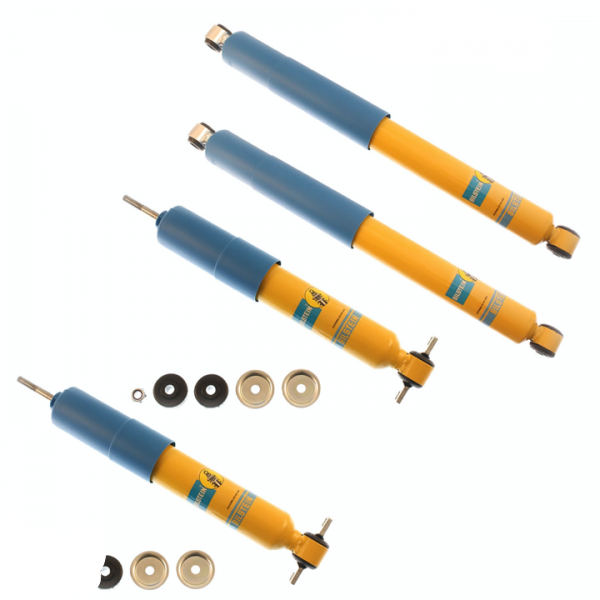

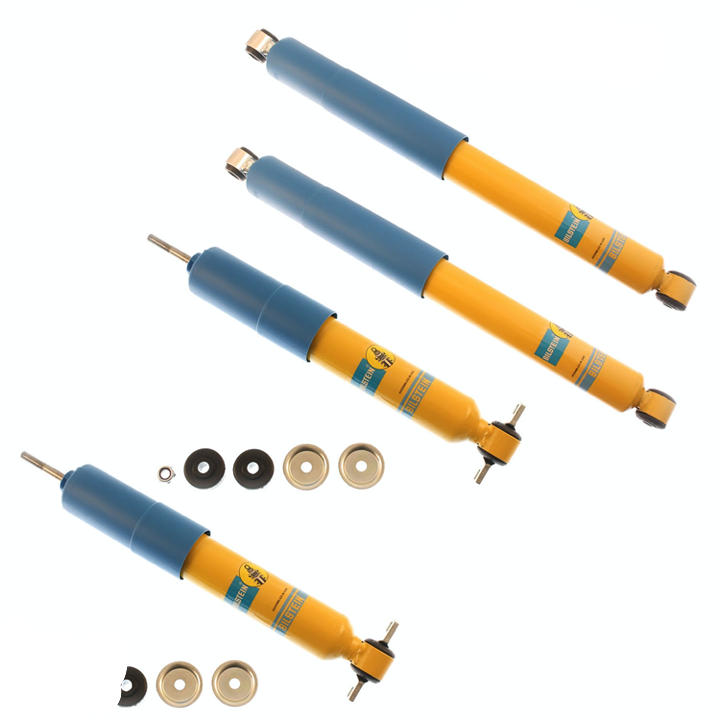

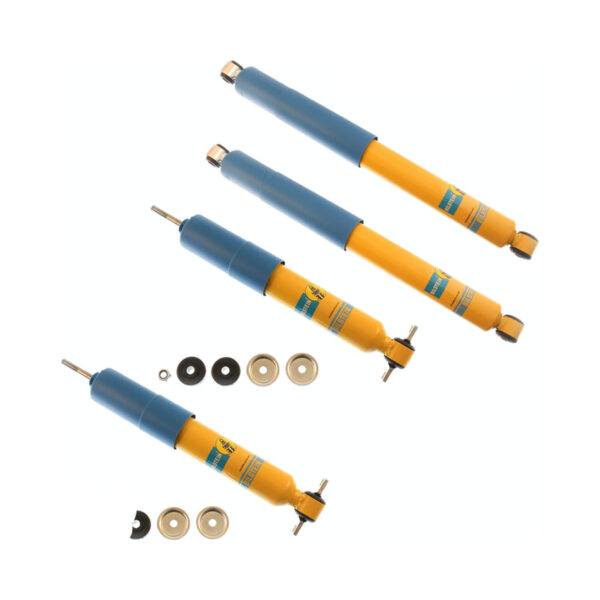

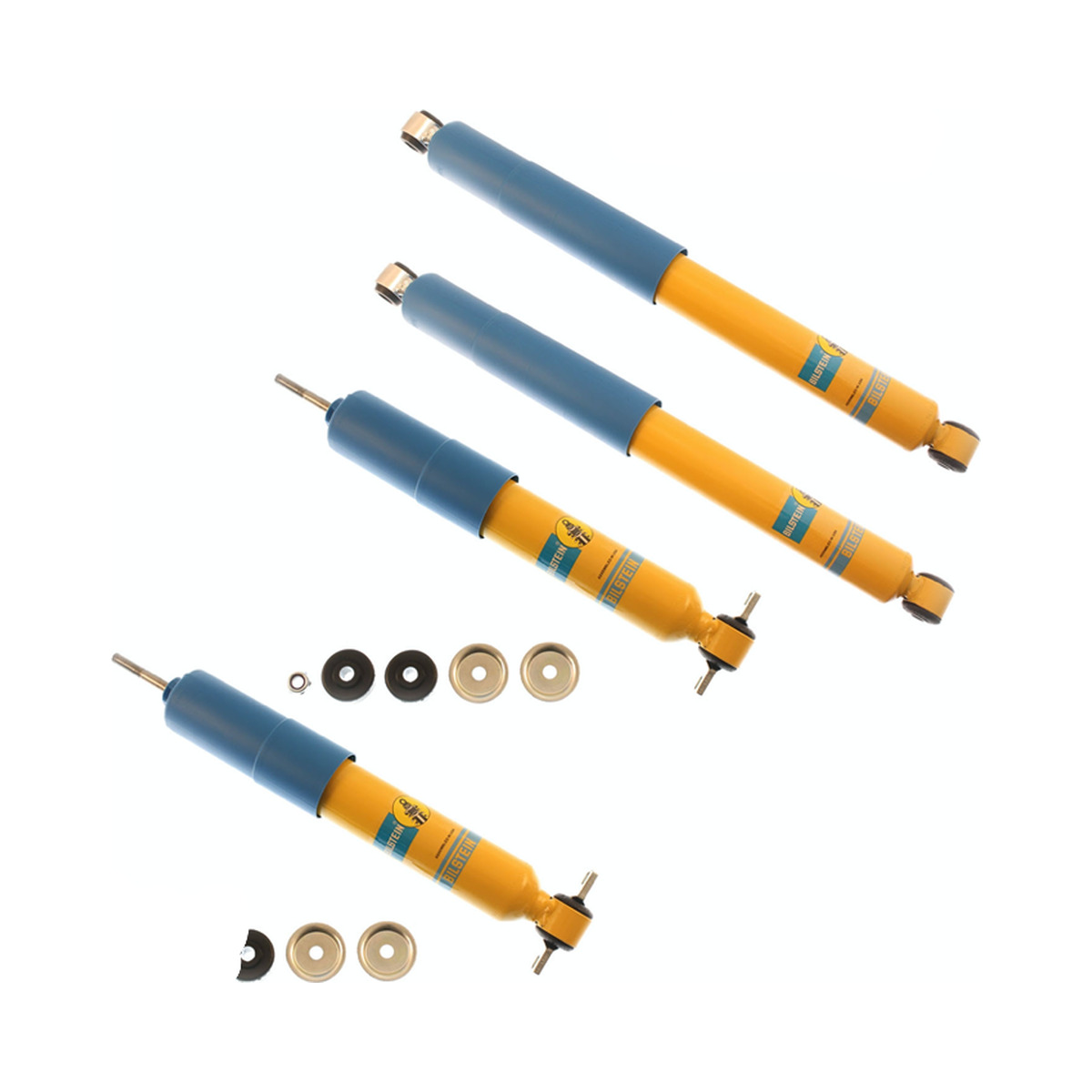

What’s Included

  • Includes 4 Shocks
  • 2 x Front Shocks (Part #24-196260)
  • 2 x Rear Shocks (Part #24-196277)

Interchange Numbers

This product is compatible with the following part numbers:

  • AutoZone 165454
  • Bilstein 24-185271
  • Bilstein BE5-2791
  • Ford 3L5Z 18124-BA
  • Ford 3L5Z 18124-CA
  • Ford 3U2Z 18124-BD
  • Ford 7L5Z 18124-A
  • Ford 8L5Z 18124-AB
  • Ford AU2Z 18V124-BJ
  • Ford XL5Z 18124-AA
  • Ford XL5Z 18124-BA
  • Ford XL5Z 18124-DA
  • Pro Comp Suspension 314515
  • Pro Comp Suspension 914515
  • Pro Comp Suspension MX6136
  • Rancho RS5229
  • Rancho RS999229

Why Choose This Product?

  • OE Replacement: Direct fit replacement for stock OE shocks, ensuring easy installation and perfect compatibility.
  • Monotube Advantage: Monotube design provides consistent damping and fade resistance compared to twin-tube OE shocks.
  • Performance Upgrade: Improved ride quality, handling, and comfort over factory shocks without modification required.
  • Bilstein Quality: German engineering and manufacturing standards ensure long-lasting performance and reliability.

Frequently Asked Questions

Will these shocks lift my Ford Ranger?
No, these shocks do not create lift. They are designed to be compatible with vehicles at stock height or those already equipped with a 0-3″ front spindle lift and 0-1″ rear lift.

Do these shocks fit the Ranger Sport RWD?
No, these specific part numbers are listed as not fitting the 2011 Ranger Sport RWD models.

What type of suspension must my truck have for these to fit?
These shocks are exclusively for Ford Ranger RWD models equipped with front coil spring suspension. They will not fit models with torsion bar front suspension.

Are these shocks adjustable?
No, the Bilstein B6 4600 series features a non-adjustable design with application-specific valving for consistent performance.

Customer reviews

Rated 5 out of 5 stars
4 reviews
5 stars 4 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

4 reviews for Bilstein 4600 0-3″ Front, 0-1″ Rear Lift Shocks for 1998-2011 Ford Ranger RWD with Front Coil Spring

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      I have a 2001 Ford Ranger Edge plus four wheel drive with a 4.0 l and automatic transmission. It has a stock lifted height. Will these shocks fit
    1. 0 votes
      Q I have a 2001 Ford Ranger Edge plus four wheel drive with a 4.0 l and automatic transmission. It ...... Read more
      A No For your truck we can offer https://www.suspensionlifts.com/shop/ford/ranger/bilstein-4600-front-rear-shocks-98-11-ford-ranger-rwd/
      2. I have a 2008 Ford Ranger XL, Standard Cab, 3.0 Litre. In the front i have 2inch Coil Spacers, and in the Rear i have 2 inch blocks. It looks like the front shocks would work, but not so sure about the rear ones here... Can you recommend me something that would work ?
    2. 0 votes
      Q I have a 2008 Ford Ranger XL, Standard Cab, 3.0 Litre. In the front i have 2inch Coil Spacers, an...... Read more
      A will work as far as you have front coil spring sispenison
      3. How big of a lift can i go with these shocks?
    3. 0 votes
      Q How big of a lift can i go with these shocks?
      A do you have a front spindle lift or just front lift coils/spacers? we'll advice depending on your lift frotn suspension type and lift type. These shocks can be used with spindle lift but not with longer coils
      4. Will these fit I have a 3in coil spacer in the front and 2in drop shackles in the back of my 2002 ford ranger.
    4. 0 votes
      Q Will these fit I have a 3in coil spacer in the front and 2in drop shackles in the back of my 2002...... Read more
      A It will fit only stock lift (0")
      5. I have a stock 2002 Ranger 2WD. I'm assuming these shocks will help lift my truck but reading your other answer it seems I need more lifting pieces like coils, etc. Do you sell something you'd recommend to lift my truck @3" along with these Bilsteins?
    5. 0 votes
      Q I have a stock 2002 Ranger 2WD. I'm assuming these shocks will help lift my truck but reading you...... Read more
      A Hello First. Shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or longer coils or maybe spacers will be required for a lift. Second. These  shocks for stock lifting height
      6. Will these shocks work on my 2010 ford ranger base, 2.3 liter, coil front springs?
    6. 0 votes
      Q Will these shocks work on my 2010 ford ranger base, 2.3 liter, coil front springs?
      There are no answers for this question yet.
      7. Will these work with 4 inch front spindles and 2 inch lift blocks ?
    7. 0 votes
      Q Will these work with 4 inch front spindles and 2 inch lift blocks ?
      A if you have coil spring suspension we can offer https://www.suspensionlifts.com/shop/mazda/bilstein-5100-6-front-4-rear-shocks-lift-spindle-98-09-mazda-b2300-b4000-2wd/
      A I also have 4" front spindles and 2" rear shackles. But I currently have all OEM shocks so shouldn't it fit? The stock shocks work with my lift kit
      A I also have 4" spindles and 2" rear shackles but the kit works with the OEM shocks so wouldn't these shocks fit despite the truck being lifted?
      8. Will shocks fit 4 inch max trac left for 2000 ranger
    8. 0 votes
      Q Will shocks fit 4 inch max trac left for 2000 ranger
      A No It will fit only stock lift (0")
      9. I have a 2004 ford ranger edge 2wd with a 3in body lift would these work ?
    9. 0 votes
      Q I have a 2004 ford ranger edge 2wd with a 3in body lift would these work ?
      A Body lift will have no influence on the shocks These shocks are for front coil spring suspension: FRONT: Extended Length (IN): 14.02 Inch Compressed Length (IN): 9.8 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Bar Pin REAR: Extended Length (IN): 22.68 Inch Compressed Length (IN): 14.21 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet please see if the dimensions and mountings are similar to your old shocks
      10. I have a stock 2003 ford ranger 2wd xlt extended cab I don't have tortion bars will this work on my truck while giving me a little bit of a lift?
    10. 0 votes
      Q I have a stock 2003 ford ranger 2wd xlt extended cab I don't have tortion bars will this work on ...... Read more
      A These shocks will not lift the truck by themseves - stronger coils or blocks or some other lift means are needed to lift the truck. These shocks have shch dimensions and mountings: - - - https://suspensionlifts.com/shop/ford/ranger/98-11-ford-ranger-2wd-bilstein-4600-3-front-0-1-rear-lift-shocks/ - - - FRONT: Extended Length (IN): 14.02 Inch Compressed Length (IN): 9.8 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Bar Pin REAR: Extended Length (IN): 22.68 Inch Compressed Length (IN): 14.21 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet * * * * * or we can offer - - - https://suspensionlifts.com/shop/ford/ranger/bilstein-4600-front-rear-shocks-98-11-ford-ranger-rwd/ - - - FRONT Extended Length (IN): 17.92 Inch Compressed Length (IN): 13.72 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Bar Pin REAR Extended Length (IN): 26.36 Inch Compressed Length (IN): 16.14 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Eyelet * * * * * Please see if you have such mountings and if the dimensions will fit
      11. Will this fit my 05' ranger 2wd edge with tortion bars that has a tortion bar crank kift 2-3" front and factory blocks in rear?
    11. 0 votes
      Q Will this fit my 05' ranger 2wd edge with tortion bars that has a tortion bar crank kift 2-3" fro...... Read more
      A We have ProComp shocks for your truck, but they are not on the site yet. If you want - please contact us for a quote.
      12. Will this setup work with my stock 2000 ford ranger 2wd xlt?
    12. 0 votes
      Q Will this setup work with my stock 2000 ford ranger 2wd xlt?
      A Yes
