Fox Performance Series 2.0 IFP 0-1.5″ Rear Shocks For 2019-2026 Ford Ranger 2WD/4WD

Description

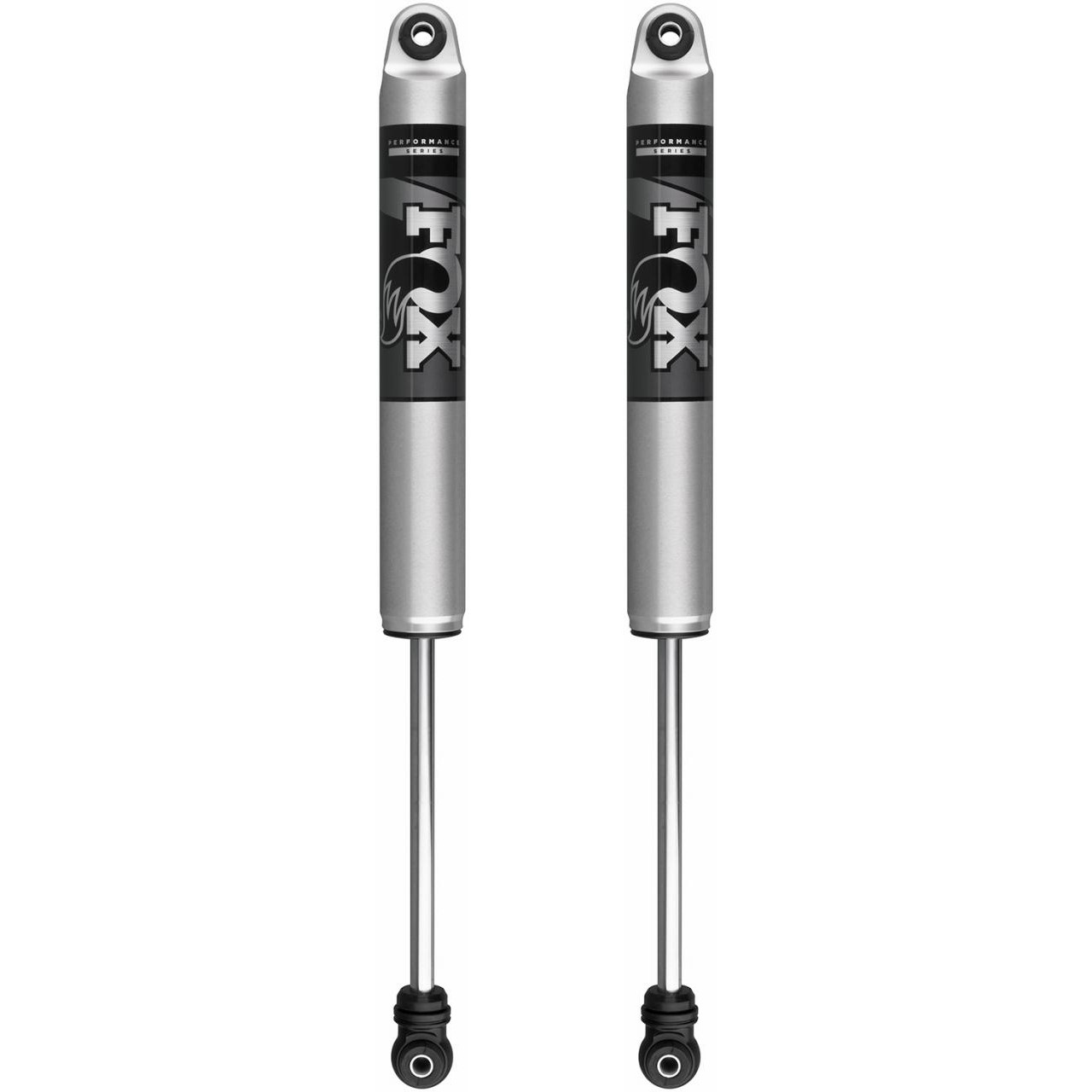

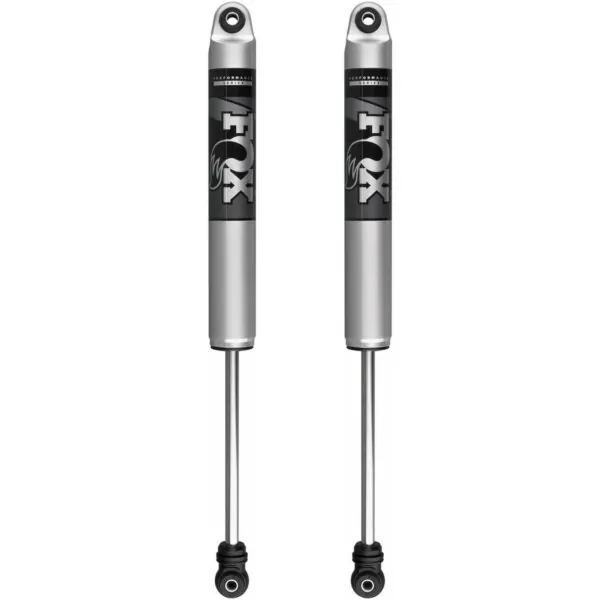

Fox Performance Series 2.0 IFP 0-1.5″ Rear Shocks For 2019-2026 Ford Ranger 2WD/4WD

Fox Performance Series 2.0 IFP 0-1.5 inches Rear Shocks For 2019-2026 Ford Ranger 2WD/4WD

Part Number: 2×985-24-207

Summary: The FOX Performance Series 2.0 IFP smooth body shocks are engineered to transform the performance of your 2019-2026 Ford Ranger. Utilizing an Internal Floating Piston (IFP) design, these shocks separate shock oil from the high-pressure nitrogen-charged gas chamber to eliminate oil aeration. This technology provides a comfortable on-road ride and predictable off-road handling even in tough conditions, while the aluminum body ensures increased cooling capacity and rust resistance.

Features

• Internal Floating Piston (IFP): The mono-tube design separates shock oil from the high-pressure nitrogen chamber to provide maximum performance from the factory-tuned precision valving by eliminating oil aeration.

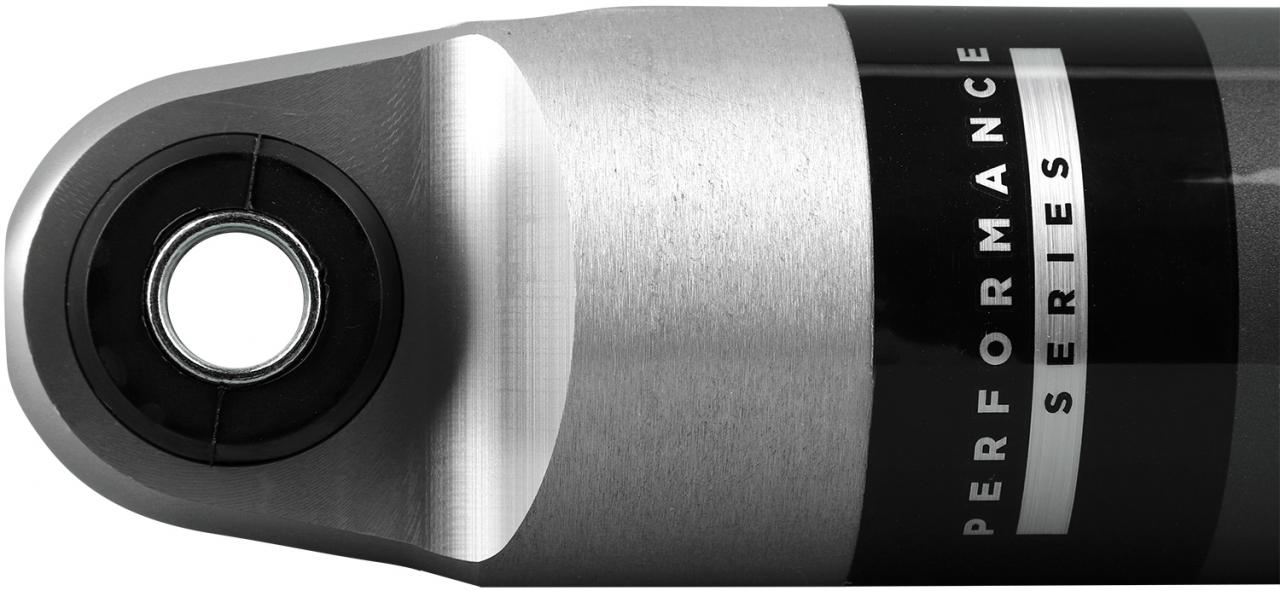

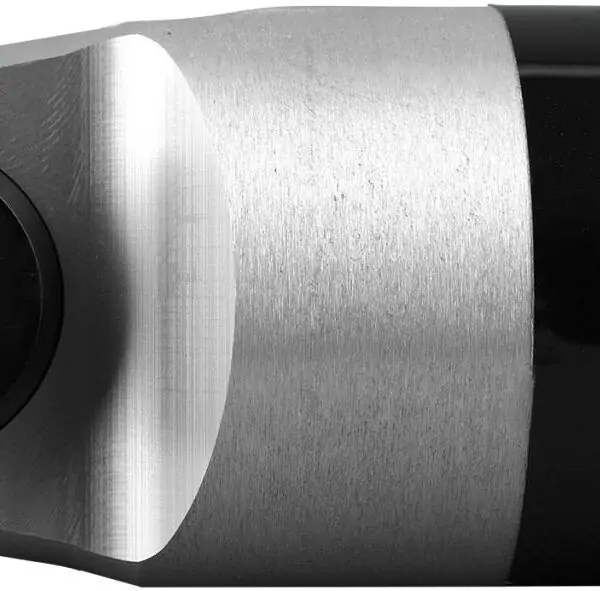

• Impact Extruded Aluminum Body: The 2.0” CNC machined 6061-T6 clear anodized aluminum construction provides increased cooling capacity to ensure a durable, rust-resistant finish over time.
• High-Flow Piston Design: The race-developed high-flow piston matched with application-specific valving provides predictable ride quality to ensure capability when handling rough road conditions.
• Hard Chrome Plated Shaft: The 5/8 inches heat-treated alloy steel shaft provides a robust internal structure to ensure long-term durability.
• Redundant Sealing Pack: A main seal, wiper seal, and scraper seal system provides multi-layer protection to ensure internal components remain free of contaminants.

Technical Specifications

Fitment

• 2019-2026 Ford Ranger
• Note: Fits U.S. Models Only. Fits 2WD and 4WD models.

What’s Included

• Includes 2 Shocks

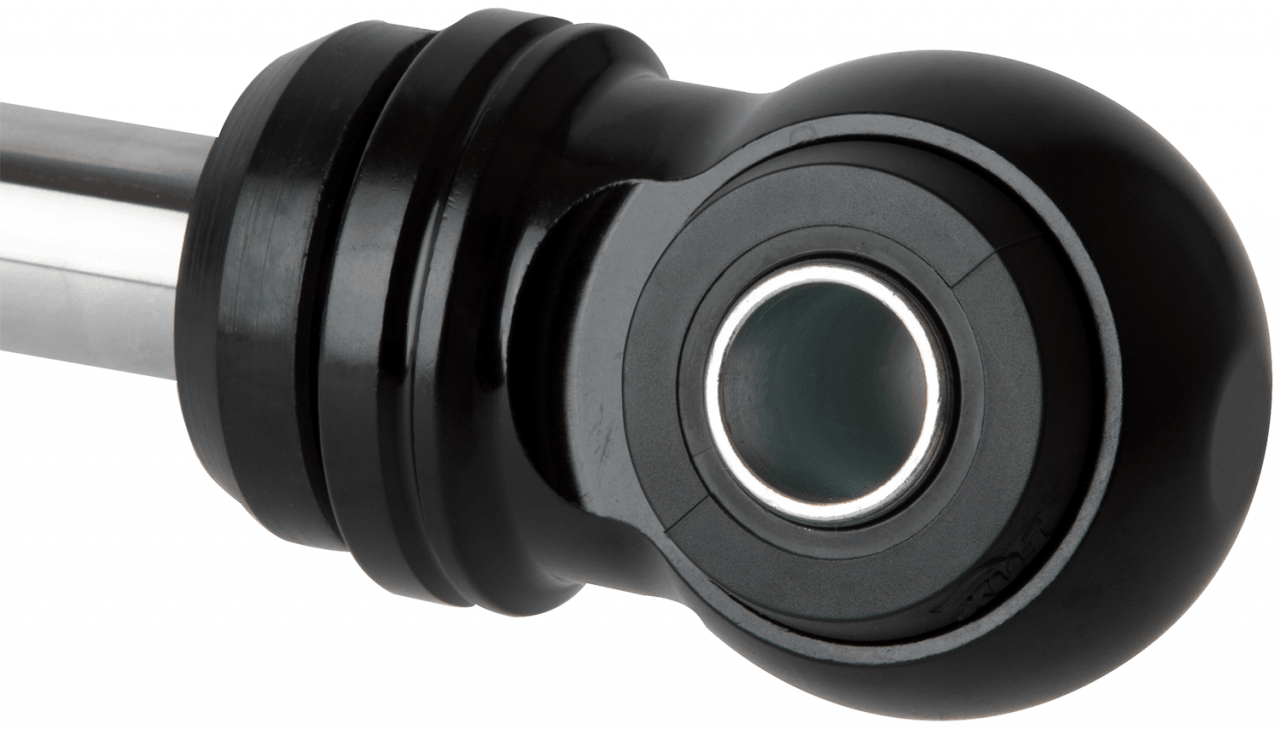

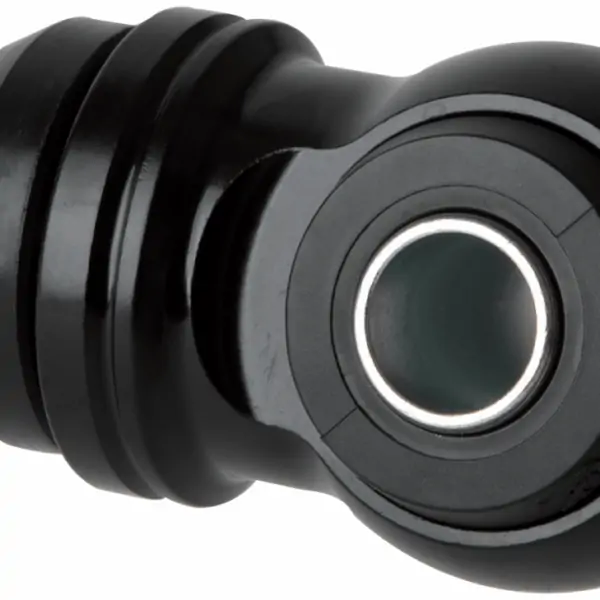

• Quiet nitrile rubber bushings

Why Choose This Product?

• Engineering Advantage: The use of an Internal Floating Piston (IFP) mono-tube design prevents oil and gas from mixing, which maintains consistent damping performance that traditional twin-tube shocks cannot match.
• Performance Benefit: Drivers experience a significant improvement in both street comfort and off-road predictability thanks to application-specific valving and superior heat dissipation from the aluminum body.

Frequently Asked Questions

What is the benefit of the Internal Floating Piston (IFP) design?
The IFP design separates the shock oil from the high-pressure nitrogen-charged gas chamber, which eliminates oil aeration and allows the valving to perform with maximum precision.

Are these shocks resistant to rust?
Yes, the 2.0 inches body is made from impact extruded 6061-T6 clear-anodized aluminum, which is designed to resist rust and increase cooling capacity.

Will these shocks fit my 2WD Ford Ranger?
Yes, these shocks are specifically designed to fit both 2WD and 4WD 2019-2026 Ford Ranger U.S. models with 0-1.5 inches of rear lift.
