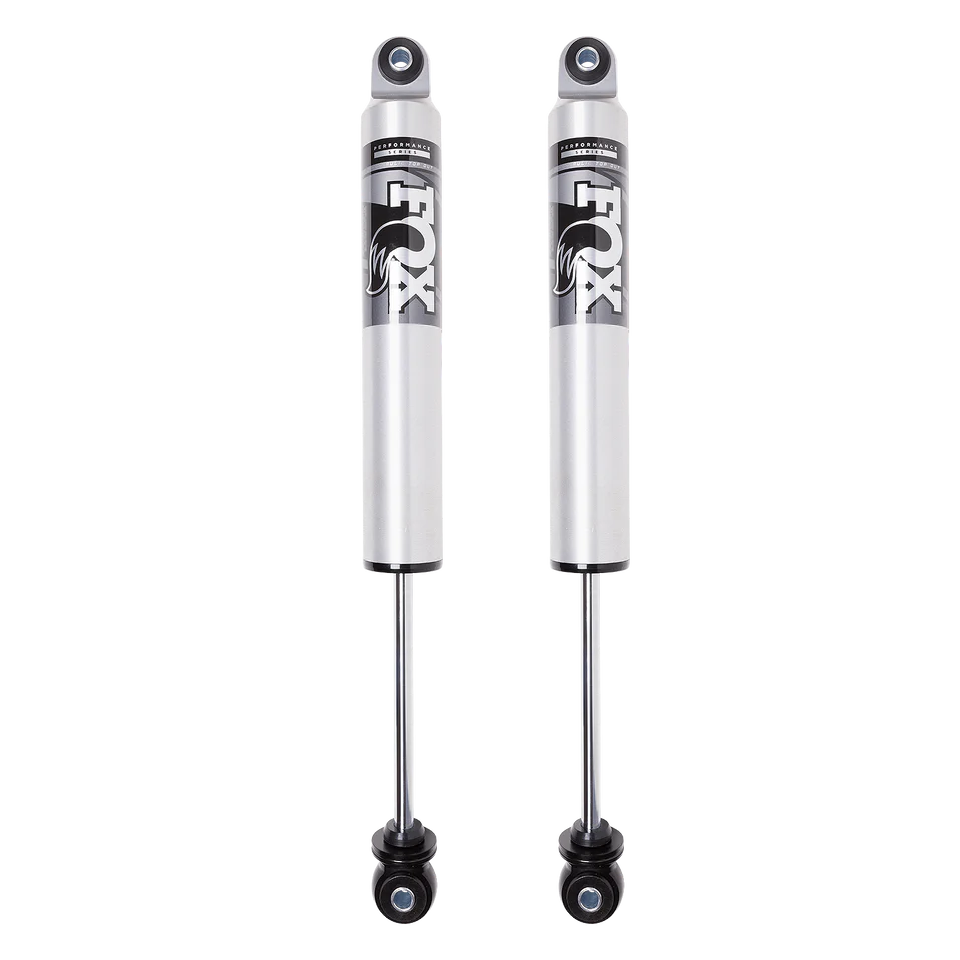

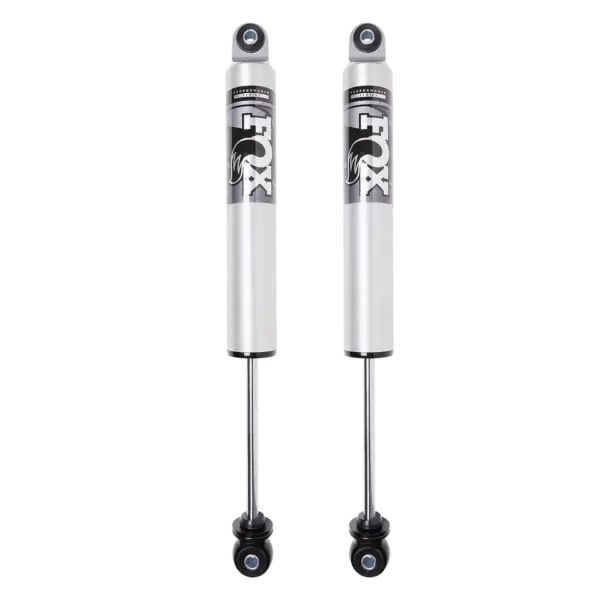

FOX 2.5 Performance Smooth Body HTO 3.5-4″ Front Lift IFP Shocks for 2020-2025 Jeep Gladiator JT

Description
FOX 2.5 Performance Smooth Body HTO 3.5-4″ Front Lift IFP Shocks for 2020-2025 Jeep Gladiator JT

FOX 2.5 Performance Smooth Body HTO 3.5-4 inches Front Lift IFP Shocks for 2020-2025 Jeep Gladiator JT

Part Number: 987-24-018

Summary: The FOX 2.5 Performance Series HTO shocks are engineered for the 2020-2025 Jeep Gladiator JT, specifically designed to address the challenges of lifted applications. Utilizing position-sensitive technology and vehicle-specific valving, these shocks improve both on and off-road performance through increased damping capacity. The integration of Hydraulic Top Out (HTO) technology ensures a smoother ride by managing rebound forces, particularly when equipped with heavier, aggressive tires.

Features

• Hydraulic Top Out (HTO): Secondary shim stack technology provides position-sensitive rebound damping control to ensure reduced harsh top-outs and increased comfort.
• Internal Floating Piston (IFP): High-pressure nitrogen separation from shock oil provides optimized damping to ensure consistent performance by preventing aeration.
• Aluminum Body: 2.5-inch impact extruded 6061-T6 aluminum with Type II clear-anodized plating provides efficient heat dissipation to ensure corrosion resistance and fade-free operation.
• High-Flow Damping: Velocity-sensitive damping combined with a 5/8” hard chrome shaft provides rapid response to terrain changes to ensure controlled handling.

Technical Specifications

Fitment

• 2020-2025 Jeep Gladiator JT
• Note: Lift: 3.5-4 inches. Excludes Mojave Model.

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The 2.5-inch aluminum body offers a larger piston and higher oil capacity than standard shocks, while the HTO secondary shim stack manages shaft speed at the limit of travel.
• Performance Benefit: Drivers experience a significant reduction in harshness during suspension extension, resulting in more controlled rebound and improved ride quality on vehicles with 3.5-4 inches of lift.

Frequently Asked Questions

What is Hydraulic Top Out (HTO) technology?
HTO is a position-sensitive rebound damping system that forces shock oil through a secondary shim stack to slow down the shock shaft speed, reducing harsh top-out sensations.

What are the benefits of the Internal Floating Piston (IFP)?
The IFP separates the shock oil from the high-pressure nitrogen gas, which prevents oil aeration and allows the shock to provide consistent, optimized damping performance.

Are these shocks compatible with the Jeep Gladiator Mojave?
No, according to the fitment notes, these shocks specifically exclude the Mojave model.
