Fox Factory Race Series 2-3″ Front Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Reservoir Compression Adjustable

Description
Fox Factory Race Series 2-3″ Front Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Reservoir Compression Adjustable

Fox Factory Race Series 2-3 inches Front Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Reservoir Compression Adjustable

Part Number: 883-26-080

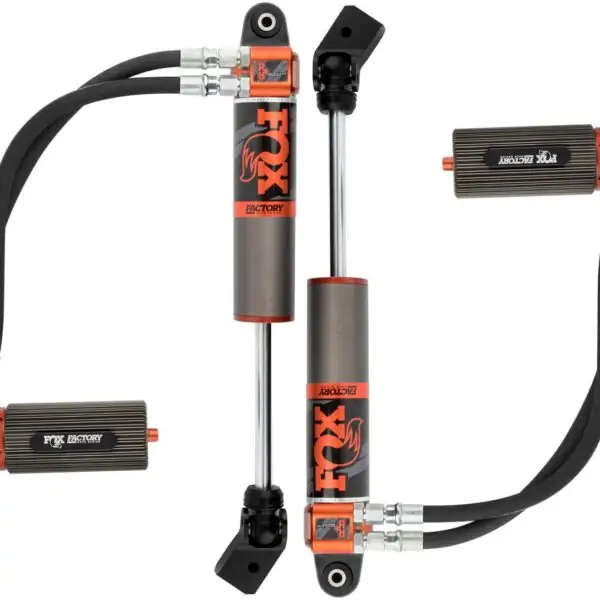

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks offer professional-grade, position-sensitive damping for the 2020-2026 Jeep Gladiator JT. By utilizing patented Internal Bypass technology, these shocks provide a plush ride during initial travel while rapidly increasing damping force at the extremes of the stroke to prevent harsh bottom-outs. This race-derived system is housed in a hard-anodized aluminum body and includes a recirculating remote reservoir to manage extreme heat during aggressive off-road use.

Features

• Internal Bypass Technology: Patented regulated ports allow fluid to bypass the piston during initial travel to provide a plush, predictable ride over normal off-road conditions.
• Dual Speed Compression (DSC): External adjusters allow tool-free high and low-speed compression adjustment to ensure the user can tune the ride for specific terrain or vehicle loads.
• Recirculating Reservoir Bridge: An aluminum finned remote reservoir with a recirculating bridge dissipates heat fast to ensure consistent damping and optimal oil temperatures.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded and CNC machined 6061-T6 aluminum provides superior corrosion resistance and weight reduction to ensure long-term durability.
• High-Flow Piston: Race-developed high-flow piston design coupled with application-specific valving provides maximum performance for lifted Jeep Gladiator applications.

Technical Specifications

Fitment

• 2020-2026 Jeep Gladiator JT (2WD/4WD)
• Note: Excludes Mojave Model. Designed to bolt onto 2-3 inches aftermarket suspension lift kits using OEM shock pivots.

What’s Included

• Includes 2 Front Lift Shocks
• Universal Finned Reservoir Clamps
• Machined 7075 aluminum reservoir mounting hardware
• Offset bottom shock mounts

Why Choose This Product?

• Engineering Advantage: This system uses the same internal bypass technology and components found in FOX Trophy Truck shocks, including stainless steel shafts and high-temp Viton seals, for professional-level performance.
• Performance Benefit: The combination of position-sensitive damping and DSC adjustability allows drivers to maintain a comfortable street ride while having the capacity to handle high-speed off-road impacts without bottoming out.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows fluid to bypass the piston during initial travel for a plush ride, then forces fluid through the piston at the ends of the stroke to prevent harsh bottom-outs.

Can I adjust these shocks without tools?
Yes, the Dual Speed Compression (DSC) adjusters allow for tool-free high and low-speed compression tuning.

Will these fit a Jeep Gladiator Mojave?
No, the manufacturer explicitly states these shocks exclude the Mojave model.
