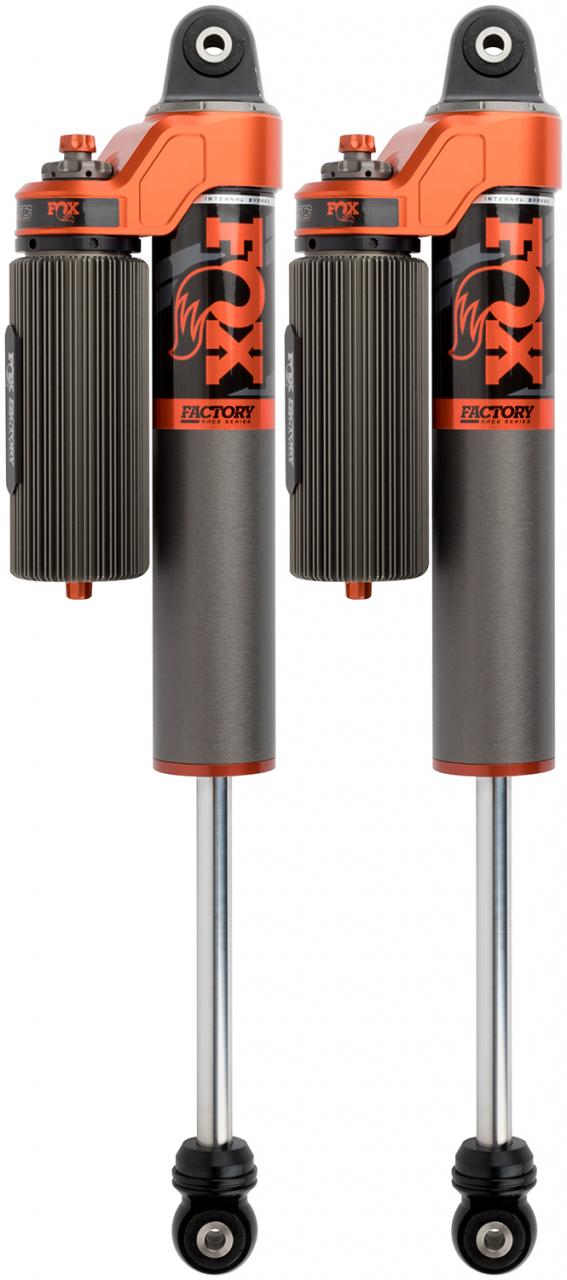

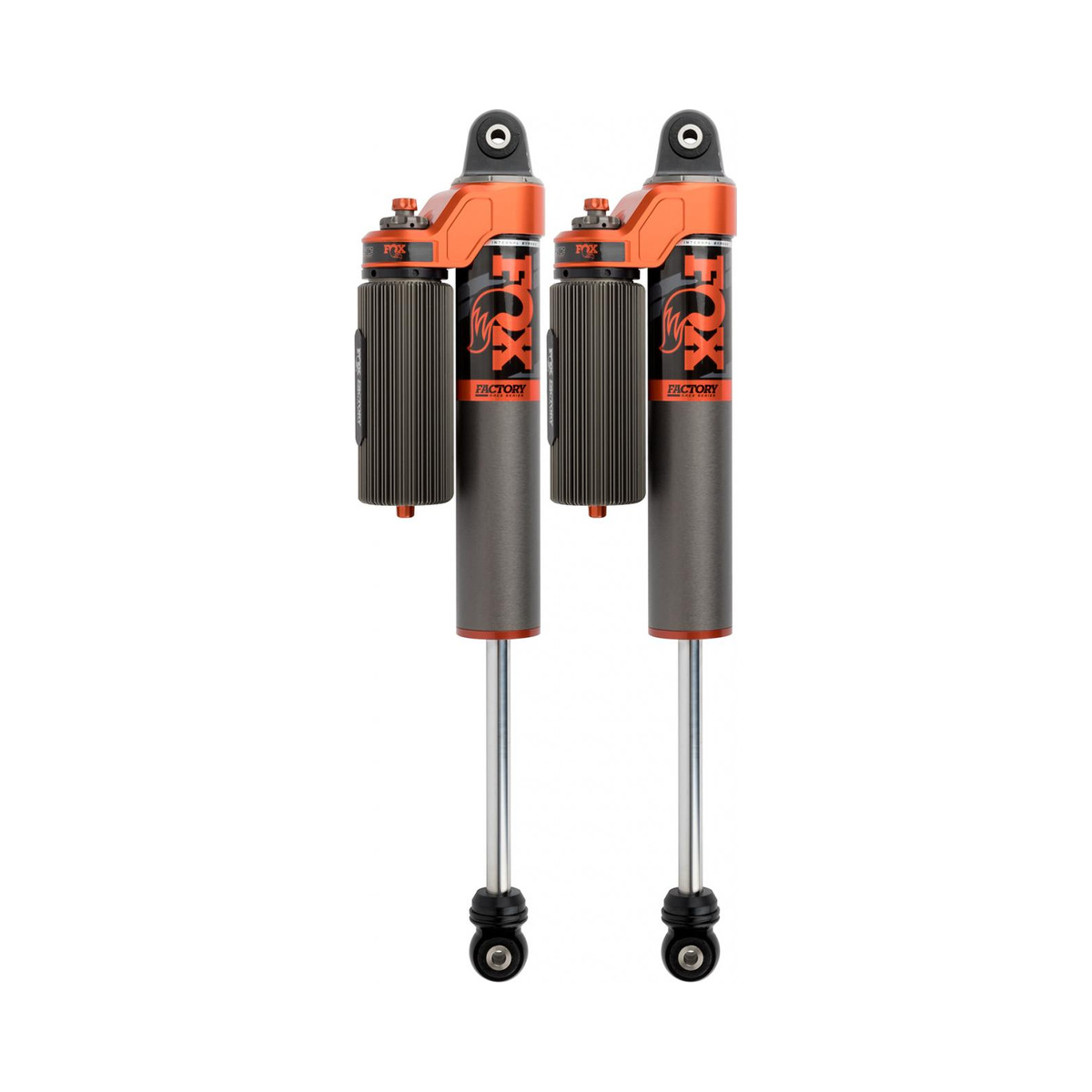

Fox Factory Race Series 2-3″ Rear Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Description
Fox Factory Race Series 2-3″ Rear Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Fox Factory Race Series 2-3 inches Rear Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Part Number: 883-26-081

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks provide race-dominating, position-sensitive damping technology for the 2020-2026 Jeep Gladiator JT. Utilizing patented Internal Bypass technology, these shocks feature regulated ports that allow fluid to bypass the piston during initial travel for a plush ride, while ramping up damping force at extreme ranges to prevent harsh bottom-outs. Constructed with hard-anodized aluminum bodies and finned piggyback reservoirs, they are engineered to maintain performance under high-speed off-road operation and repeated impacts.

Features

• Internal Bypass Technology: Patented position-sensitive regulated ports provide a plush ride during initial travel to ensure controlled damping at the extreme ranges of compression and rebound.
• Dual Speed Compression (DSC): Tool-free high and low-speed compression adjusters provide user-tunable damping to ensure the vehicle is optimized for specific loads or terrain.
• Aluminum Finned Reservoir: A CNC-machined piggyback reservoir with external fins provides increased surface area to ensure rapid heat dissipation and fade resistance.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded 6061-T6 aluminum provides superior corrosion resistance and weight reduction to ensure long-term durability in harsh environments.
• Spherical Bearings: PTFE-lined, heat-treated alloy steel bearings provide quiet operation to ensure smooth shock movement through the suspension cycle.

Technical Specifications

Fitment

• 2020-2026 Jeep Gladiator JT
• Note: Designed to bolt onto 2-3 inches aftermarket suspension lift kits using OEM shock pivots.

What’s Included

• Includes 2 Rear Lift Shocks
• Heavy-duty piggyback bridge and hardware

Why Choose This Product?

• Engineering Advantage: These shocks utilize the same Internal Bypass technology and components found in race-winning Trophy Truck shocks, including stainless steel shafts and high-temp Viton seals.
• Performance Benefit: Drivers experience a plush, predictable ride during normal conditions with significantly increased bottom-out control during aggressive off-road use.

Frequently Asked Questions

What is Internal Bypass technology?
It uses regulated ports to allow fluid to bypass the piston during initial travel for comfort, while increasing damping force at the ends of the stroke to prevent bottoming out.

Can I adjust these shocks without tools?
Yes, the Dual Speed Compression (DSC) adjusters allow for tool-free adjustment of both high and low-speed compression settings.

How does the reservoir help with performance?
The aluminum finned remote reservoir acts as a heat sink, increasing heat dissipation to prevent shock fade during sustained off-road use.
