Fox Factory Race Series 3.5-4.5″ Front Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Reservoir Compression Adjustable

Description
Fox Factory Race Series 3.5-4.5″ Front Lift Shocks for 2020-2026 Jeep Gladiator JT 2WD/4WD with 3.0 Internal Bypass Reservoir Compression Adjustable

Fox Factory Race Series 3.5-4.5 inches Front Lift Shocks for 2020-2026 Jeep Gladiator JT

Part Number: 883-26-082

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks provide race-dominating, position-sensitive damping technology in a bolt-on package for the Jeep Gladiator JT. By utilizing patented Internal Bypass technology, these shocks offer a plush ride during initial travel while rapidly increasing damping force at the extremes of the stroke to prevent harsh bottom-outs. Engineered with hard-anodized aluminum bodies and a recirculating reservoir bridge, this system is designed to maintain consistent performance and superior heat management during high-speed off-road operation.

Features

• Internal Bypass Technology: Patented regulated ports provide position-sensitive damping to ensure a plush ride over normal terrain with increased bottom-out resistance.
• Dual Speed Compression (DSC): External adjusters provide tool-free high and low-speed compression tuning to ensure the vehicle is optimized for various loads and terrain.
• Aluminum Finned Reservoir: CNC-machined remote reservoir with external fins provides increased heat dissipation to ensure consistent oil temperatures and damping performance.
• Hard-Anodized Aluminum Body: 3.0 inches impact extruded 6061-T6 aluminum construction provides superior corrosion resistance and weight reduction to ensure long-term durability.
• 7/8 inches Hard Chrome Shaft: Heat-treated alloy steel construction provides maximum strength to ensure reliable operation in harsh conditions.
• PTFE-Lined Spherical Bearings: Heat-treated alloy steel bearings provide smooth, quiet movement to ensure precise suspension articulation.

Technical Specifications

Fitment

• 2020-2026 Jeep Gladiator JT (2WD/4WD)
• Note: Excludes Mojave Model. Requires Front Driveshaft. Designed for use with 3.5-4.5 inches aftermarket suspension lift kits.

What’s Included

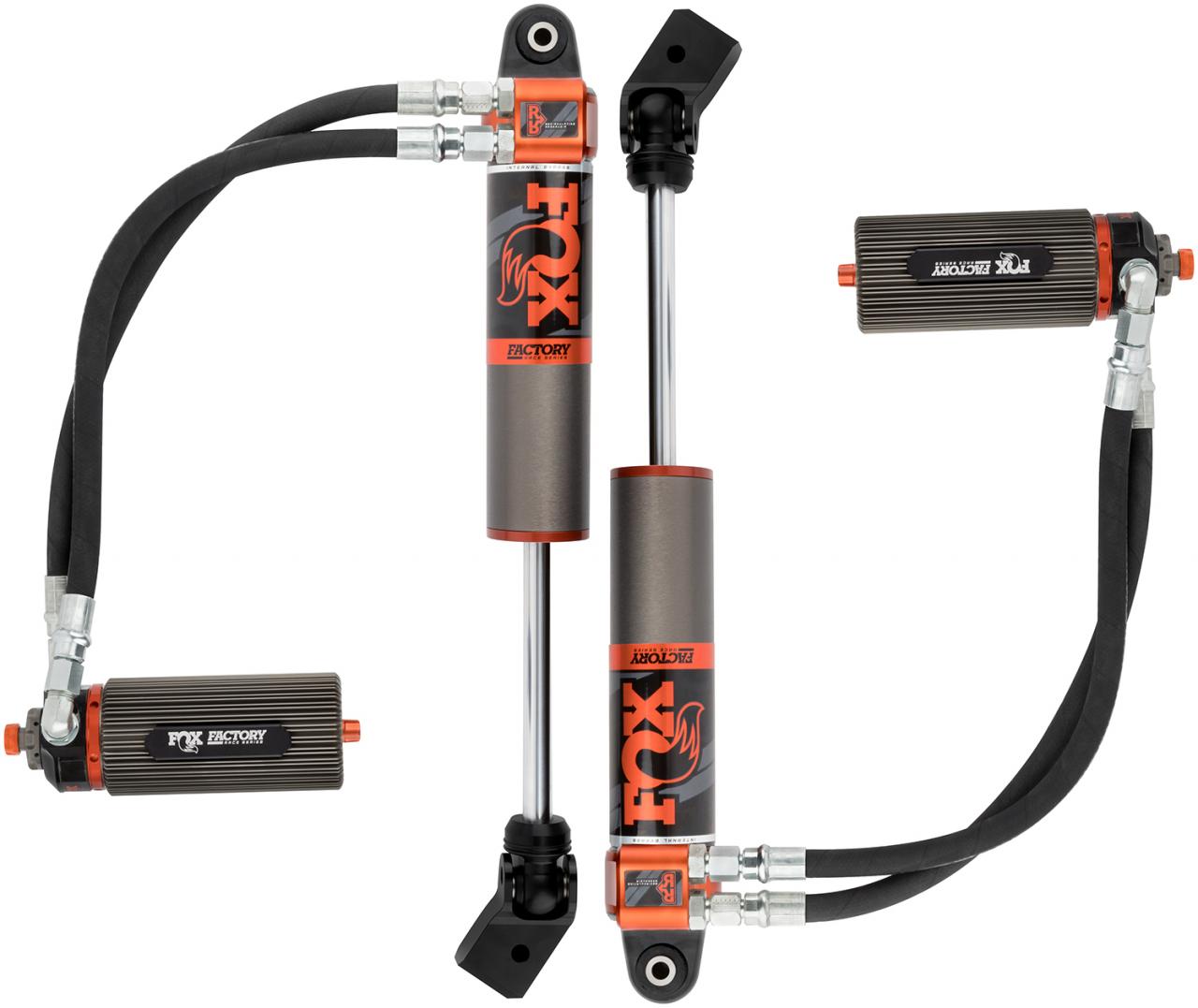

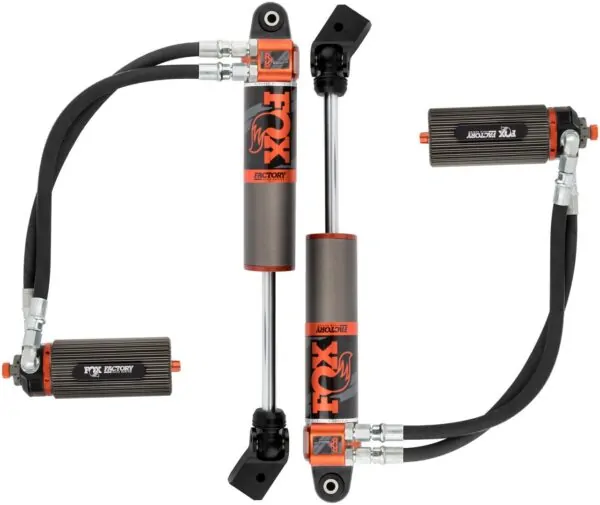

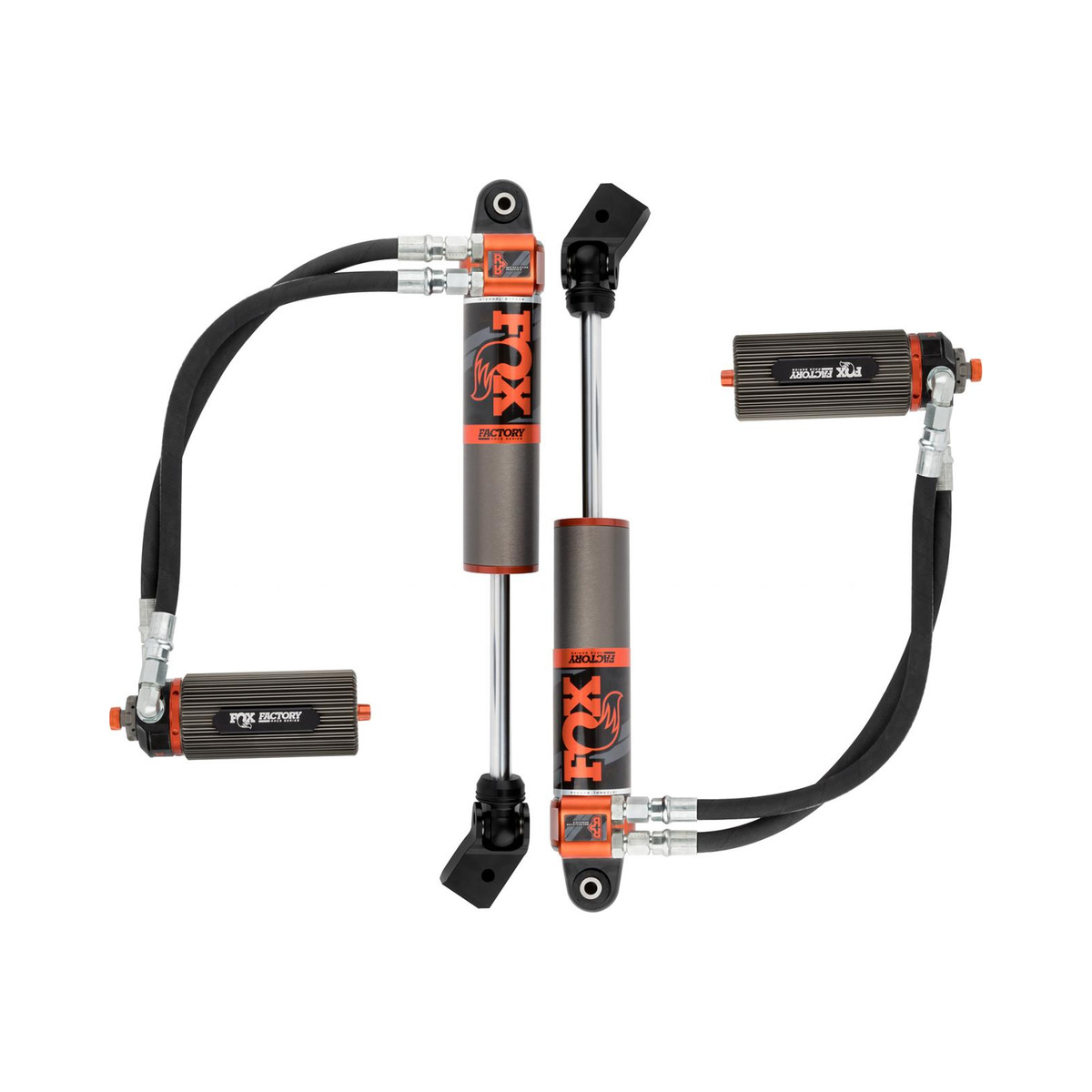

• Includes 2 Front Lift Shocks
• Universal Finned Reservoir Clamp
• Machined 7075 aluminum reservoir mounting hardware
• Offset bottom shock mounts

Why Choose This Product?

• Engineering Advantage: This system utilizes Internal Bypass technology and a Recirculating Reservoir Bridge to manage fluid flow and heat more effectively than standard monotube designs.
• Performance Benefit: Drivers experience a “best of both worlds” ride—comfortable and predictable on the street, yet capable of handling aggressive off-road impacts without fading or bottoming out.

Frequently Asked Questions

What is the benefit of the Internal Bypass technology?
It allows fluid to bypass the piston during normal travel for a plush ride, but forces fluid through the piston as the shock compresses further to prevent harsh bottoming out.

Can I adjust the compression settings on these shocks?
Yes, these shocks feature Dual Speed Compression (DSC) adjusters that allow for tool-free adjustment of both high and low-speed compression.

Are these shocks compatible with the Jeep Gladiator Mojave?
No, the provided fitment data explicitly excludes the Mojave model.
