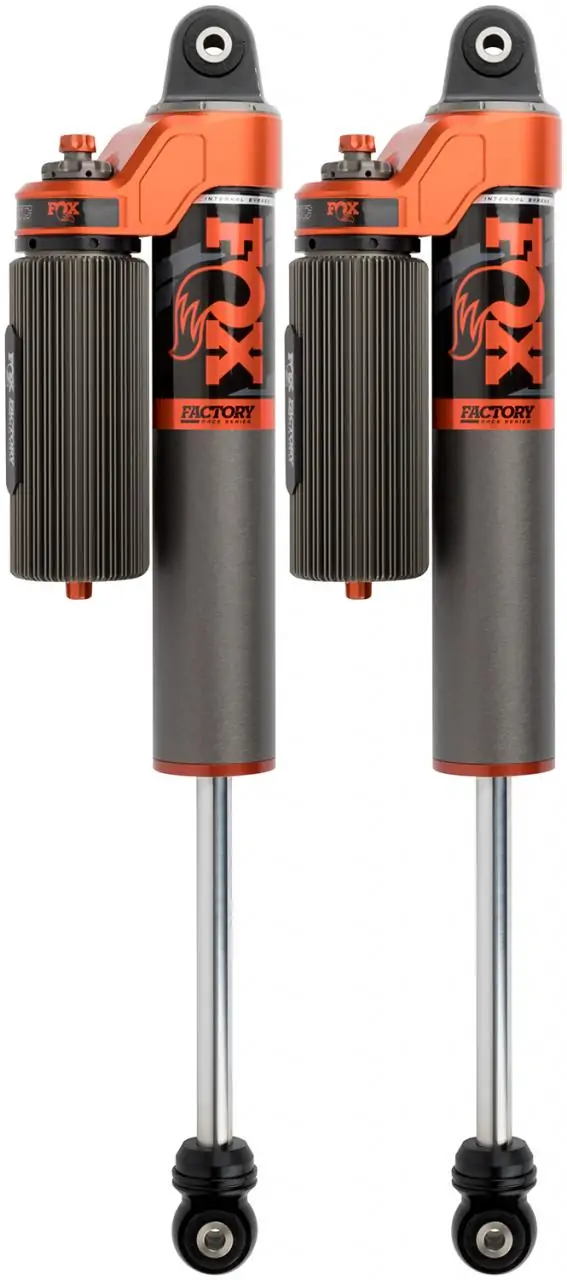

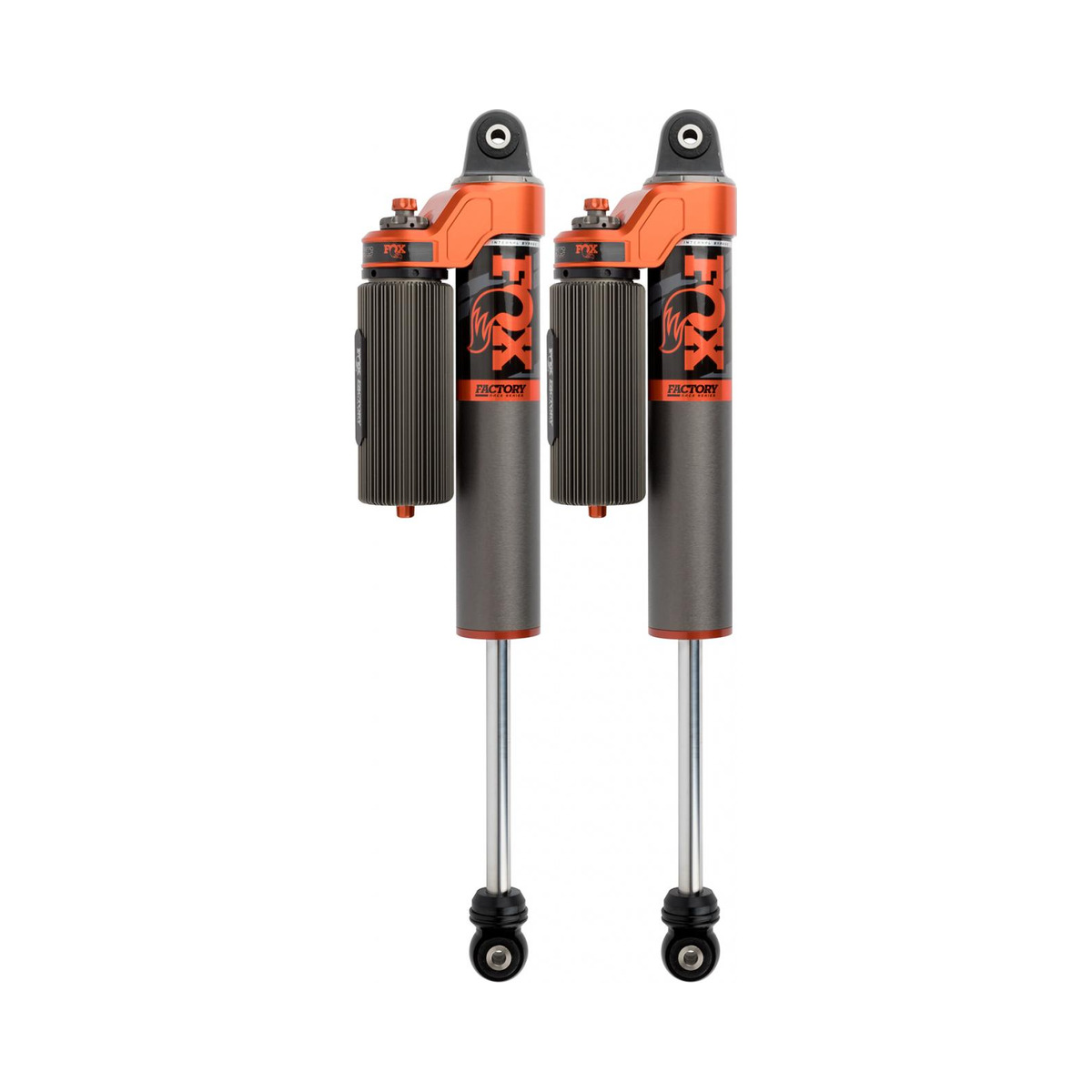

Fox Factory Race Series 3.5-4.5″ Rear Lift Shocks for 2020-2025 Jeep Gladiator 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Description
Fox Factory Race Series 3.5-4.5″ Rear Lift Shocks for 2020-2025 Jeep Gladiator 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Fox Factory Race Series 3.5-4.5 inches Rear Lift Shocks for 2020-2025 Jeep Gladiator 2WD/4WD with 3.0 Internal Bypass Piggyback Compression Adjustable

Part Number: 883-26-083

Summary: The FOX Factory Race Series 3.0 Internal Bypass shocks provide race-dominating, position-sensitive damping technology for the 2020-2025 Jeep Gladiator. Utilizing patented Internal Bypass technology, these shocks feature regulated ports that allow fluid to bypass the piston during initial travel for a plush ride, while ramping up damping force at extreme ranges to prevent harsh bottom-outs. Engineered with hard-anodized aluminum bodies and race-bred internal valving, these shocks are designed to handle high-speed off-road operation and sustained impacts on vehicles equipped with 3.5-4.5 inches of rear lift.

Features

• Internal Bypass Technology: Patented position-sensitive regulated ports provide a plush ride during initial travel and increased damping force at travel extremes to ensure control during harsh bottom-outs or top-outs.
• Dual Speed Compression (DSC): Tool-free high and low-speed compression adjusters provide user-tunable damping control to ensure versatility across different terrain and load conditions.
• Aluminum Finned Reservoir: A CNC-machined aluminum remote reservoir with external fins provides increased heat dissipation to ensure consistent performance and fade resistance.
• Hard-Anodized Aluminum Body: The 3.0 inches impact extruded 6061-T6 aluminum body provides superior corrosion resistance and weight reduction to ensure long-term durability in harsh environments.
• Heavy-Duty Components: 7/8 inches hard chrome plated heat-treated alloy steel shafts and PTFE-lined spherical bearings provide smooth, quiet movement to ensure reliable operation under race-level stress.

Technical Specifications

Fitment

• 2020-2025 Jeep Gladiator
• Note: Fits both 2WD and 4WD models with 3.5-4.5 inches of rear lift. Designed to bolt onto aftermarket suspension lift kits using OEM shock pivots.

What’s Included

• Includes 2 Rear Shocks
• Piggyback bridges and mounting hardware

Why Choose This Product?

• Engineering Advantage: These shocks utilize Internal Bypass technology and the same components found in race-winning Trophy Trucks, including proprietary racing oil and high-temp Viton seals for maximum thermal stability.
• Performance Benefit: The driver gains a predictable, comfortable ride on the street with the immediate ability to tackle aggressive off-road terrain without the risk of suspension bucking or uncontrolled impacts.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows for tool-free manual tuning of both high and low-speed compression settings to match your specific driving needs.

Are these shocks compatible with my lift kit?
These shocks are specifically engineered for 2020-2025 Jeep Gladiators equipped with a 3.5 inches to 4.5 inches aftermarket rear lift.

How does the Internal Bypass technology work?
It uses regulated ports to allow fluid to bypass the piston during normal travel for comfort, then forces fluid through the piston at the ends of the stroke to increase damping force when needed.
