Bilstein 5100 0.75″-2″ Front Lift Assembled Coilovers with OE Replacement Coils and Rear Shocks/Coils for 2005-2010 Jeep Grand Cherokee WK

SKU: BILWK5100SK
Sale!
Bilstein 5100 0.75"-2" Front Lift Assembled Coilovers with OE Coils and Rear Shocks/Coils for 2005-2010 Jeep Grand Cherokee WK
Bilstein 5100 0.75"-2" Front Lift Assembled Coilovers with OE Coils and Rear Shocks/Coils for 2005-2010 Jeep Grand Cherokee WK

Description

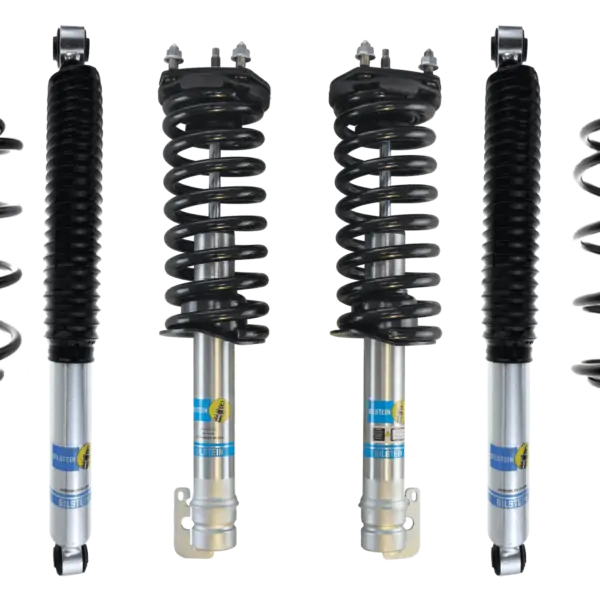

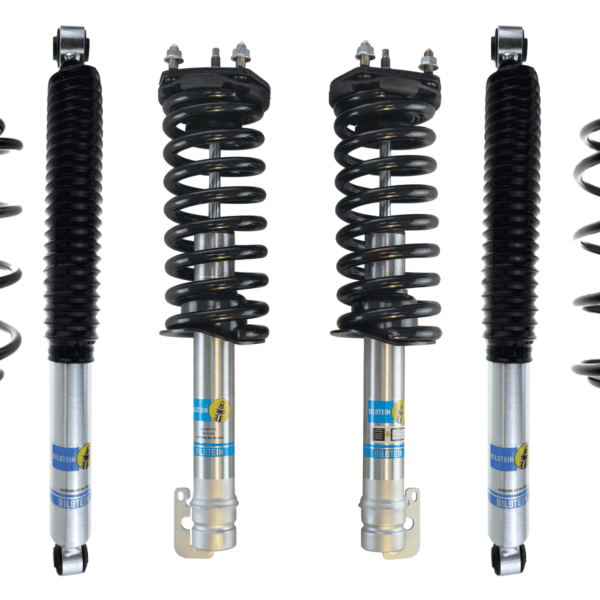

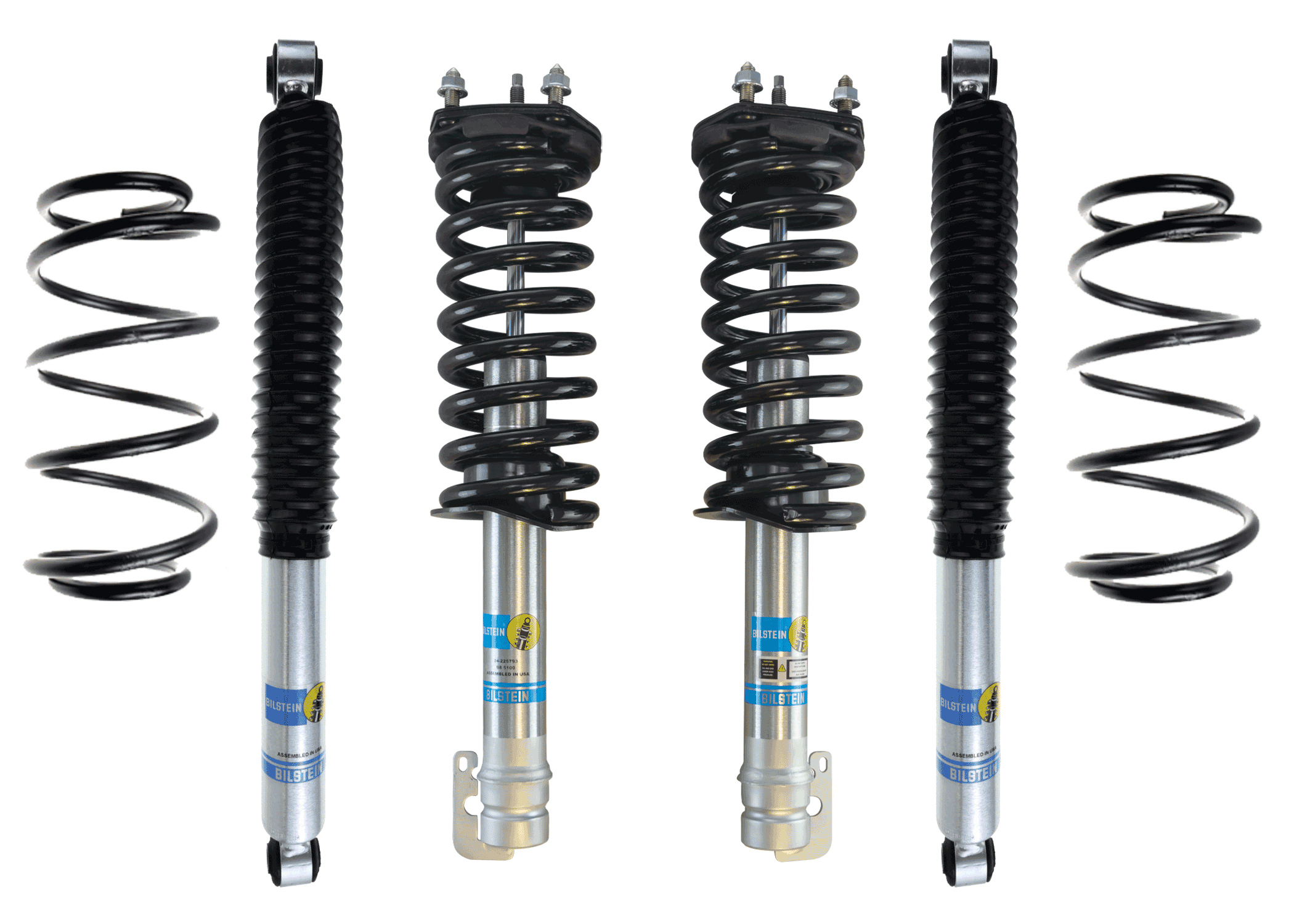

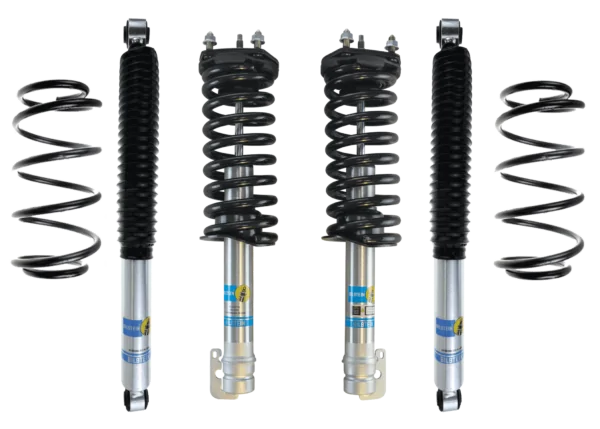

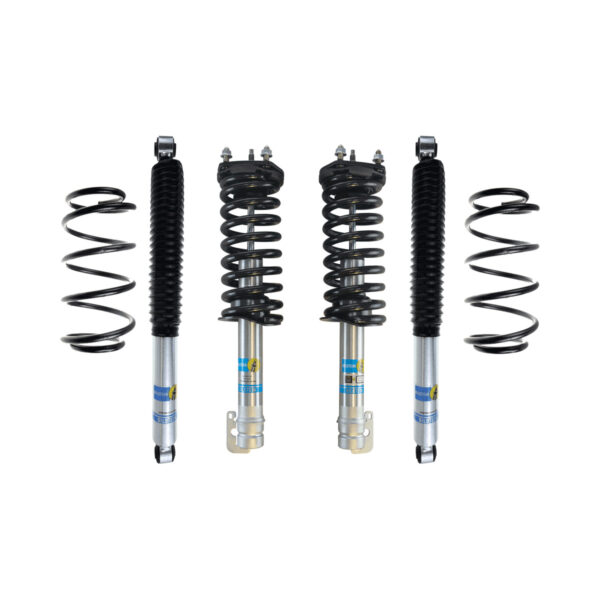

Bilstein 5100 0.75″-2″ Front Lift Assembled Coilovers with OE Replacement Coils and Rear Shocks/Coils for 2005-2010 Jeep Grand Cherokee WK

Bilstein 5100 0.75″-2″ Front Lift Assembled Coilovers with OE Replacement Coils and Rear Shocks/Coils for 2005, 2006, 2007, 2008, 2009, 2010 Jeep Grand Cherokee WK

Part: BILWK5100SK

Need Only Front and Rear kit  Bilstein 5100 0.75"-2" Front Lift Assembled Coilovers with OE Replacement Coils and Rear Shocks for 2005-2010 Jeep Grand Cherokee WK

Front Shocks+Coils:

Bilstein B8 5100 (Ride Height Adjustable) 24-225793 shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Assembled with OE Replacement Coils (Moog or similar OE Replacement) with new top mounts, bushings, hardware for ease of installation.

Rear Shocks (0-1.5″ Lift Shocks):

Series: 5100

Rear Extended Length(in): 24.76

Rear Collapsed Length(in): 15.39

Part Number: 33-225807

Rear Coils: Multiple Options Available

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein 5100 0.75″-2″ Front Lift Assembled Coilovers with OE Replacement Coils and Rear Shocks/Coils for 2005-2010 Jeep Grand Cherokee WK”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Good morning, looking for a bilstein shock set that includes the rear springs for a 07 jeep commander! Wondering in the grand Cherokee kit would work? Thanks Zane
    1. 0 votes
      Q Good morning, looking for a bilstein shock set that includes the rear springs for a 07 jeep comma...... Read more
      A No, the Bilstein 5100 kit for the Jeep Grand Cherokee WK does NOT fit the Jeep Commander (XK) directly, especially when it comes to the rear springs. The Jeep Grand Cherokee WK (2005–2010) and Jeep Commander XK (2006–2010) are indeed built on the same platform. However, the Commander is heavier, features a different rear spring (in terms of length and stiffness), and its rear suspension is tuned for the third row of seats.
      2. How are the rear shocks adjusted? 2007 Jeep Grand Cherokee Laredo. Rear measures 20' wheel axle center to fender, and front measures 19' wheel axle center to fender. If I set the front Bilsteins to the lowest setting, what would be the rear Bilsteins shock's setting, and how do I adjust it?
    2. 0 votes
      Q How are the rear shocks adjusted? 2007 Jeep Grand Cherokee Laredo. Rear measures 20' wheel axle c...... Read more
      A The rear shocks in this kit are not ride height adjustable and do not provide lift by themselves. They work with stock height but have enough travel to accommodate upto an existing 1.5" rear lift ( provided by coil springs, spacers etc.) In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      A Rear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or longer coils or maybe spacers will be required for a lift. These shocks are only longer than the stock shocks - designed for use with the existing lift.
      3. For setting the clips on the shocks does that determine the lift I want or would I still need to add a spacer to add a lift in the front or rear ?
    3. 0 votes
      Q For setting the clips on the shocks does that determine the lift I want or would I still need to ...... Read more
      A front height is set with clip settings, but for the rear you will need spacers or higher rear coils
      4. Hi I was wondering if these come with a strut bellow for the front?
    4. 0 votes
      Q Hi I was wondering if these come with a strut bellow for the front?
      A No But we can add it will cost $20 more.
      5. Just ordered the 2” clip option for my 2006 Jeep Grand Cherokee limited but just noticed you recommend doing the 1.5” clip option. Why is this recommended?
    5. 0 votes
      Q Just ordered the 2” clip option for my 2006 Jeep Grand Cherokee limited but just noticed you reco...... Read more
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      6. Will this fit on 2007 jeep grand Cherokee Laredo ?
    6. 0 votes
      Q Will this fit on 2007 jeep grand Cherokee Laredo ?
      A Yes Will fit for 2007 Jeep Grand Cherokee Laredo
      7. What’s the biggest tire I could use without rubbing or need for trimming
    7. 0 votes
      Q What’s the biggest tire I could use without rubbing or need for trimming
      There are no answers for this question yet.
      8. What clip setting should I pick to level off the WK?
    8. 0 votes
      Q What clip setting should I pick to level off the WK?
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
      9. Will this fit a 2006 jeep grand cherokee 6.1 srt8
    9. 0 votes
      Q Will this fit a 2006 jeep grand cherokee 6.1 srt8
      A officially haven't tested with srt8 suspension
      10. Will these also fit on a 06 jeep commander limited?
    10. 0 votes
      Q Will these also fit on a 06 jeep commander limited?
      A The mountings are the same but haven't officially tested with Commander
      11. These fit on a limited 4.7 v8 right?
    11. 0 votes
      Q These fit on a limited 4.7 v8 right?
      A yes, will fit just choose only 1st or 2nd clip setting (1,5'')
