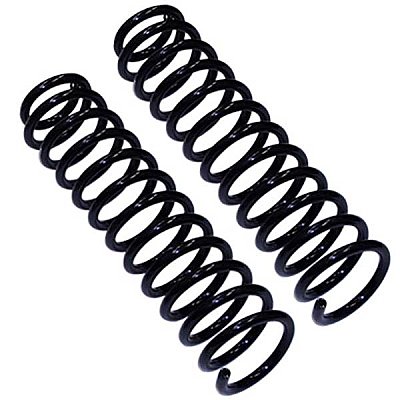

Synergy Front Coil Springs 6″ Lift for 2007-2018 Jeep Wrangler JK, 1997-2006 Wrangler TJ/LJ, 1984-2001 Cherokee XJ

Fitments:
Part # Jeep JK Recommended Tire Size
8063-10 2-Door Jeep JK 2.0″ Front Lift Springs 35″ (37″ w/ high fenders & proper bump stop spacers)
8063-20 2-Door Jeep JK 3.0″ Front Lift Springs 35″ (37″ w/ high fenders & proper bump stop spacers)
8063-30 2-Door Jeep JK 4.0″ Front Lift Springs 37″ (40″ w/ high fenders & proper bump stop spacers)
8063-45 2-Door Jeep JK 5.5″ Front Lift Springs 40″ (42″ w/ high fenders & proper bump stop spacers)
8063-60 2-Door Jeep JK 7.0″ Front Lift Springs 42″ (44″ w/ high fenders & proper bump stop spacers)
8063-10 4-Door Jeep JK 1.0″ Front Lift Springs 33″ (35″ w/ high fenders & proper bump stop spacers)
8063-20 4-Door Jeep JK 2.0″ Front Lift Springs 33″ (35″ w/ high fenders & proper bump stop spacers)
8063-30 4-Door Jeep JK 3.0″ Front Lift Springs 35″ (37″ w/ high fenders & proper bump stop spacers)
8063-45 4-Door Jeep JK 4.5″ Front Lift Springs 37″ (40″ w/ high fenders & proper bump stop spacers)
8063-60 4-Door Jeep JK 6.0″ Front Lift Springs 40″ (42″ w/ high fenders & proper bump stop spacers)
Part # Jeep TJ/LJ Recommended Tire Size
8063-10 Jeep TJ/LJ 2.0″ Front Lift Springs 32″ (33″ w/ high fenders & proper bump stop spacers)
8063-20 Jeep TJ/LJ 3.0″ Front Lift Springs 33″ (35″ w/ high fenders & proper bump stop spacers)
8063-30 Jeep TJ/LJ 4.0″ Front Lift Springs 35″ (37″ w/ high fenders & proper bump stop spacers)
8063-45 Jeep TJ/LJ 5.5″ Front Lift Springs 37″ (38″ w/ high fenders & proper bump stop spacers)
8063-60 Jeep TJ/LJ 7.0″ Front Lift Springs 38″ (40″ w/ high fenders & proper bump stop spacers)
Part # Jeep XJ Recommended Tire Size
8063-20 Jeep XJ 0.5 ” Front Lift Springs 31″ (32″ w/ high fenders & proper bump stop spacers)
8063-30 Jeep XJ 1.5 ” Front Lift Springs 32″ (33″ w/ high fenders & proper bump stop spacers)
8063-45 Jeep XJ 3.0 ” Front Lift Springs 33″ (35″ w/ high fenders & proper bump stop spacers)
8063-60 Jeep XJ 4.5 ” Front Lift Springs 35″ (37″ w/ high fenders & proper bump stop spacers)

Part # APPROXIMATE
LIFT HEIGHT
(2 DR JK) APPROXIMATE
LIFT HEIGHT
(4 DR JK) SPRING TYPE FREE
LENGTH
(INCHES) BLOCK
HEIGHT
(INCHES)
8063-10 2.0″ 1.0″ MULTI-RATE 18.53 6.95
8063-20 3.0″ 2.0″ MULTI-RATE 19.53 6.95
8063-30 4.0″ 3.0″ MULTI-RATE 21.50 7.88
8063-45 5.5″ 4.5″ MULTI-RATE 22.00 8.60
8063-60 7.0″ 6.0″ MULTI-RATE 23.50 8.60

Features:
Front lift coils for 2-Door Jeep JK, TJ/LJ, XJ and 4-Door Jeep JK Wranglers
Synergy coils offer excellent off road performance while preserving ride quality
Progressively wound; keeps spring from coming unbound at suspension droop
Progressively wound spring eliminates annoying spring clanking found on most suspension kits
Feature frequency balanced and tuned spring rates to maximize suspension performance on and off road
Suspension components feature an abrasion-resistant black powder coat finish for maximum durability and corrosion resistance
Springs are designed to give the advertised amount of lift with use of aftermarket front bumpers & winches.
Sold in Pairs
Notes:
2012+ JK’s lifted over 2″ will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust
Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded
Lift heights listed for JK are for models with gas engines. Expect approximately 1″ less lift on diesel models.
Lift heights listed for TJ/LJ and XJ are for models with the 4.0L engine. Expect approximately 0.5″-1″ more lift on 4 cylinder models.
For JK’s with stock wheels or wheels with close to stock backspacing, 1-1/2″ wheel spacers are recommended.
For JK’s with 35″ tires, 3″ bump stop spacers are recommended. With high fenders, shorter bump stop spacers can be used.
For JK’s with 37″ tires, 4″ bump stop spacers are recommended. With high fenders, shorter bump stop spacers can be used.
For 2 Door JK’s with 5.5″ of lift or more, the Synergy Long Arm System is recommended.
