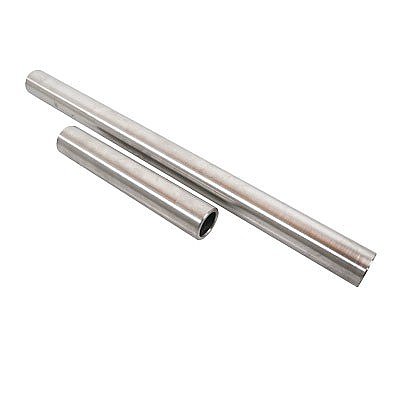

Synergy D30/44 Inner Axle Sleeve Kit Front for 2007-2018 Jeep Wrangler JK, 1997-2006 TJ/LJ, 1984-2001 XJ, 1993-1998 ZJ

The Synergy Jeep JK, LJ, TJ, XJ, ZJ D30/44 Inner Axle Sleeve Kit is designed to increase the strength of the front Dana 30 / 44 axle housings that are prone to bending when larger off road tires are installed. Have confidence in your axle while offroad without having to spend thousands! Pair this  with our Synergy Front Inner C Gusset Kit Dana 30/44 Axle for 2007-2018 Jeep Wrangler JK/JKU and our Synergy Front Axle Truss for 2007-2018 Jeep Wrangler JK for a tough, trustworthy axle for all your adventures.

Fitment:

Benefits:

• Adds 59% strength over stock axle tubes
• Machined OD to fit snugly into the stock axle housing
• Heavy duty DOM tubing fits tightly into axle tubes to provide unbeatable support without unnecessary movement

Features:

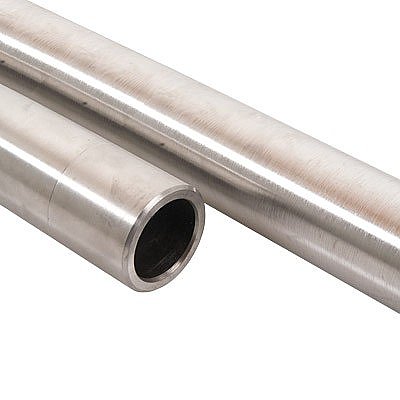

• Precision engineered from 2.0″ x 0.250 wall 1026 DOM Tubing (1.50″ ID)
• Snug fit in axle tube to ensure they maintain their position without slippage or vibration

Includes:

(1) Driver Side Inner Axle Sleeve
(1) Passener Side Inner Axle Sleeve

Notes:

• Stock axle housings must be drilled and plug welded for installation; We recommend all welding be done by an experienced welder / fabricator
• Recommended to be used with the Synergy Front Inner C Gusset Kit Dana 30/44 Axle for 2007-2018 Jeep Wrangler JK/JKU and Synergy Lower Control Arm Skid Plates D30/D35/D44 Front & Rear for 2007-2018 Jeep Wrangler JK
• Axle sleeves are not compatible with vacuum operated axle disconnect housings (1984-1991 Jeep XJ)
• This kit contains sleeves long enough to fit several applications; Trimming my be required for fitment on applications other than the JK Dana 30
• Inner Axle Sleeves are NOT compatible with the Jeep JK Rubicon Recon models due to thicker axle tube housings

Installation Instructions
