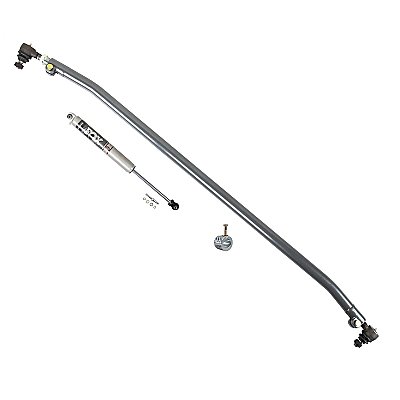

Synergy Front Tie Rod 4130 Heat Treated Chromoly for 2007-2018 Jeep Wrangler JK/JKU

The Synergy Jeep JK / JKU 4130 Heat Treated Chromoly Tie Rod is a direct bolt in to the JK / JKU platform for an immediate upgrade in steering strength and feel. Manufactured from heat treated 1.5″ chromoly steel and made right here in the USA and capped with our heavy duty metal on metal tie rod ends, this is the last tie rod you will ever need! We integrated our single plane tie rod end on one side to prevent unwanted movement. The Synergy Double Adjuster Sleeve and Pinch Bolt Assembly makes adjustment easy without having to remove it from your Jeep. Pair this tie rod with our heavy duty drag link and track bar for a bulletproofed steering system to tackle any terrain.

Fitment:

Benefits:

• Heavy duty, heat treated 1.50″ x 0.188 wall chromoly offers 200% more strength over stock and prevents unwanted vehicle wandering and unnecessary axle movement
• Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT are engineering with grease grooves inthe heat treated ball bearings for maximum lubrication and wear resistance

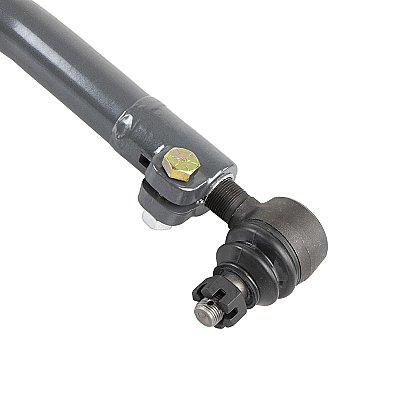

• Single plane tie rod end eliminates the “tie rod flop” commonly associated with hydro-assist set ups

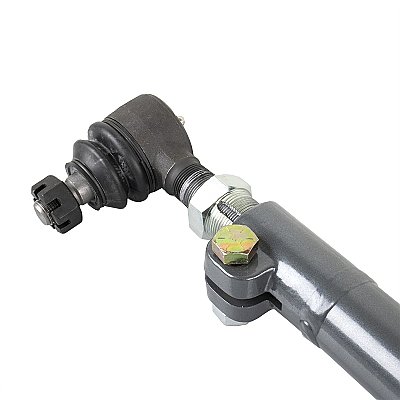

• Fully adjustable while installed in the vehicle, thanks to our Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly
• No jam nuts that are impossible to keep tight
• Precision bent to clear sway bar mounts and most aftermarket diff covers
• Our fully greaseable Metal on Metal Tie Rod Ends provide exceptional strength, eliminate unwanted tie rod flop, and easily support hydro-assist applications

Features:

• Engineered and precision bent from 1.50″ x 0.188 wall 4130 heat treated chromoly
• Fully greaseable, wear resistant Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT
• Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly for easy adjustment, while installed in the vehicle
• Two stage abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools

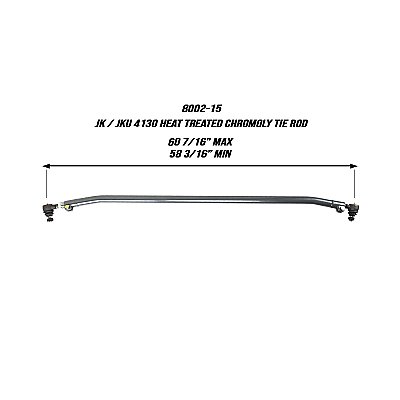

Min/Max Lengths:
Measured in a straight line from zerk fitting to zerk fitting

Maximum: 60.4375″
Minimum: 58.188″

Includes:

(2) Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT
(1) Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK
(2) Pinch Bolt Assemblies
(1) Pinch Bolt Hardware

Notes:

• Recommended Fox Steering Stabilizers:
  • Synergy Fox Performance 2.0 IFP Steering Stabilizer Front for Jeep Wrangler JK 2007-18, JL 2018+, Gladiator JT 2020+,
  • TS – Through Shaft (6402-03),
  • ATS – Adjustable Through Shaft (6403-03)
• Requires the Synergy Front Steering Stabilizer Relocation Kit OEM JK Tie Rod for 2007-2018 Jeep Wrangler JK/JKU to mount your steering stabilizer
• Supersedes Part Number: 8002, Synergy 1-3/8″ diameter JK HD Tie Rod
• Requires 16″ or larger wheel diameter
• Requires the use of a maximum 4.75″ backspace wheel or the use of a wheel spacer on factory wheel; 4.5″ back spacing is recommended
• Replacement tie rod ends: Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT
• For use with a stabilizer, this kit requires the use of stabilizer clamp part number 4050-50 or Synergy Hi-Mount Steering Stabilizer Relocation Kit Front for 2007-2018 Jeep Wrangler JK stabilizer relocation kit
• Compatible with Reid Racing High Steer Knuckles (JK001)
