Synergy Heavy Duty Drag Link Kit Front for 2007-2018 Jeep Wrangler JK/JKU

The Synergy Jeep JK / JKU Heavy Duty Drag Link Kit, now including our Drag Link Flip Adapter, is more versatile and stronger than ever! Manufactured from 1.5″ x 0.250 wall USA made DOM tube, this upgrade offers significantly improved lateral stiffness over stock and provides the strongest connection to the road. Capped with our fully greaseable metal on metal tie rod ends, we have eliminated the common “drag link flop” without limiting articulation or driveability. Pair this drag link with our heavy duty, heat treated Synergy Tie Rod for the ultimate steering set up!

Fitment:

Benefits:

• Larger tubing size than previous design improves drag link strength, offering a more direct connection to the road and trail compared to stock
• Greaseable Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT are stronger and more durable than stock, with a driver side single plane tie rod end to eliminate drag link flop

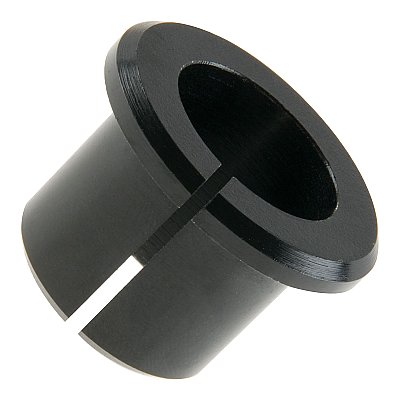

• Synergy Tie Rod End Flip Adapter Front for 2007-2018 Jeep Wrangler JK is now included for those who will be converting to high steer for straightforward install and no additional purchases necessary
• Easily adjustable without removing from the vehicle, thanks to our Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly
• Fully welded and sealed from the elements with our Forged Pinch Bolt housings extends the life of your equipment
• Fits in vehicles with 0-3″ of lift with no modifications or up to 6″ with the drag link flip and high steer set up and track bar relocation (See Synergy Synergy Front Track Bar Relocation Bracket 3"+ Lift for 2007-2018 Jeep Wrangler JK/JKU or 8812-01)

Features:

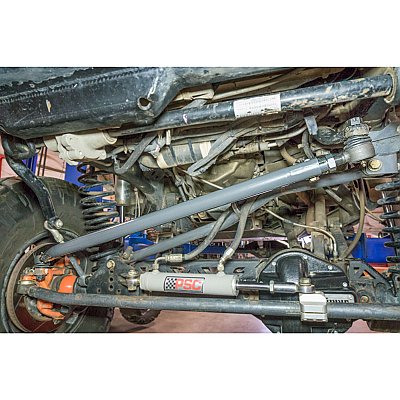

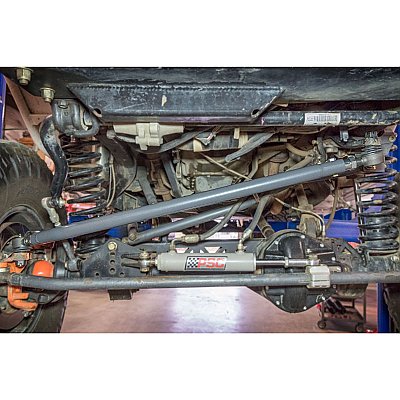

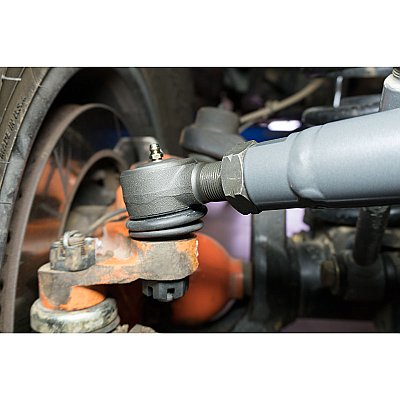

• Drag link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter

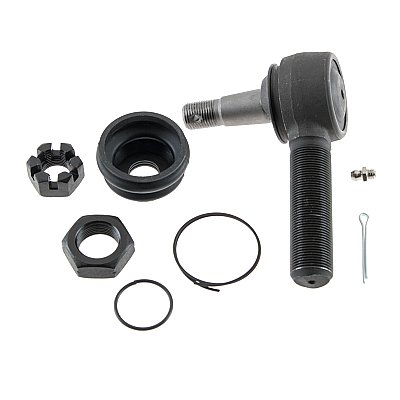

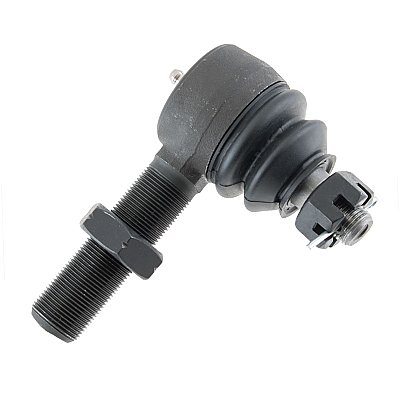

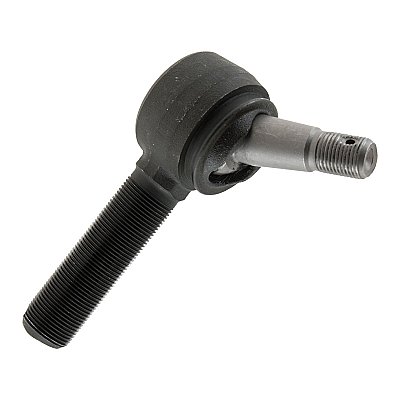

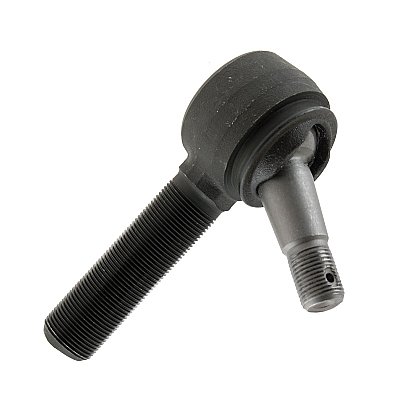

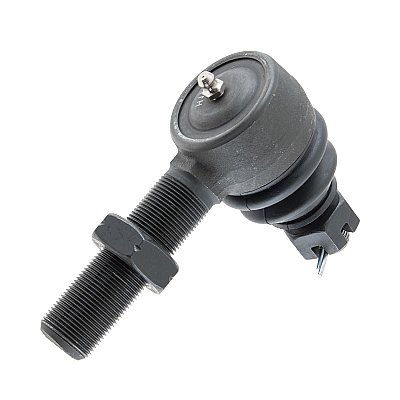

• Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT, fully greaseable with heat treated components
• Precision manufactured from 1.5 inch x .250 wall USA made DOM tubing
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance

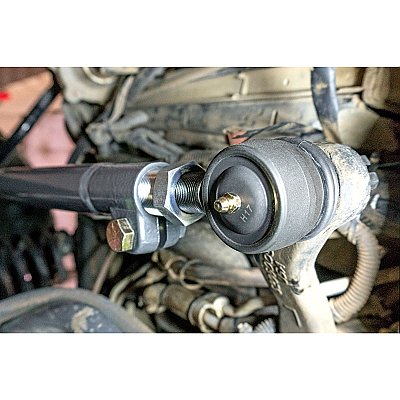

• Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK and Pinch Bolt Assembly for easy fine-tuning
• 100% bolt-on components assures an easy, trouble free installation with the use of basic hand tools
• Passenger side tie rod end is interchangeable between Synergy Front Tie Rod 4130 Heat Treated Chromoly for 2007-2018 Jeep Wrangler JK/JKUand Synergy Drag Link, keeping it simple

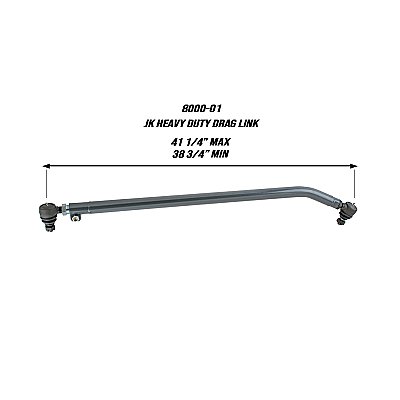

Min/Max:
Measured from center of bolt hole to center of bolt hole

• Minimum collapsed length: 38.75 inch
• Maximum extended length: 41.25 inch

Includes:

(1) Heavy Duty Drag Link
(1) Synergy Tie Rod End Flip Adapter Front for 2007-2018 Jeep Wrangler JK
(1) Synergy Replacement Double Adjuster Sleeve 1.25-12 Threads for 2007-2018 Jeep Wrangler JK
(1) Pinch Bolts & Grade 8 Hardware

Notes:

• Supersedes part number 8001
• Synergy Heavy Duty Front Tie Rod & Drag Link End LH for 2018+ Jeep Wrangler JL, 2020+ Gladiator JT
• Drag Link is designed to be used in the stock location for up to 3 inch lift heights
  • For 3-6 inch lift heights the drag link should be flipped wiht included flip adapter for a high steer setup
• High Steer setup requires the drag link to be relocated to the top of the steering knuckle used in conjunction with a raised front axle side track bar relocation bracket (See Synergy Synergy Front Track Bar Relocation Bracket 3"+ Lift for 2007-2018 Jeep Wrangler JK/JKU or 8812-01)
• Rear track bar should ideally be raised a similar amount at the axle with one of our track bar relocation brackets – Synergy Weld-On Rear Track Bar Bracket for 2007-2018 Jeep Wrangler JK, Synergy Rear Track Bar Bracket 2-3" Lift Bolt-On Right-Hand-Drive for 2007-2018 Jeep Wrangler JK/JKU, Synergy Rear Track Bar Bracket 3"+ Lift Bolt-On for 2007-2018 Jeep Wrangler JK/JKU
• High steer setup requires 16 inch or larger wheel diameter with a maximum 4-3/4 inch backspacing or Synergy Hub Centric Wheel Spacers 1.25" Front/Rear 6×5.5 for 1995-2023 Toyota Tacoma/4Runner/FJ Cruiser with factory wheel setup; 4-1/2 inch back spacing is recommended
• Right hand drive (RHD) compatible
