Bilstein 5100 3.5-5″ Front & 4″ Rear Lift Shocks for 2007-2018 Jeep Wrangler (JK) 4WD/2WD Long Arm

Description
Bilstein 5100 3.5-5″ Front & 4″ Rear Lift Shocks for 2007-2018 Jeep Wrangler (JK) 4WD/2WD Long Arm

Bilstein 5100 3.5-5″ Front & 4″ Rear Lift Shocks for 2007 – 2017 Jeep Wrangler JK (2WD / 4WD)

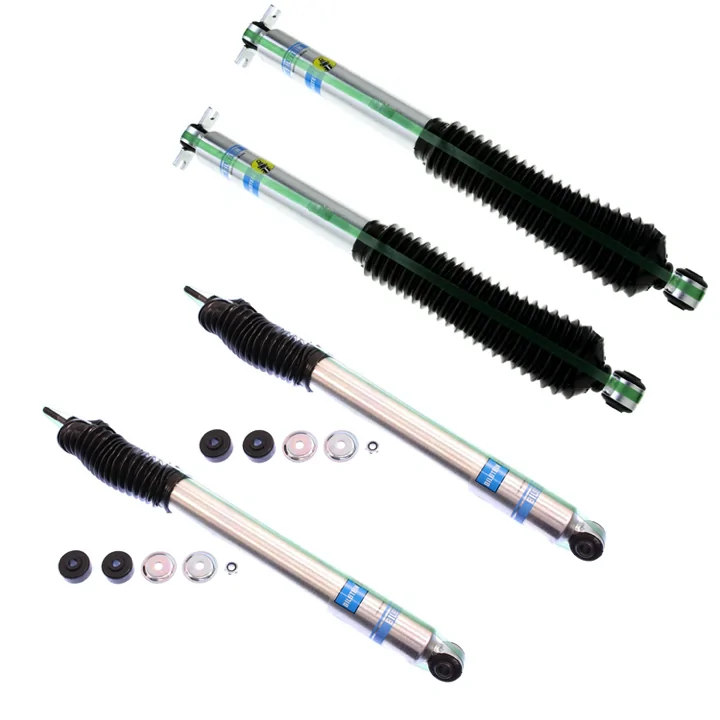

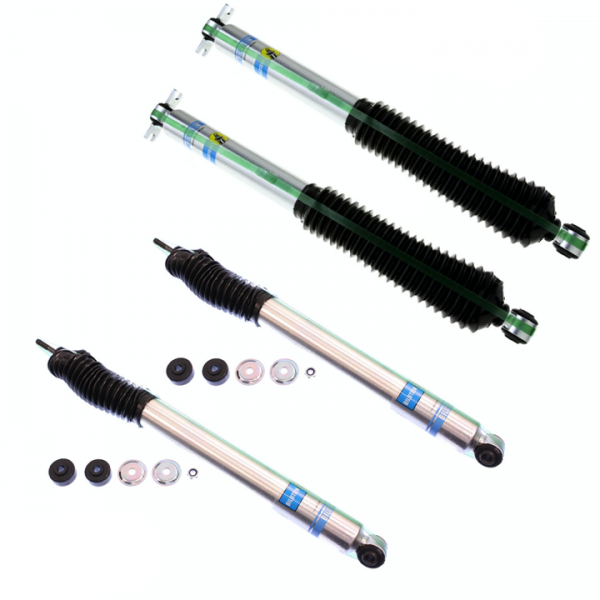

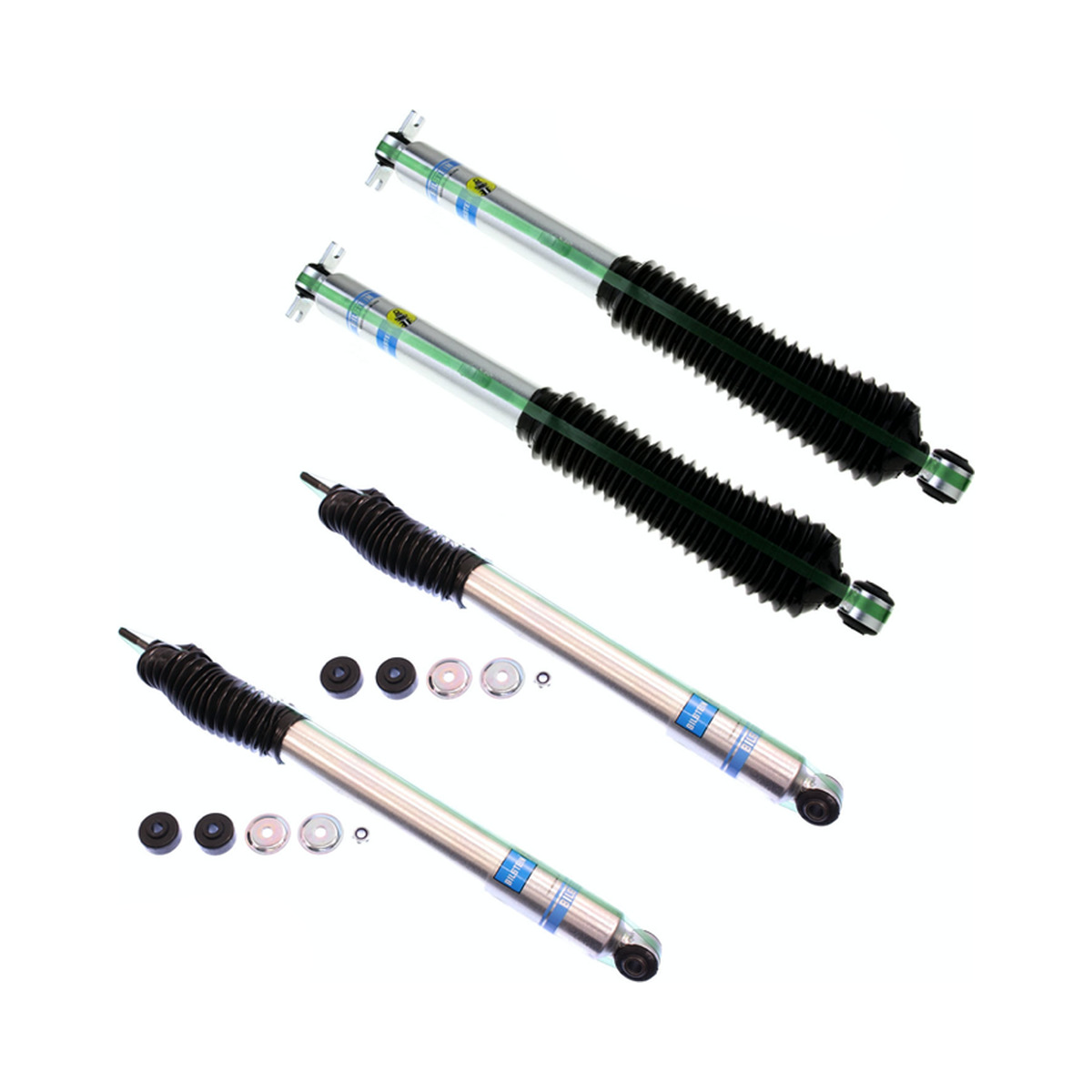

Includes: 4 Shocks (Front: 24-186872 • Rear: 33-186887)

This Bilstein 5100 shock set is designed for Jeep Wrangler JK owners running long-arm kits or high-clearance lift systems in the 3.5 to 5 inch range up front and 4 inches in the rear. Built with Bilstein’s proven 46mm monotube design, these shocks deliver firm, controlled handling, improved stability on and off road, and better suspension performance under larger tires and increased lift height.

The extended travel of these shocks is ideal for long-arm suspensions but requires proper bump stop spacing to prevent over-compression. When set up correctly, 5100s provide predictable damping and excellent off-road articulation without fade.

Front Shocks (24-186872)

• Series: 5100
• Extended Length: 27.56 in
• Collapsed Length: 16.41 in
• Lift Range: 3.5 – 5 inches
• Fitment Note: Compression bump stop on chassis may need modification to avoid bottoming out

Rear Shocks (33-186887)

• Series: 5100
• Extended Length: 27.36 in
• Collapsed Length: 16.96 in
• Lift Range: 4 inches
• Fitment Note: Compression bump stop modification may be required

Fitment

• 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Jeep Wrangler JK
• JK 2-door and JK Unlimited 4-door
• Works with long-arm kits and high-travel lift systems
• Front lift: 3.5 – 5 inches • Rear lift: ~4 inches

Important Fitment Note: Long Arm
These shock lengths are intended for long-arm or extended-travel suspensions. Always verify full droop and full compression after installation.

Why Choose Bilstein 5100 for Your JK?

• 46mm monotube design with fade-free performance
• Excellent control for lifted Jeeps running larger tires
• Tuned for heavier builds, off-road accessories, and added travel
• Durable zinc-plated finish
• Direct bolt-on installation with long-arm systems

Frequently Asked Questions

Will these work with a short-arm lift kit?
No. These lengths are intended for long-arm or extended-travel suspension systems.

Do I need bump stop extensions?
Yes. Bilstein notes that the compression bump stop may need modification to prevent shock damage.

What lift height are these shocks for?
3.5 – 5 inches in the front and approximately 4 inches in the rear.

Are these good for off-road articulation?
Yes. The long travel of the 5100s pairs well with long-arm kits for improved articulation and stability.
