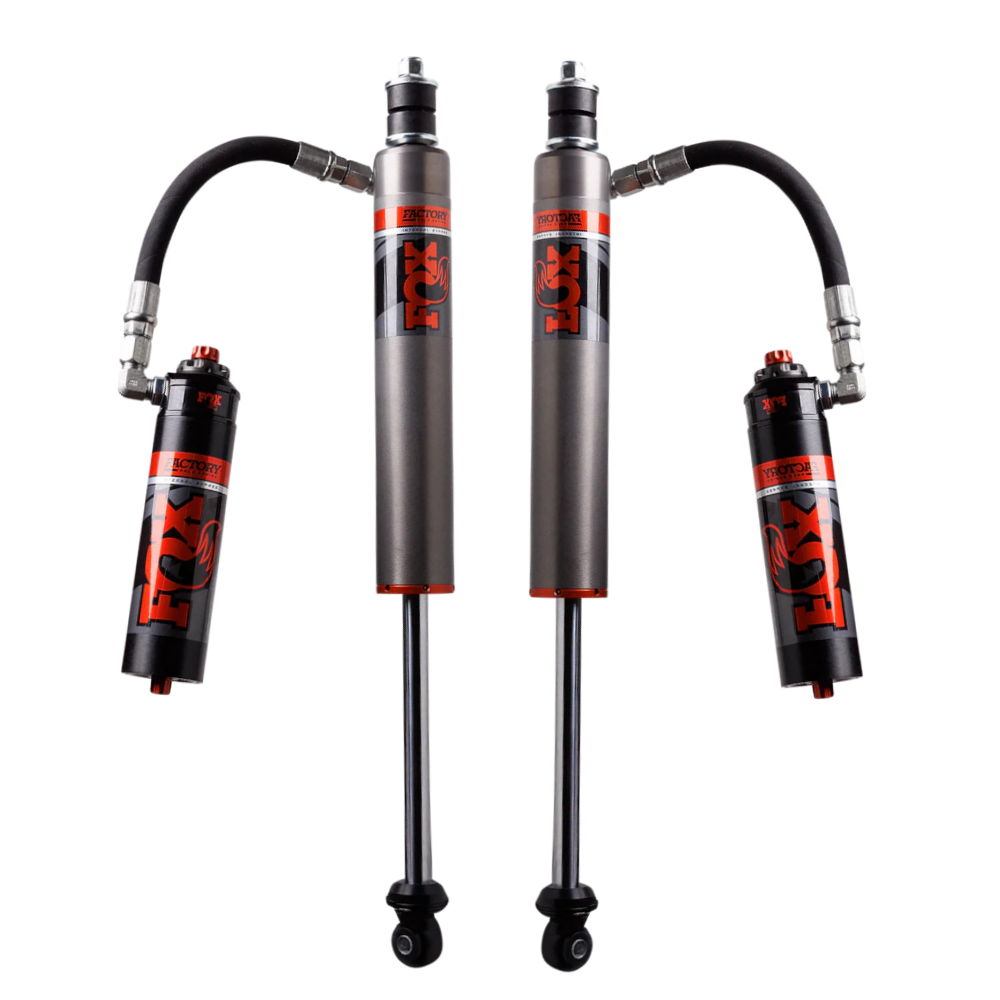

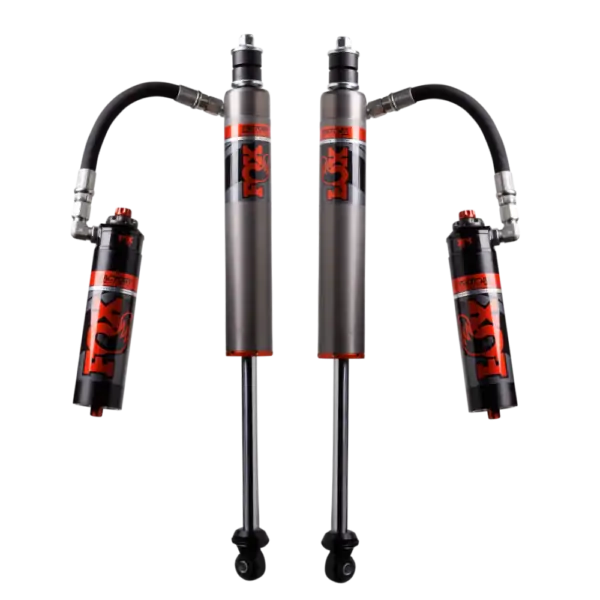

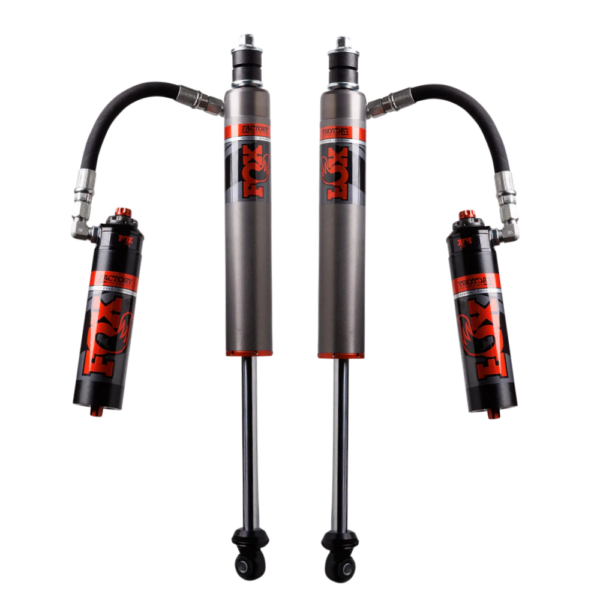

Fox Race 2.5 Internal Bypass Res. 2.5-4″ Front Lift Shocks for 2007-2018 Jeep Wrangler JK

Description
Fox Race 2.5 Internal Bypass Res. 2.5-4″ Front Lift Shocks for 2007-2018 Jeep Wrangler JK

Fox Race 2.5 Internal Bypass Res. 2.5-4 inches Front Lift Shocks for 2007-2018 Jeep Wrangler JK

Part Number: 883-26-109

Summary: The FOX Factory Race Series 2.5 Internal Bypass shocks offer a bolt-on solution for Jeep Wrangler JK owners seeking high-speed ready performance. Utilizing patented Internal Bypass technology, these shocks provide position-sensitive damping to maintain a comfortable ride while significantly increasing damping capacity in rough terrain. By allowing fluid to bypass the main piston in the ride zone and forcing it through the piston as the shock extends, this system delivers progressive force to control hard bottom-outs and harsh top-outs.

Features

• Internal Bypass Technology: Patented position-sensitive design provides multiple zones of damping control to ensure a comfortable ride with increased capacity through rough terrain.
• Dual Speed Compression (DSC) Adjuster: External reservoir-mounted dial allows for manual tuning of high and low-speed compression to ensure the vehicle is dialed in for specific loads and environments.
• Internal Floating Piston (IFP): Housed within the external reservoir, this piston separates shock oil from the nitrogen charge to ensure consistent damping and cooler operating temperatures.
• Type III Anodized Aluminum Body: 2.5-inch diameter 6061-T6 aluminum construction provides corrosion resistance and durability to ensure long-term wear protection.
• Redundant Sealing Pack: A three-stage system including a main seal, wiper seal, and scraper seal provides maximum protection to ensure internal components remain free of debris.

Technical Specifications

Fitment

• 2007-2018 Jeep Wrangler JK
• Note: Designed specifically for Jeep JK and JKU models with 2.5-4 inches of front lift.

What’s Included

• Sold Individually
• External Reservoir with DSC Adjuster

Why Choose This Product?

• Engineering Advantage: The Internal Bypass design allows for velocity and position-sensitive damping, which manages energy progressively as the shock moves through its travel, unlike standard shocks.
• Performance Benefit: Drivers experience increased support and confidence during high-speed operation through rugged terrain with the ability to manually tune the ride using the DSC adjuster.

Frequently Asked Questions

What does the DSC adjuster do?
The Dual Speed Compression (DSC) adjuster allows you to manually dial in your Jeep’s compression settings for different loads, environments, and driving styles.

How does Internal Bypass technology work?
It allows shock fluid to bypass the main piston through bleed holes in the normal ride zone for comfort, then forces fluid through the piston as the shock extends to prevent bottoming out.

What are the benefits of the external reservoir?
The external reservoir increases oil capacity and houses an Internal Floating Piston (IFP) to separate oil and nitrogen, which helps maintain consistent damping and keeps temperatures cool.
