Synergy Rear Adjustable Track Bar 0-6″ Lift for 2007-2018 Jeep Wrangler JK/JKU

Fitments:

• 2007 – 2018 Jeep Wrangler JK / JKU

Features:

• Made from high quality 1.50 inch x .250 wall DOM
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

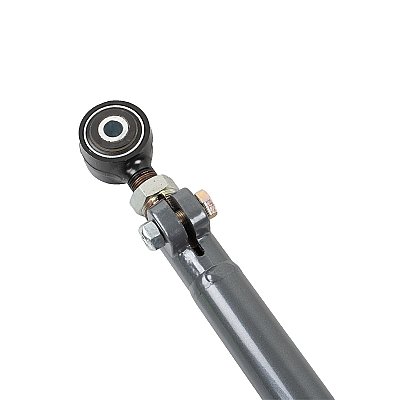

• Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of track bar length without removing mounting bolt

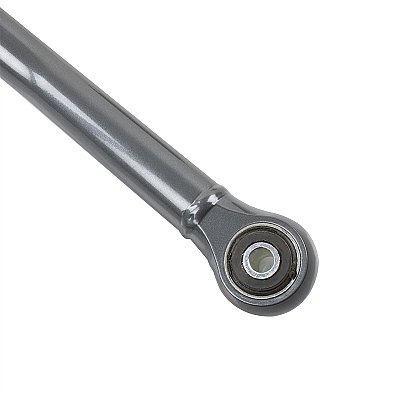

• Features Synergy Dual Durometer Bushings (DDB) with Teflon® bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools


Benefits:

• Bent to clear most aftermarket differential covers
• Retains factory track bar mounting bolts & hardware
• Allows centering of rear axle when running a suspension lift
• Will fit 0-7″ lifts (Rear track bar relocation bracket recommended for lifts over 2″. See Synergy Rear Track Bar Bracket 2-3" Lift Bolt-On Right-Hand-Drive for 2007-2018 Jeep Wrangler JK/JKU or Synergy Rear Track Bar Bracket 3"+ Lift Bolt-On for 2007-2018 Jeep Wrangler JK/JKU)
• Note: 8062 has been superseded by 8062-02

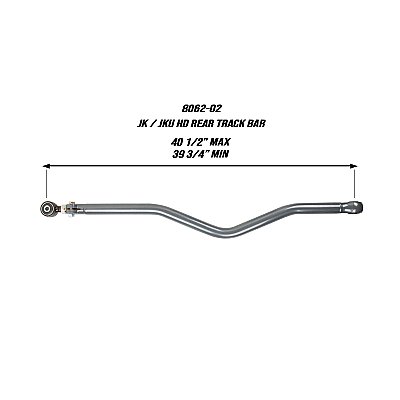

Min/Max Lengths:

Measured in a straight line from center of bolt hole to center of bolt hole

• MAX EXTENDED LENGTH: 40.500″
• MIN COLLAPSED LENGTH: 39.750″

Includes:

• (1) Grade 8 Pinch Bolts & Hardware
• (1) Synergy Double Adjuster Sleeve
• (1) Synergy Jeep JK Rear Track Bar

Notes:

• 8062-02 – The replacement adjustable joint is Synergy Dual Durometer Control Arm Bushings in Forged Housings for 2018+ Jeep Wrangler JL/2020+ Gladiator JT and the replacement bushings is 4327-01

8062-02 and 8068-RHD Installation Instructions
