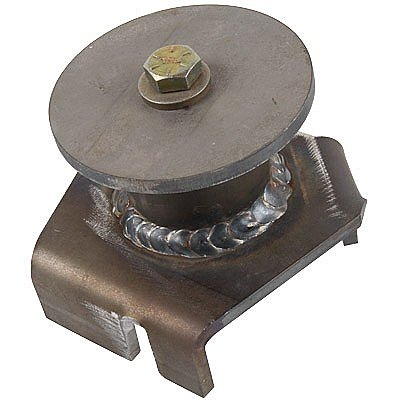

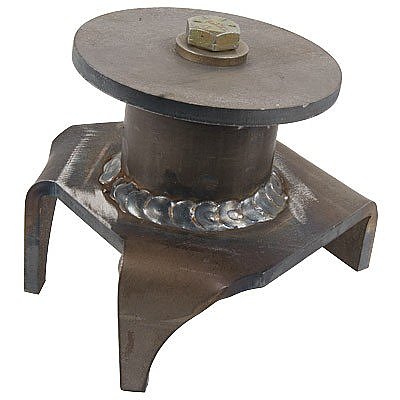

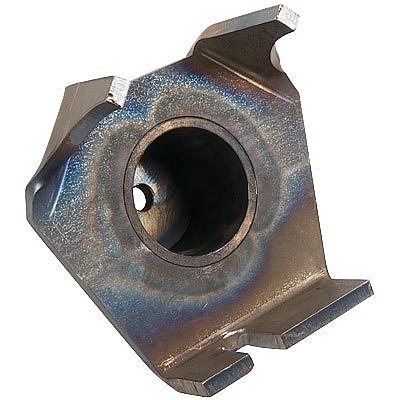

Synergy Rear Axle Spring Pad for 2007-2018 Jeep Wrangler JK

The Synergy Jeep JK / JKU Rear Axle Spring Pad is a weld-on option to correct the spring geometry after installing a suspension lift or aftermarket CV driveshaft. Proper spring geometry prevents the coil springs from bowing during compression, causing them to contact the track bar or track bar mount. This option also includes a coil retainer, which keeps the coil from popping off the lower spring pad during extreme articulation. Never chase a spring down an obstacle again!

Fitments:

Benefits:

• Keeps rear springs from bowing irregularly when suspension lifts or aftermarket CV driveshafts are used
• Fixes the common problem of the rear springs rubbing the rear trackbar or trackbar bracket when they bow during compression
• Provides a heavy duty coil retainer, preventing the spring from popping off the perch at full droop
• Heavy duty steel won’t bend or break and welds to the axle tube with ease

Features:

• Manufactured from heavy duty, USA made 3/16″ steel – precision laser cut and CNC bent for accurate fitment
• Coil retainer plate for coil retention
• Grade 8 hardware

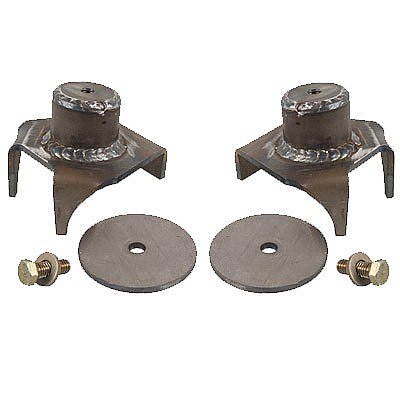

Includes:

Notes:

• Designed to fit stock JK rear housings (3 1/8″ axle diameter)
• For a bolt-in option, check out the Synergy Rear Coil Spring Correction Wedges for 2007-2018 Jeep Wrangler JK/JKU
• We recommend all cutting, grinding, and welding be done by an experienced fabricator / welder

Installation Instructions
