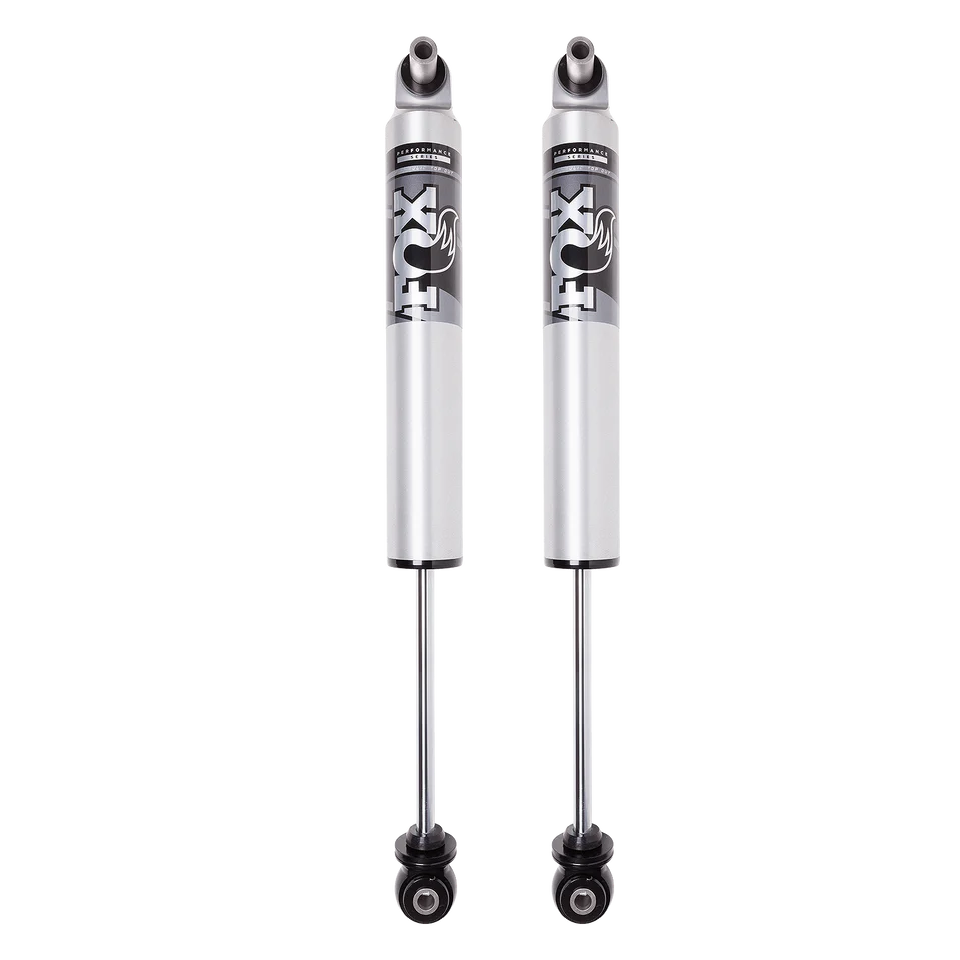

FOX 2.5 Performance Smooth Body HTO 3.5-4″ Front Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

Description
FOX 2.5 Performance Smooth Body HTO 3.5-4″ Front Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

FOX 2.5 Performance Smooth Body HTO 3.5-4 inches Front Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

Part Number: 987-24-014

Summary: The FOX 2.5 Performance Series HTO shocks are engineered for the 2018-2024 Jeep Wrangler JL equipped with 3.5-4 inches of front lift. These bolt-on shocks utilize position-sensitive technology and vehicle-specific valving to significantly improve both on-road comfort and off-road capability. Featuring an internal floating piston (IFP) and a 2.5-inch aluminum body, this system is designed to dissipate heat efficiently while providing consistent damping performance across varied terrain.

Features

• Hydraulic Top Out (HTO): A secondary shim stack provides position-sensitive rebound damping control to reduce harsh top-outs and increase comfort during full extension.
• Internal Floating Piston (IFP): The IFP design separates shock oil from high-pressure nitrogen to ensure optimized damping and fade-free performance.
• Impact Extruded 6061-T6 Aluminum Body: A 2.5-inch clear-anodized body provides high heat dissipation and corrosion resistance to ensure long-term durability.
• Hard Chrome Shaft: A 5/8-inch hard chrome plated heat-treated alloy steel shaft provides a smooth surface for consistent seal life.

Technical Specifications

Fitment

• 2018-2024 Jeep Wrangler JL
• Note: Fitment notes exactly as provided: Lift: 3.5-4 inches.

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of position-sensitive HTO technology allows for specialized rebound control that standard shocks cannot provide, specifically tuned for heavier aftermarket tires.
• Performance Benefit: Drivers experience a reduction in harsh “top-out” sensations and improved damping capacity, leading to a more controlled and comfortable ride on and off the pavement.

Frequently Asked Questions

What is HTO technology?
Hydraulic Top Out (HTO) technology is a position-sensitive rebound damping system that uses a secondary shim stack to slow down shock shaft speed, reducing harshness when the shock fully extends.

Do these shocks require modifications for installation?
These are a bolt-on application designed specifically for the 2018-2024 Jeep Wrangler JL with a 3.5-4 inches front lift.

How does the IFP benefit my Jeep?
The Internal Floating Piston (IFP) separates the oil from the nitrogen gas, which prevents aeration and allows the shock to provide consistent, optimized damping performance.
