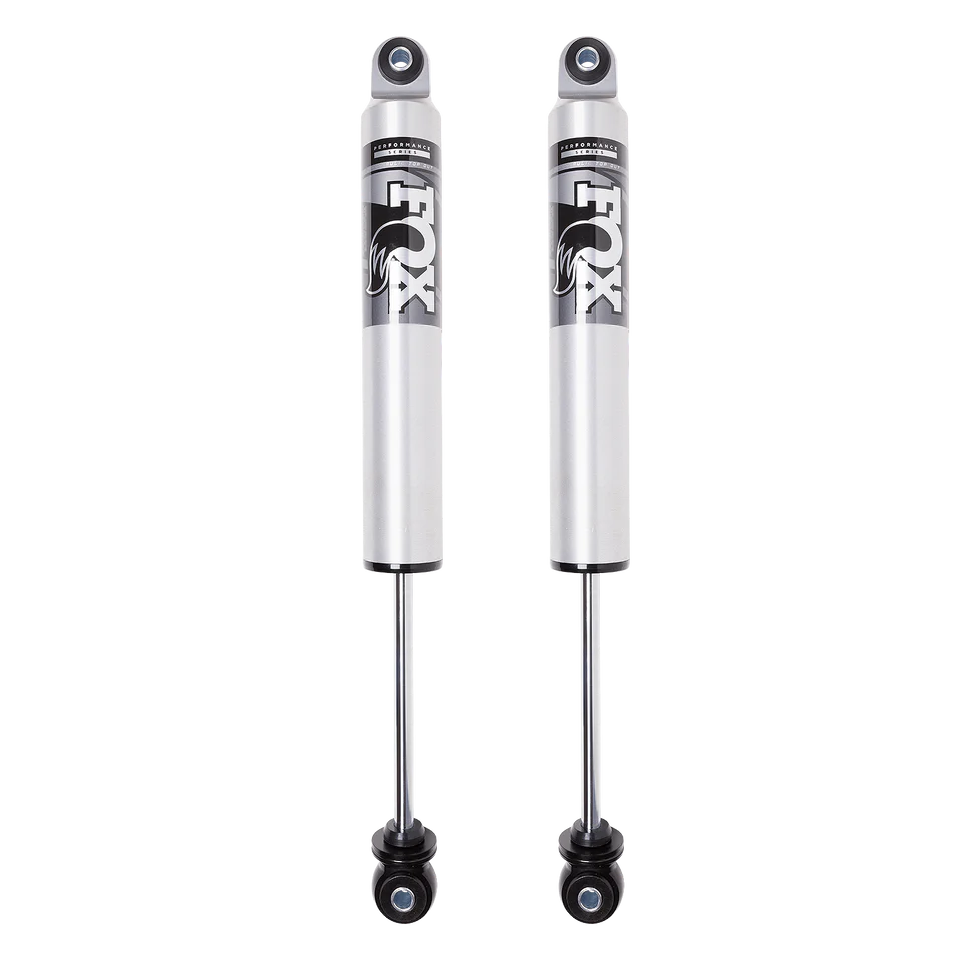

FOX 2.5 Performance Smooth Body HTO 3.5-4″ Rear Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

Description
FOX 2.5 Performance Smooth Body HTO 3.5-4″ Rear Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

FOX 2.5 Performance Smooth Body HTO 3.5-4 inches Rear Lift IFP Shocks for 2018-2024 Jeep Wrangler JL

Part Number: 987-24-015

Summary: The FOX 2.5 Performance Series HTO shocks are engineered for the 2018-2024 Jeep Wrangler JL, specifically designed to handle rear lift heights of 3.5 to 4 inches. These shocks feature position-sensitive technology and vehicle-specific valving to significantly improve both on-road comfort and off-road stability. By utilizing an internal floating piston (IFP) and a larger 2.5-inch aluminum body, these shocks provide superior heat dissipation and consistent damping performance under demanding conditions.

Features

• Hydraulic Top Out (HTO) Technology: A secondary shim stack provides position-sensitive rebound damping control to reduce harsh top-outs and increase comfort during high-extension events.
• Internal Floating Piston (IFP): The internal floating piston (IFP) separates shock oil from high-pressure nitrogen to eliminate oil aeration and optimize damping.
• Aluminum Shock Body: The 2.5-inch 6061-T6 aluminum body with Type II clear-anodized plating provides efficient heat dissipation and corrosion resistance to ensure sustained performance.
• High-Flow Damping: Velocity-sensitive damping technology provides consistent control across varying terrain to ensure a predictable ride quality.

Technical Specifications

Fitment

• 2018-2024 Jeep Wrangler JL
• Note: Lift: 3.5-4 inches

What’s Included

• Includes 2 Shocks

Why Choose This Product?

• Engineering Advantage: The integration of position-sensitive technology and Hydraulic Top Out (HTO) pistons allows the shock to manage rebound speed more effectively than standard monotube designs, especially when paired with heavier aftermarket tires.
• Performance Benefit: Drivers experience reduced harshness and improved control during full suspension extension, resulting in a more refined ride on both pavement and technical trails.

Frequently Asked Questions

How does HTO technology improve my ride?
Hydraulic Top Out (HTO) technology uses a secondary shim stack to slow down the shock shaft speed during rebound, which reduces harsh top-out sensations and increases comfort.

Are these shocks compatible with my 4-inch lift?
Yes, these shocks are specifically configured for Jeep Wrangler JL applications with 3.5 to 4 inches of rear lift.

What is the benefit of the 2.5-inch aluminum body?
The 2.5-inch diameter provides a larger piston for improved damping capacity, while the aluminum construction allows for faster heat dissipation and better corrosion resistance.
