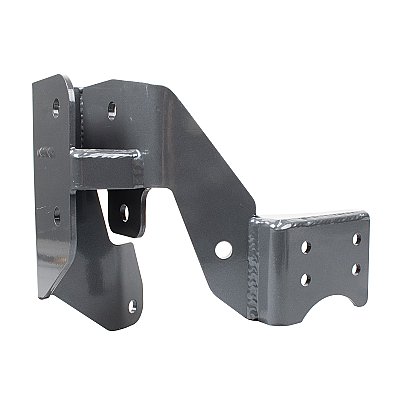

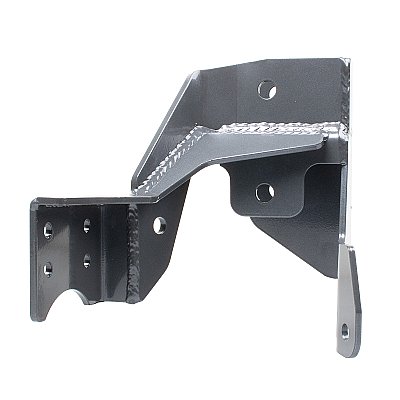

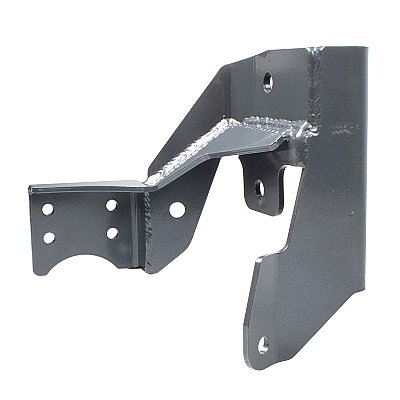

Synergy Rear Track Bar Relocation Bracket 2.5-6″ Lift for 2018+ Jeep Wrangler JL/JLU

• 2018+ Jeep Wrangler JL / JLU (All Models)

• Features:

  • Laser cut and CNC formed from a combination of 3/16 and 1/4 inch steel for the optimum combination of strength, durability, and performance
  • No U-bolts
  • No cutting or drilling required
  • Features an abrasion-resistant powder coat finish for maximum durability and corrosion resistance
  • 100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools


Benefits:

• Centers rear axle without requiring a new track bar for 2-3 inch lifts
• Improves rear track bar geometry to reduce the rear end wag experienced with a steep track bar angle
• Reduces body roll and improves handling
• Prevents interference between the rear driveshaft and gas tank skid when used with long travel shocks
• Raises rear track bar mounting location on the axle by 3.25 inches to raise the vehicle’s roll center
• Ties into stock track bar bracket in multiple locations for improved strength and durability

Includes:

• (1) Axle side raised rear track bar bracket (mail)
• (1) Axle side raised rear track bar bracket U-bolt Mount
• (1) U-bolt 1.58″ radius x 4.38″
• (1) Track bar bushing sleeve
• (1) Hardware kit

Notes:

• Supersedes 8856-01
• Must run a minimum 2 inches of bump stop spacing
• Adjustable rear track bar recommended to be added for lifts 3 inches and taller
• Eco-Diesel models require axle breather to be relocated or bracket to be welded on instead of bolted on
