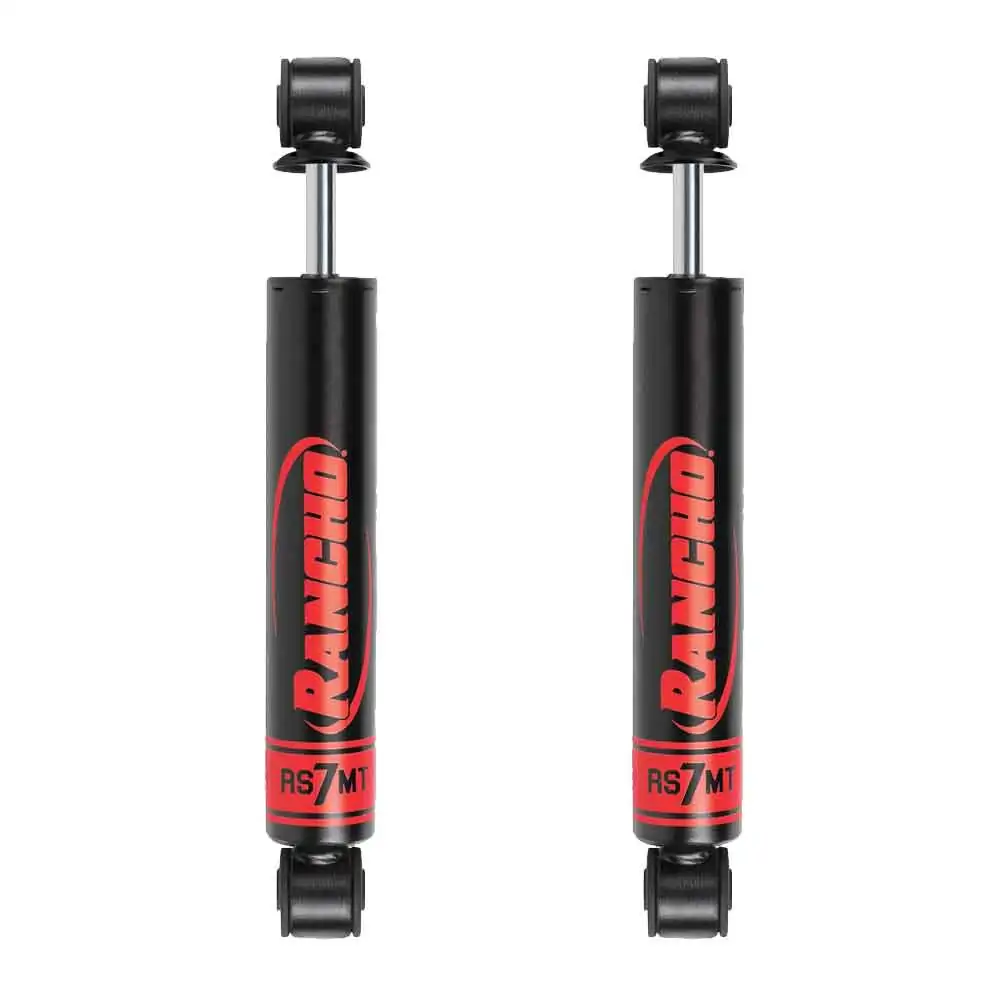

Rancho RS7MT 4.5″ Rear Lift Shocks for 2018-2024 Jeep Wrangler JL 4WD

Description
Rancho RS7MT 4.5″ Rear Lift Shocks for 2018-2024 Jeep Wrangler JL 4WD

Rancho RS7MT 4.5″ Rear Lift Shocks for 2018-2024 Jeep Wrangler JL 4WD

Part Number: RS77068

Summary: The Rancho RS7MT series is engineered for high-performance Jeep Wrangler JL applications requiring precise handling and rapid heat dissipation. These monotube shocks are specifically configured for 4.5 inches of rear lift, providing the necessary travel for extreme off-road articulation. By utilizing a high-pressure nitrogen gas charge and a floating dividing piston, the RS7MT eliminates oil aeration and fade, ensuring consistent damping performance during aggressive trail use or high-speed desert transitions.

Features

• Monotube Design: A 2.0-inch diameter body with a high-pressure nitrogen charge provides rapid heat dissipation to ensure consistent damping under extreme off-road conditions.
• Internal Floating Piston (IFP): The large bore floating dividing piston separates the gas and oil to provide zero aeration to ensure fade-free performance on washboard terrain.
• Hardened Nitro-Coated Rod: A 14mm piston rod with specialized coating provides superior corrosion resistance to ensure long-term seal integrity in harsh environments.
• Vehicle-Specific Valving: Custom application-specific tuning provides optimized rebound and compression to ensure a controlled ride for lifted Jeep JL geometries.

Technical Specifications

Fitment

• 2018-2024 Jeep Wrangler JL 4WD
• Note: Aftermarket Driveshaft(s) Required due to increased suspension travel.

What’s Included

• Includes 2 Shocks
• Installation Hardware
• Protective Dust Boots

Why Choose This Product?

• Engineering Advantage: Rancho’s monotube architecture offers a faster response rate compared to traditional twin-tube shocks, critical for maintaining tire contact on technical terrain.
• Performance Benefit: Drivers experience significantly reduced body roll and improved “bottom-out” control, providing a more stable and confident feel both on and off-road.

Related Products

RS5000X (Front):

RS5000X (Rear):

Front Only (Same Series):

RS90000XL (Rear):

RS5000X (Kit):

RS90000XL (Front):

RS90000XL (Kit):

RS7MT (Kit):

Frequently Asked Questions

Do these shocks provide the 4.5 inches of lift?
No, these shocks do not create lift. They are specifically valved and sized to be used on Jeep Wrangler JL models already equipped with a 4.5-inch rear lift kit.

Why are aftermarket driveshafts required for these shocks?
The 31.19-inch extended length provides significant travel. At full droop, the factory driveshaft angles typically exceed their operating limit, necessitating upgraded shafts to prevent binding.

What is the benefit of the RS7MT’s monotube design over the RS5000X?
The RS7MT’s monotube design features a single-wall construction and a dividing piston, which allows for better cooling and more precise valving response during high-frequency cycles compared to a twin-tube shock.
