Synergy Heavy Duty Front Drag Link for 97-06 Jeep Wrangler TJ/LJ, 84-01 XJ, 93-98 ZJ, 86-92 MJ

Fitment:

• 1997-2006 Jeep Wrangler (TJ)
• 2004-2006 Jeep Wrangler (LJ)
• 1987-2001 Jeep Cherokee (XJ)
• 1993-1998 Jeep Grand Cherokee (ZJ)
• 1987-1992 Jeep Comanche (MJ)

Requirements and Fitment:

• Wheel back spacing requirements:
  – 15″ wheel – max 3.75″
  – 16″ wheel – max 4.00″
  – 17″ wheel – max 4.50″
  – Minimum of 2″ front bump stop spacers required
• Fits vehicles with 2-6″ of lift
  2-4″ of lift, must use stock pitman arm
  4.5″-6″ of lift, must use drop pitman arm
• Drag Link is bent to clear factory axle brackets and is compatible from stock to 6″ lifted vehicles. (Vehicles over 6″ of lift will require a drop pitman arm for compatibility)
• IMPORTANT: Designed to be used with 8121-01 Tie Rod only

Features:

• Synergy Double Adjuster Sleeve: allows adjustment of Drag Link length without removing it from the vehicle.
• Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
• 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools.

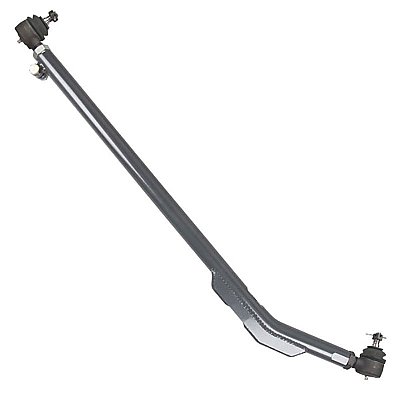

• Drag Link is made from 1-3/8″ 1018 Solid Bar

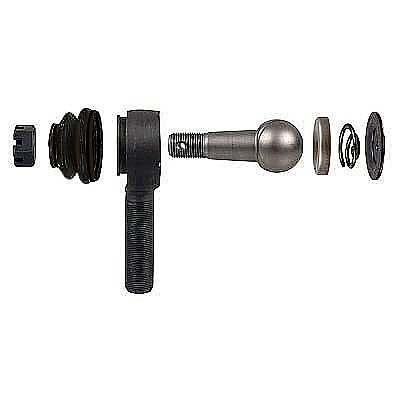

• Comes with Synergy HD metal on metal tie rod ends, 4135-L and 4137-L (single plane tre)
• Features our Double Adjuster Sleeve Assembly allowing adjustment of Drag Link length without removal from vehicle
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Strongest Drag Link on the market!

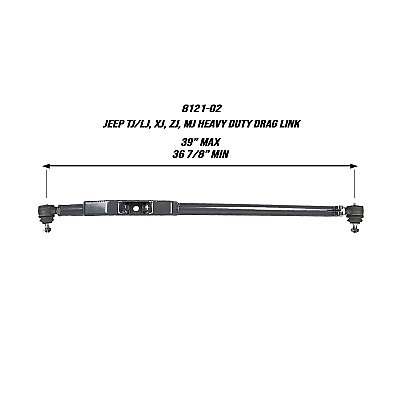

Min/Max Lengths:
Measured in a straight line from Zerk fitting to Zerk fitting

• Tie Rod – Max extended length: 43.750″
• Tie Rod – Min collapsed length: 41.500″
• Drag Link – Max extended length: 39″
• Drag Link – Min collapsed length: 36.875″

Installation Instructions
