Skyjacker 4″ Coils Lift Kit for 1997-2002 Jeep Wrangler TJ

Description
Skyjacker 4″ Coils Lift Kit for 1997-2002 Jeep Wrangler TJ

Skyjacker 4″ Coil Lift Kit with ADX 2.0 Remote Reservoir Shocks for 1997-2002 Jeep Wrangler TJ

SKU: TJ401BKXLT

Key Specs

• Lift Height: 4 in.
• Max Tire Size: 34×12.50
• Recommended Wheel Size: 15-20 x 8
• Recommended Backspacing: 3.75
• UPC: 803696276625

What This Kit Does

This Skyjacker suspension system is built to improve handling and increase suspension articulation on your Wrangler TJ, delivering stronger on-road control with significantly more off-road capability. On a TJ, coil springs and shocks are the primary drivers of ride quality and suspension performance – and this kit upgrades both with purpose-built components.

Dual-Rate Long Travel Coil Springs

Skyjacker engineered a 2-stage, dual-rate long travel coil spring with progressive spring-rate behaviour:

• Stage 1 (Flex Rate): Designed for comfort and maximum articulation at full droop, helping keep the coils seated in the upper mount/bucket and keeping tires planted on uneven terrain.
• Stage 2 (Ride Rate): Engages after additional compression beyond the Flex Rate, providing improved control and a smoother ride as the suspension loads up.

ADX 2.0 Remote Reservoir Shocks

Shocks play a key role in keeping your tires in contact with the terrain. Skyjacker ADX 2.0 Adventure Series remote reservoir aluminum monotube shocks bring race-inspired tech with a full-displaced valving system that performs from higher-speed off-road running down to low-speed crawling.

The external remote reservoir uses an Internal Floating Piston (IFP) to separate nitrogen gas from shock oil, reducing foaming (cavitation) and helping maintain damping consistency under heat and repeated impacts.

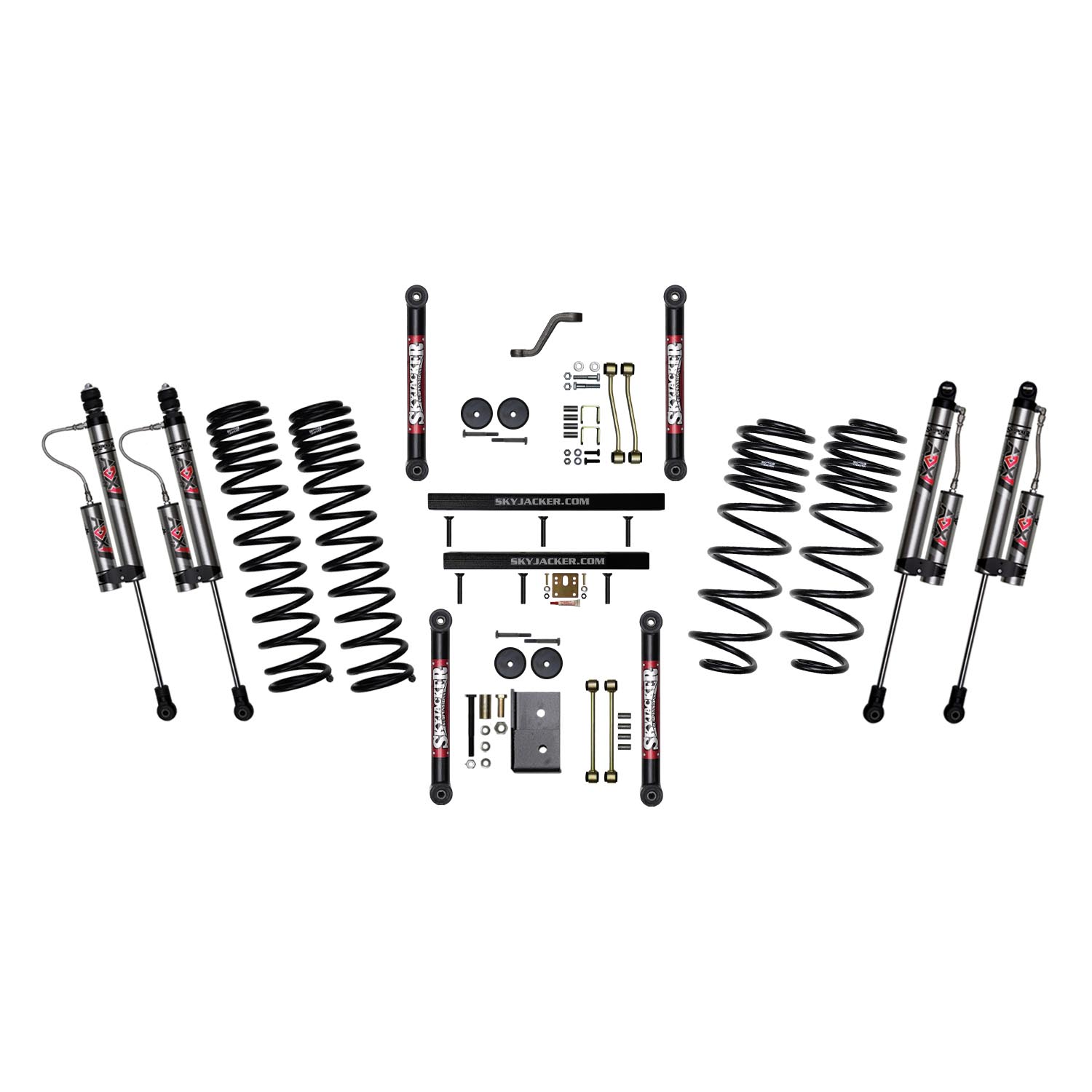

Included Components

This kit includes a complete set of supporting hardware to correct geometry and support the added travel:

• 2-stage dual-rate long travel coil springs
• Skyjacker ADX 2.0 remote reservoir monotube shocks
• Standard front and rear lower control link arms (replacement lower links)
• Drop pitman arm
• Transfer case lowering kit
• Front and rear bump stop spacers
• Extended-length sway bar end links (front and rear)
• Rear track bar lower axle mount bracket
• Required bushings and high-grade mounting hardware

Compatibility Notes

• Designed for 1997-2002 Jeep Wrangler TJ.
• Works with OEM Electronic Stability Control (ESC) system.
