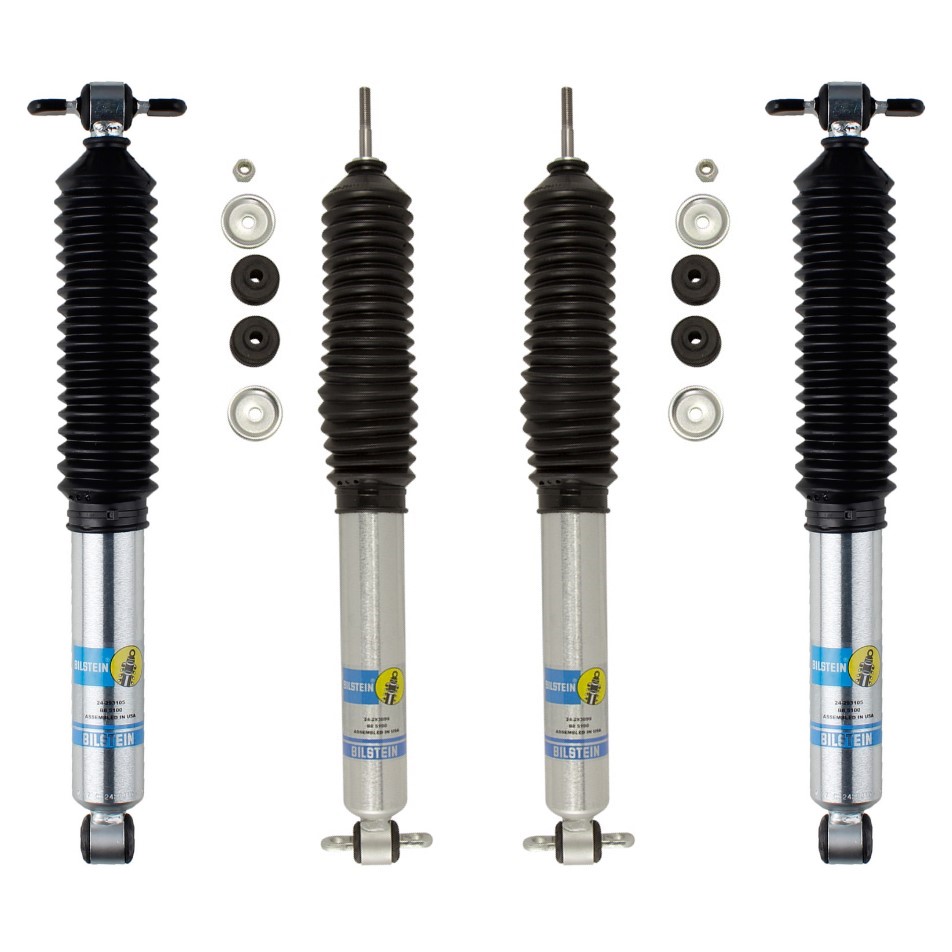

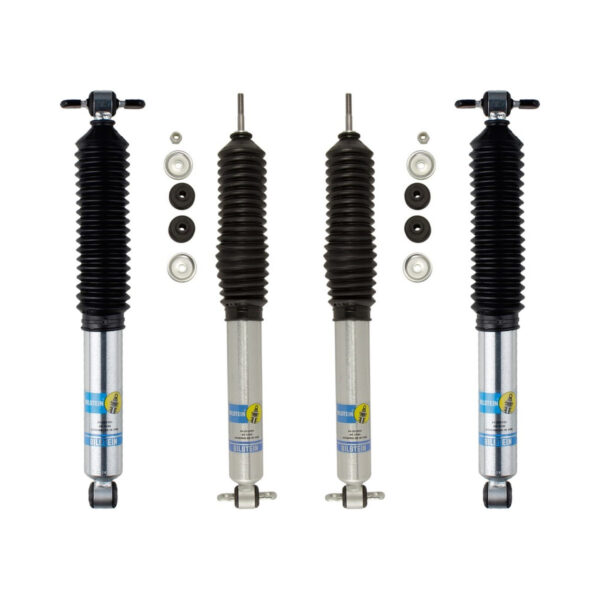

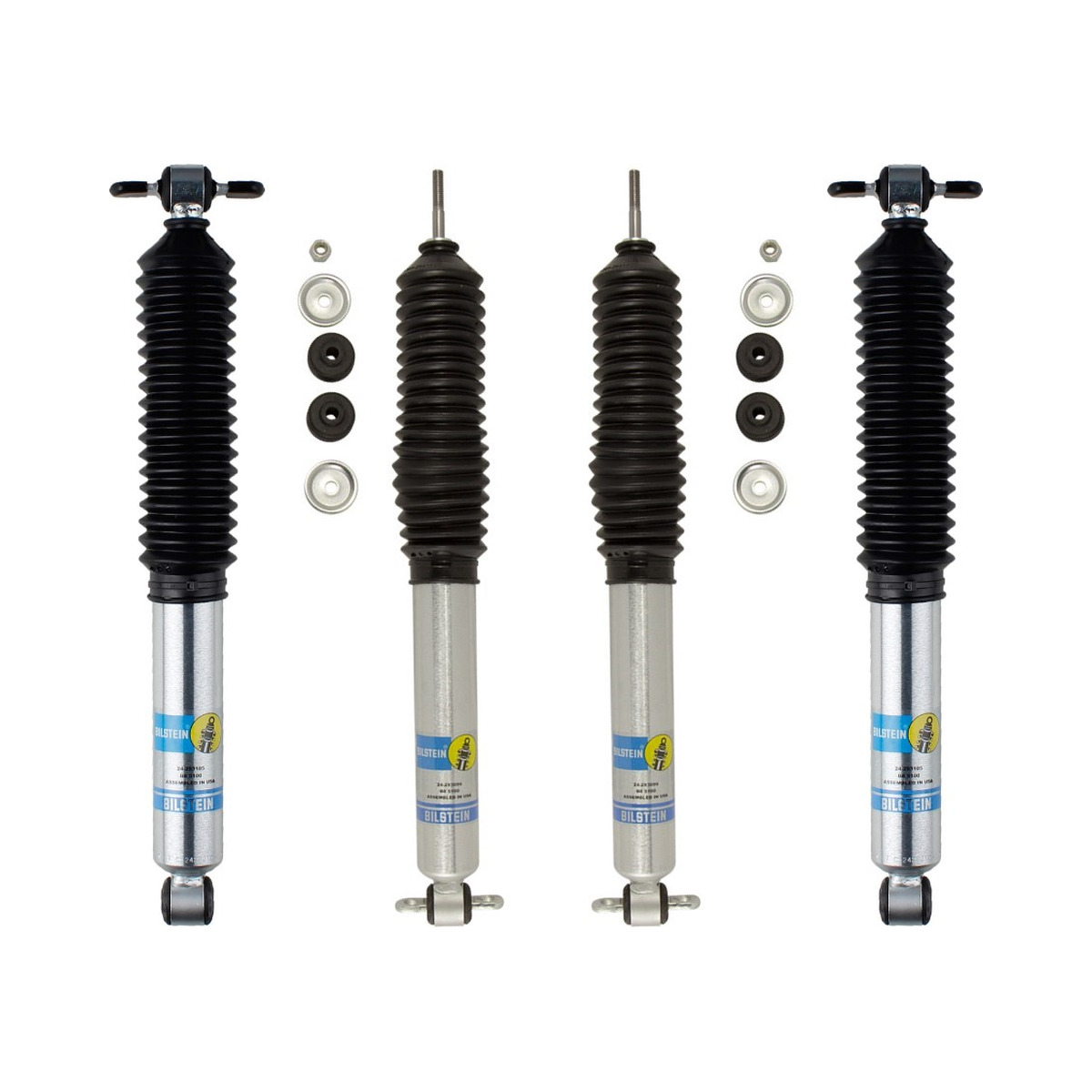

Bilstein 5100 0-2″ Front and 0-2″ Rear Lift Shocks for 1997-2006 JEEP Wrangler TJ 4WD
Sale!
Description
Bilstein 5100 0-2″ Front and 0-2″ Rear Lift Shocks for 1997-2006 JEEP Wrangler TJ 4WD
1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 JEEP Wrangler (TJ) 4WD Bilstein 5100 0-2″ Front & 0-2″ Rear Lift Shocks
Front Shocks:
Series: 5100
Front Collapsed Length (IN): 13.06
Front Extended Length (IN): 20.94
Part Number: 24-293099 (old: 24-186810)
Front Shocks Fitment Notes: Zinc plated black boot B8 5100 Series
Rear Shocks:
Series: 5100
Rear Collapsed Length (IN): 12.81
Rear Extended Length (IN): 19.96
Part Number: 24-293105
Rear Shocks Fitment Notes: Zinc plated blue boot B8 5100 Series
Fitment: 97-’06 JEEP Wrangler (TJ) 4WD Bilstein 5100 0-2″ Front & 0-2″ Rear Lift Shocks
Important fitment notes: (TJ)
Includes 4 Shocks
Questions and answers of the customers
-
would these be a good fit on a 2016 jeep Wrangler with stock shocks, no lift kit?
-
0 votesQ would these be a good fit on a 2016 jeep Wrangler with stock shocks, no lift kit?A For 2016 jeep Wrangler and stock lift we can offer https://www.suspensionlifts.com/shop/jeep/wrangler-jk/jk-shocks/bilstein-4600-front-rear-shocks-07-17-jeep-wrangler-jk-4wd/
Do these shocks fit the Rubicon model?
-
0 votesQ Do these shocks fit the Rubicon model?A yes, will fit
Will these fit my stock 2001 Jeep Wrangler Sport?
-
0 votesQ Will these fit my stock 2001 Jeep Wrangler Sport?A Yes, these shocks fit the Sport, SE and Sahara trims.
Do I need to buy 2 inch lift springs with these also
-
0 votesQ Do I need to buy 2 inch lift springs with these alsoA these shocks will fit from stock height up to 2'' lift
Does this fit a stock 2000 jeep tj ? Do i have to change out any of the springs or drop the transfer case with these shocks
-
0 votesQ Does this fit a stock 2000 jeep tj ? Do i have to change out any of the springs or drop the trans...... Read moreA will fit from stock height ( 0'' lift) to 2'' lift Nothing more is needed
I already own a full set of these Bilstein shocks for my 97 TJ, with a two inch lift. I’m going to replace the coil springs with new Old Man Emu 2” or 2.5” springs, front and rear, as part of a frame change. Will these shocks still work with a 2.5” coil spring lift?
I have part #’s 24-186810 and 24-186827.
Love them, btw.
Thanks.
Jeff Horan
-
0 votesQ I already own a full set of these Bilstein shocks for my 97 TJ, with a two inch lift. I’m going t...... Read moreA You can try 2.5'' but not higher
Can I get these without the bar pins?
-
0 votesQ Can I get these without the bar pins?A Unfortunately no
I have a 2"lift on my TJ Jeep and the front shocks have about 18" from top flange to lower flange mounting of the shock in rest position. Is the 5100 with for a 2"lift the correct shock?
I have about 3" to the lower bump stop.
-
0 votesQ I have a 2"lift on my TJ Jeep and the front shocks have about 18" from top flange to lower flange...... Read moreA Please check your shocks fully extended length to be 100% sure FRONT Extended Length (IN): 21.18 Inch Compressed Length (IN): 13.06 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Stem Lower Mounting Style: Bar Pin REAR Extended Length (IN): 20.08 Inch Compressed Length (IN): 12.81 Inch Rod Diameter (IN): 1.81 Inch Upper Mounting Style: Bar Pin Lower Mounting Style: Eyelet
